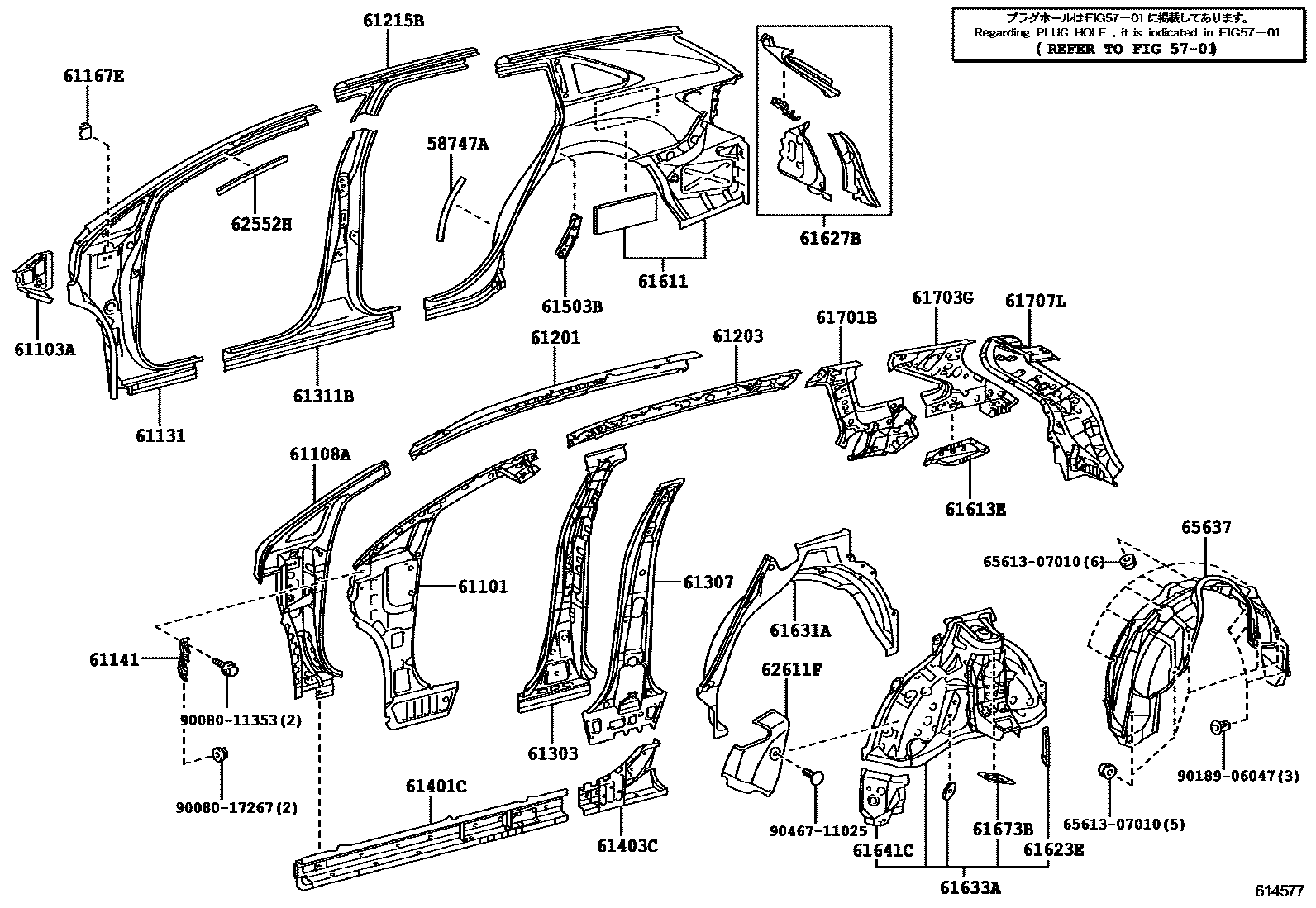

SIDE MEMBER
5701HOLE PLUG
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61141GUSSET, FRONT PILLAR UPPER CORNER, RH
61167EBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61611PANEL, QUARTER, RH
61613EPANEL, QUARTER, INNER RH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
62552HPAD, PILLAR, NO.1 RH
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
65637LINER, REAR WHEEL HOUSE, RH
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9008011353
main90080-11353
9008017267
main90080-17267
9018906047
main90189-06047
9046711025
main90467-11025
36 parts on this diagram · 2 diagrams in section
