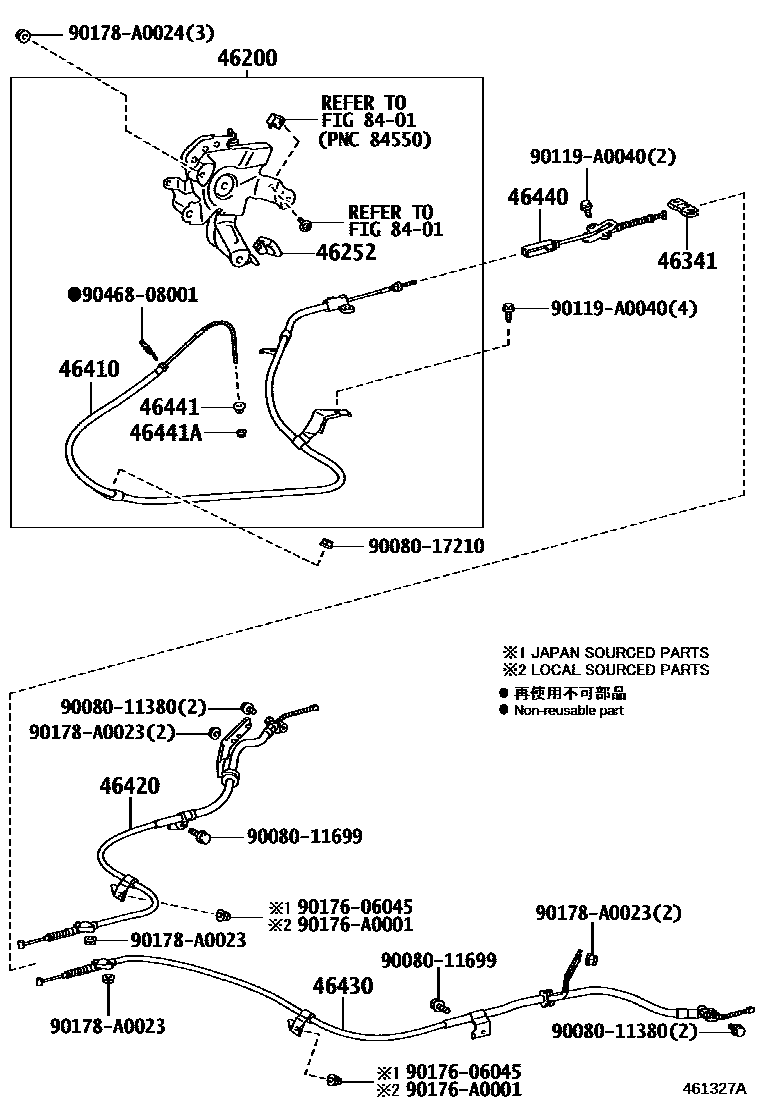

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0T011iAGV1#201303-201506

46252PAD, PARKING PEDAL

main46252-0T010iAGV1#201303-201506

46341EQUALIZER, PARKING BRAKE

main46341-48010iAGV1#201303-201506

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0T010iAGV1#201303-201506

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0T010iAGV1#201303-201506

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0T010iAGV1#201303-201506

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-0T010iAGV1#201303-201506

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAGV1#201303-201506

46441ANUT, WIRE ADJUSTING, NO.2

main90080-17209iAGV1#201303-201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011380

main90080-11380

9008011699

main90080-11699

9008017210

main90080-17210

90119A0040

main90119-A0040

9017606045

main90176-06045

90176A0001

main90176-A0001

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9046808001

main90468-08001

19 parts on this diagram · 2 diagrams in section
