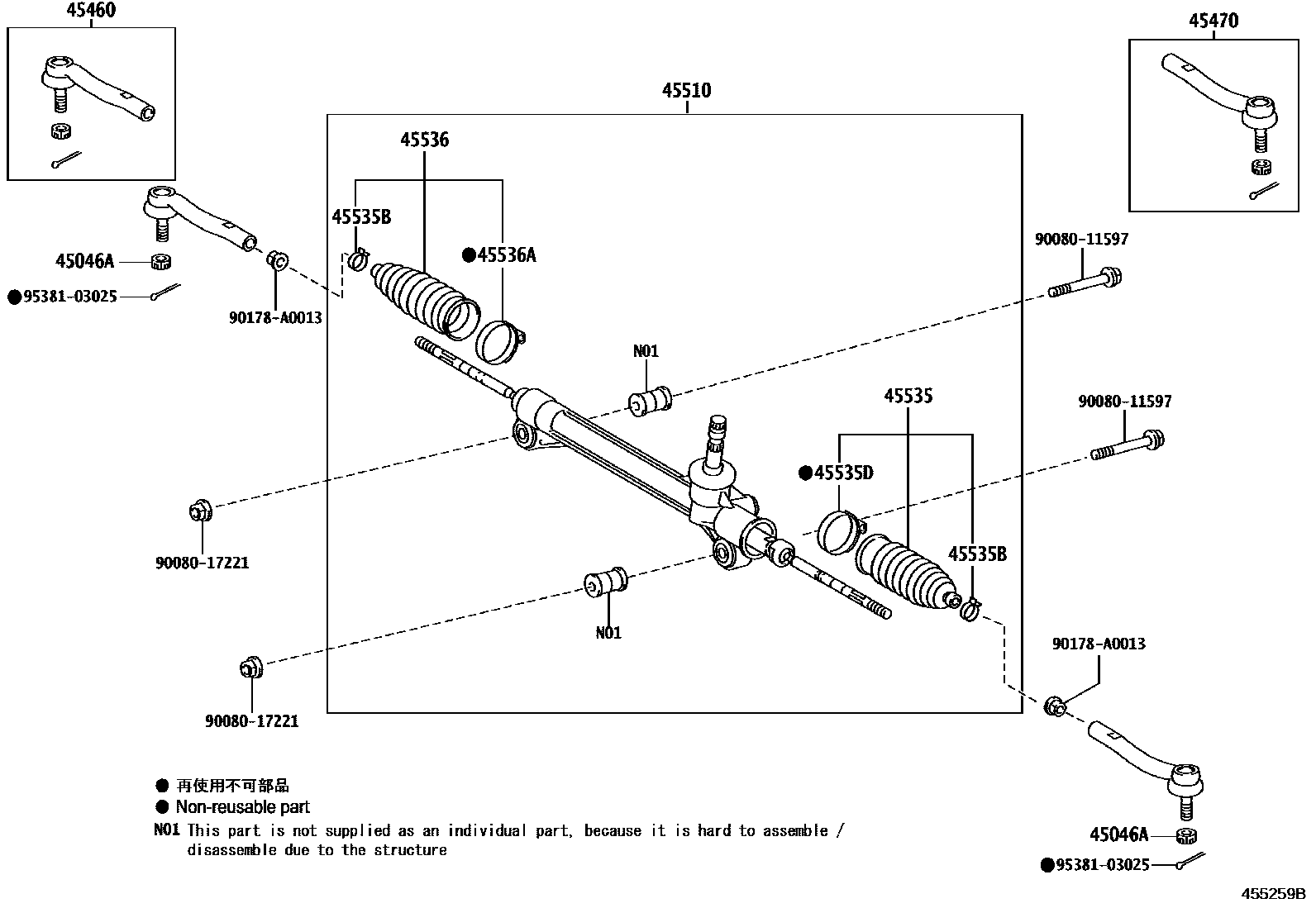

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iAGV1#201303-201506

45460ROD ASSY, TIE, RH

main45460-09180iAGV1#201303-201506

45470ROD ASSY, TIE, LH

main45470-09020iAGV1#201303-201506

45510GEAR ASSY, STEERING

main45510-0T020iAGV1#201303-201506

45535BOOT, STEERING RACK, NO.1

main45535-09210iAGV1#201303-201506

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0T010×2iAGV1#201303-201506

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0T010iAGV1#201303-201506

45536BOOT, STEERING RACK, NO.2

main45535-09210iAGV1#201303-201506

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0T010iAGV1#201303-201506

9008011597

main90080-11597

9008017221

main90080-17221

90178A0013

main90178-A0013

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
