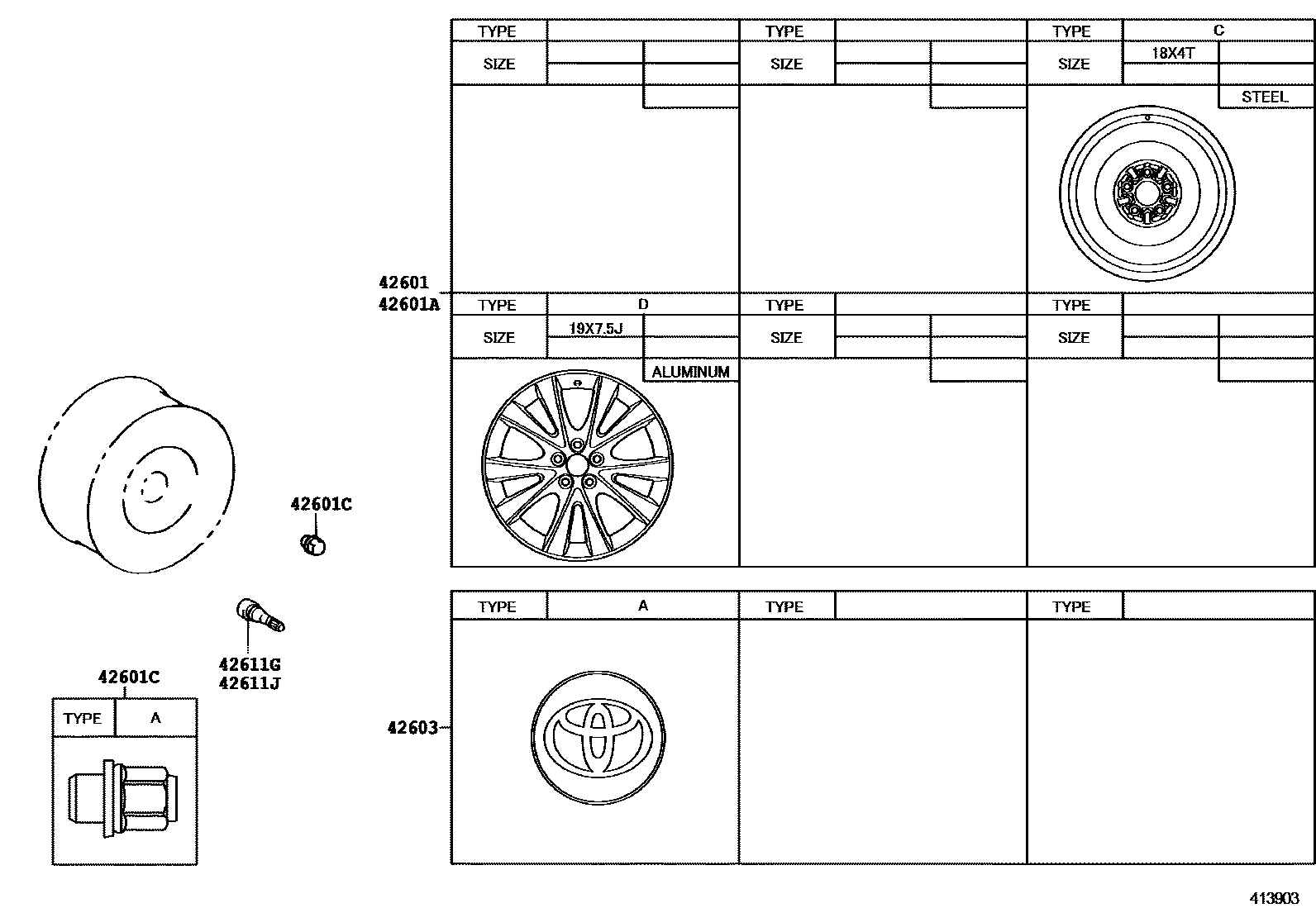

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0T050×4supersedes 42611-0T040iAGV1#201303-201506

19X7.5J,#,RUSSIA SPEC,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0T030iAGV1#201303-201506

18X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001×20iAGV1#201303-201506

TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12750×4supersedes 42603-08030iAGV1#201303-201506

*ALU,RUSSIA SPEC,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006×4iAGV1#201303-201506

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAGV1#201303-201506

6 parts on this diagram · 1 diagram in section
