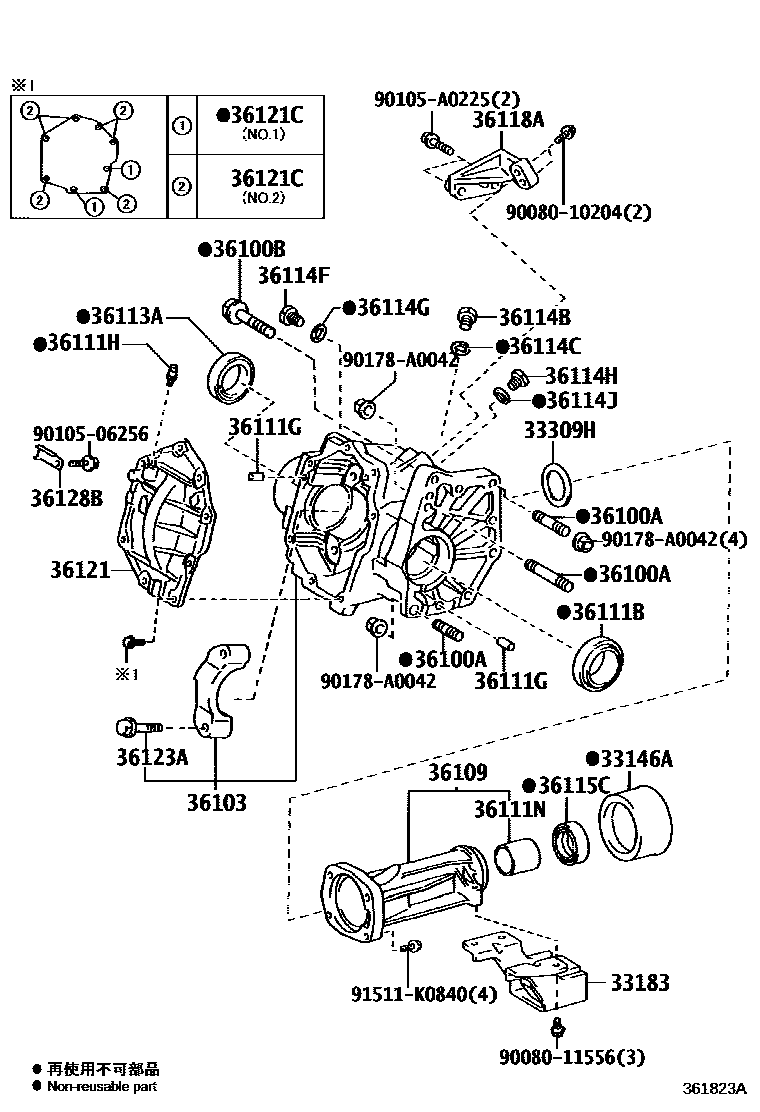

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
33309HWASHER, TRANSFER OUTPUT SHAFT
T=2.10,MARK AA
T=2.12,MARK AC
T=2.14,MARK BB
T=2.16,MARK CA
T=2.18,MARK CC
T=2.20,MARK DB
T=2.22,MARK EA
T=2.24,MARK EC
T=2.26,MARK FB
T=2.28,MARK GA
T=2.30,MARK GC
T=2.32,MARK HB
T=2.34,MARK JA
T=2.36,MARK JC
T=2.38,MARK KB
T=2.40,MARK LA
T=2.42,MARK LC
T=2.44,MARK MB
T=2.46,MARK NA
T=2.48,MARK NC
T=2.50,MARK PB
T=2.52,MARK QA
T=2.54,MARK QC
T=2.00,MARK ZA
T=2.02,MARK ZB
T=2.04,MARK ZC
T=2.06,MARK ZD
T=2.08,MARK ZE
T=2.56,MARK RA
T=2.58,MARK RB
T=2.60,MARK RC
T=2.62,MARK SA
T=2.64,MARK SB
T=2.66,MARK SC
T=2.68,MARK TA
T=2.70,MARK TB
T=2.72,MARK TC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=19 & 19,L=47,(L)
S=22 & 22,L=69
S=19 & 19,L=47,(J)
S=30 & 22,L=64
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX53-35
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=16,OD=8
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111NBUSH (FOR TRANSFER CASE)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
NO.1
NO.2
36123ABOLT, DIFFERENTIAL BEARING CAP
36128BDEFLECTOR, BREATHER OIL
9008010204
main90080-10204
9008011556
main90080-11556
9010506256
main90105-06256
90105A0225
main90105-A0225
90178A0042
main90178-A0042
91511K0840
main91511-K0840
30 parts on this diagram · 3 diagrams in section
