OIL COOLER & TUBE (ATM)

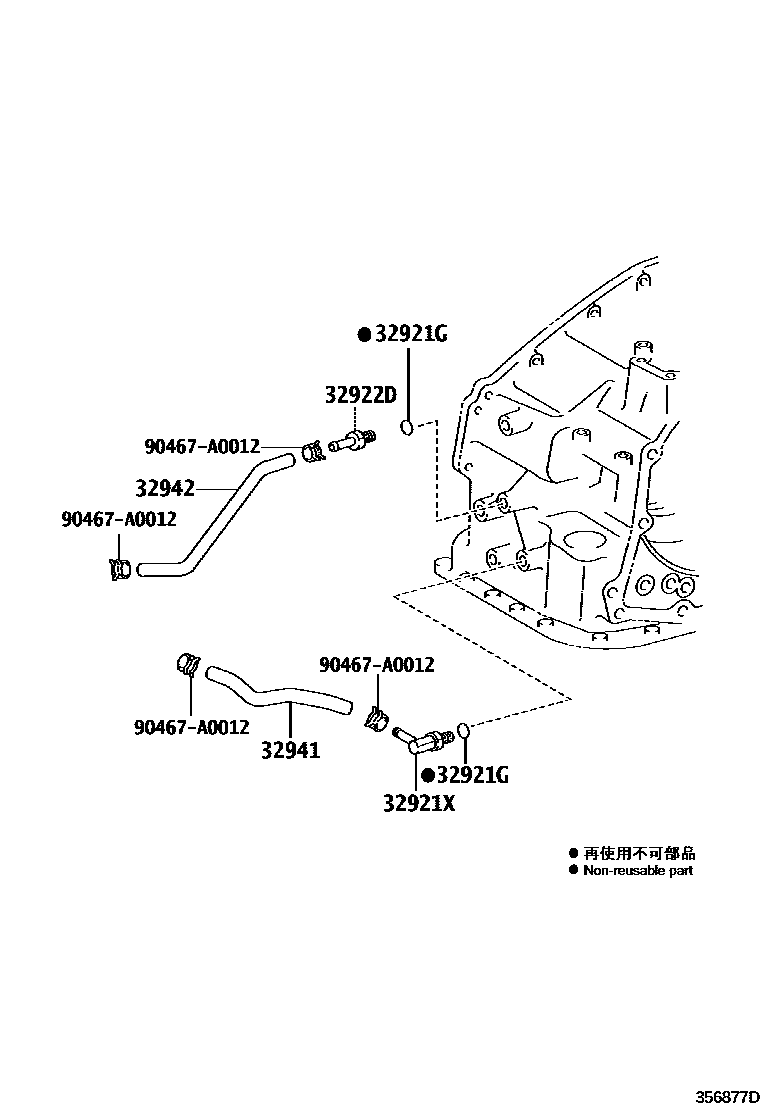

Parts diagram

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031×2i201303-201308

main90301-A0022×2i201308-201506

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027i201308-201505

main90407-14032i201303-201308

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027i201303-201505

32941HOSE, OIL COOLER INLET, NO.1

main32941-06060i201303-201308

main32941-07020i201308-201506

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0T011i201303-201308

main32942-0T020i201308-201506

90467A0012

main90467-A0012

6 parts on this diagram · 1 diagram in section
