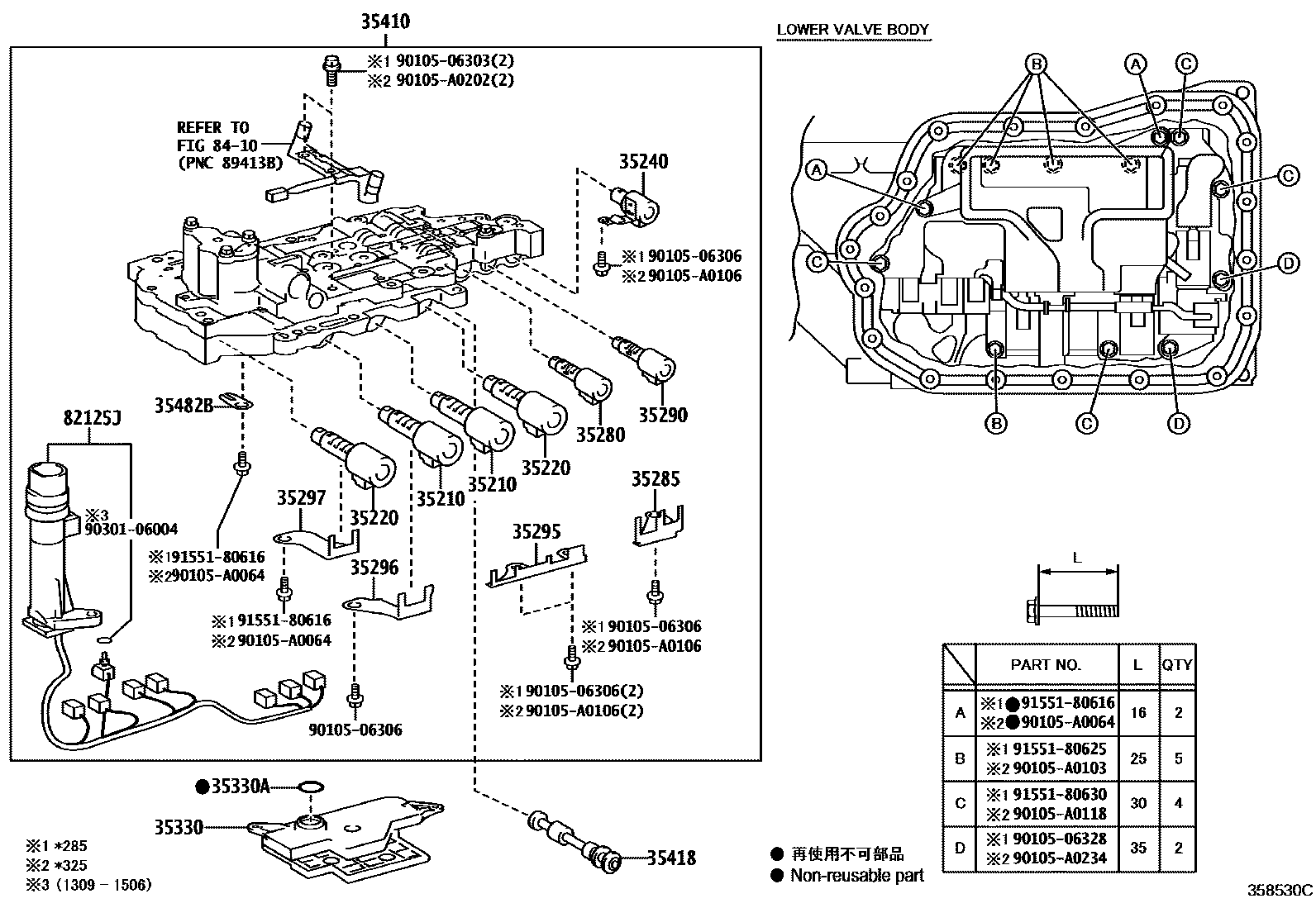

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E,U760F 0002 1U760E,U760F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030×2iAGV1#201410-201506

main35210-73010×2iAGV1#201303-201409

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-48020×2iAGV1#201410-201506

main35220-73010×2iAGV1#201303-201409

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iAGV1#201303-201506

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iAGV1#201303-201506

35285PLATE, SOLENOID LOCK

main35285-06010iAGV1#201308-201506

main35285-73010iAGV1#201303-201308

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iAGV1#201303-201506

35295PLATE, SOLENOID LOCK, NO.2

main35295-06010iAGV1#201308-201506

main35295-73010iAGV1#201303-201308

35296PLATE, SOLENOID LOCK, NO.3

main35296-06010iAGV1#201308-201506

main35296-73010iAGV1#201303-201308

35297PLATE, SOLENOID LOCK, NO.4

main35297-06010iAGV1#201308-201506

main35297-73010iAGV1#201303-201308

35330STRAINER ASSY, VALVE BODY OIL

main35330-0R010iAGV1#201308-201506

main35330-73010iAGV1#201303-201308

35330ARING, O (FOR OIL STRAINER)

main90301-27015iAGV1#201303-201308

main90301-A0026iAGV1#201308-201506

35410BODY ASSY, TRANSMISSION VALVE

main35410-0R010iAGV1#201308-201506

main35410-33250iAGV1#201303-201308

35418VALVE, MANUAL

main35418-73010iAGV1#201303-201506

35482BCLAMP, TEMPERATURE SENSOR

main35482-06020iAGV1#201308-201506

main35482-73010iAGV1#201303-201308

82125JWIRE, TRANSMISSION

main82125-73010iAGV1#201303-201506

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0106

main90105-A0106

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0234

main90105-A0234

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

29 parts on this diagram · 2 diagrams in section
