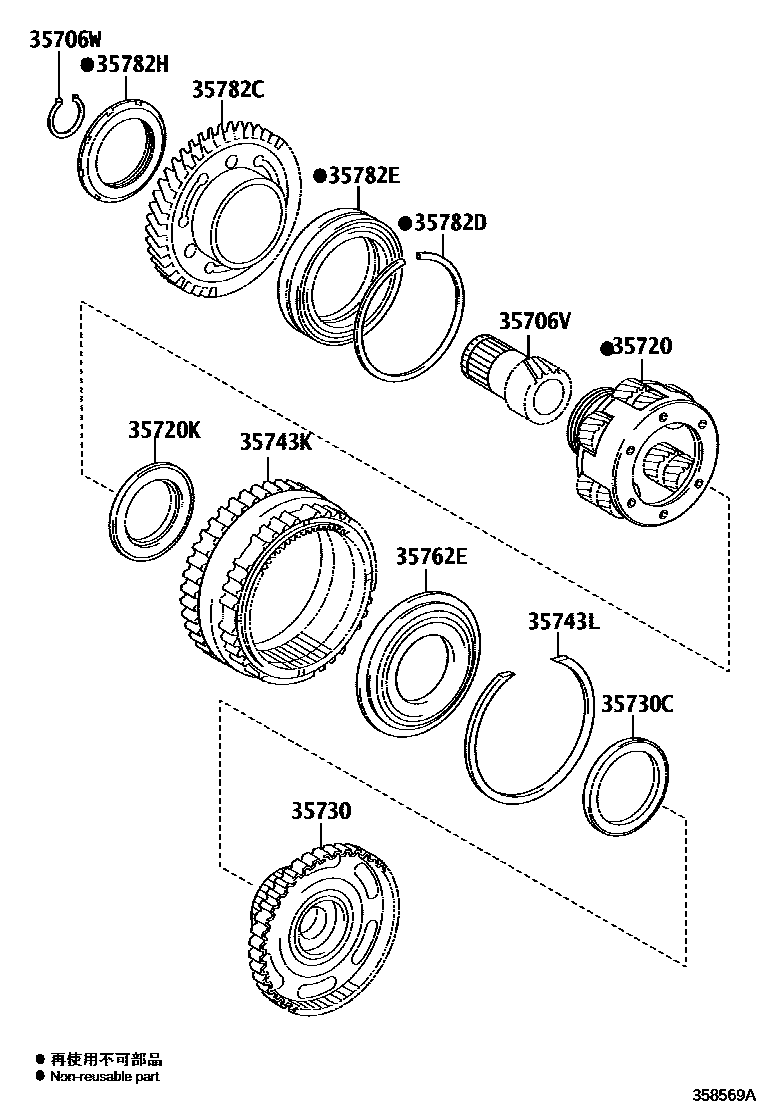

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730GEAR ASSY, REAR PLANETARY SUN
(L)
(J)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
35743KGEAR, PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35762EFLANGE, PLANETARY RING GEAR
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
35782EBEARING(FOR COUNTER DRIVE GEAR)
35782HNUT(FOR COUNTER DRIVE GEAR)
13 parts on this diagram · 1 diagram in section
