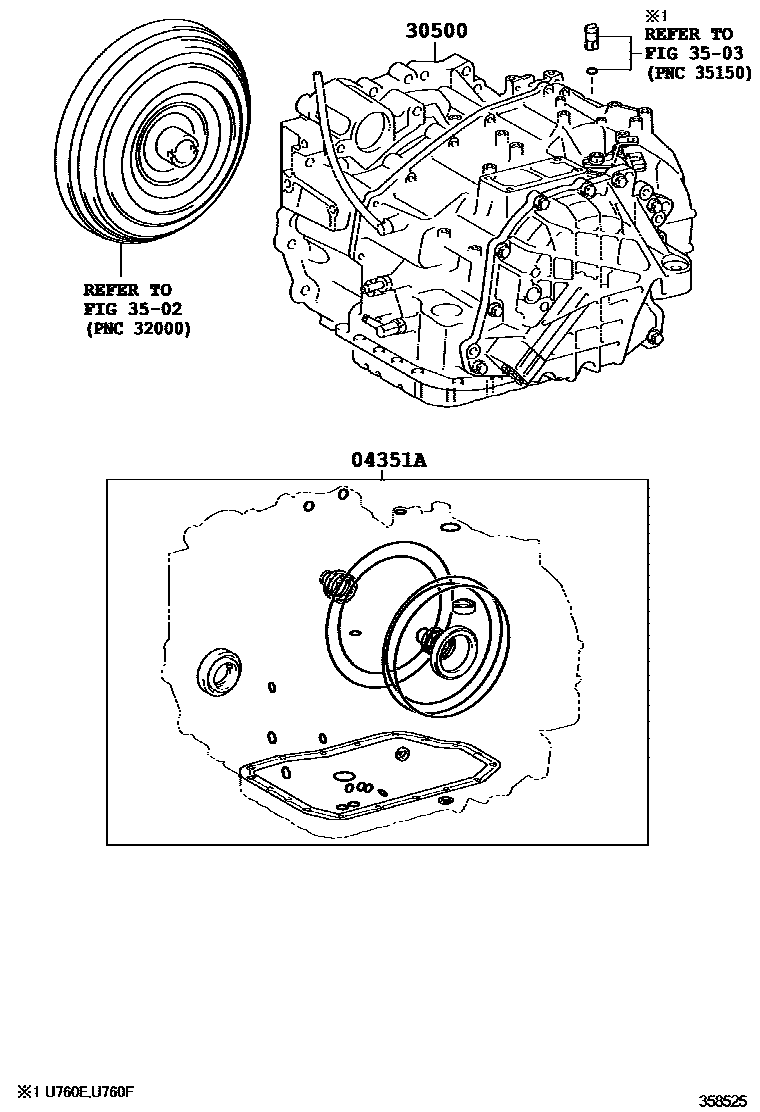

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48183iAGV10201303-201308

main04351-73012iAGV15201303-201308

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0T030iAGV10201308-201506

U760E,(L)

main30500-0T040iAGV15201308-201506

U760F,(L)

main30500-73011iAGV10201303-201308

U760E,(J)

main30500-73020iAGV15201303-201308

U760F,(J)

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 1 diagram in section
