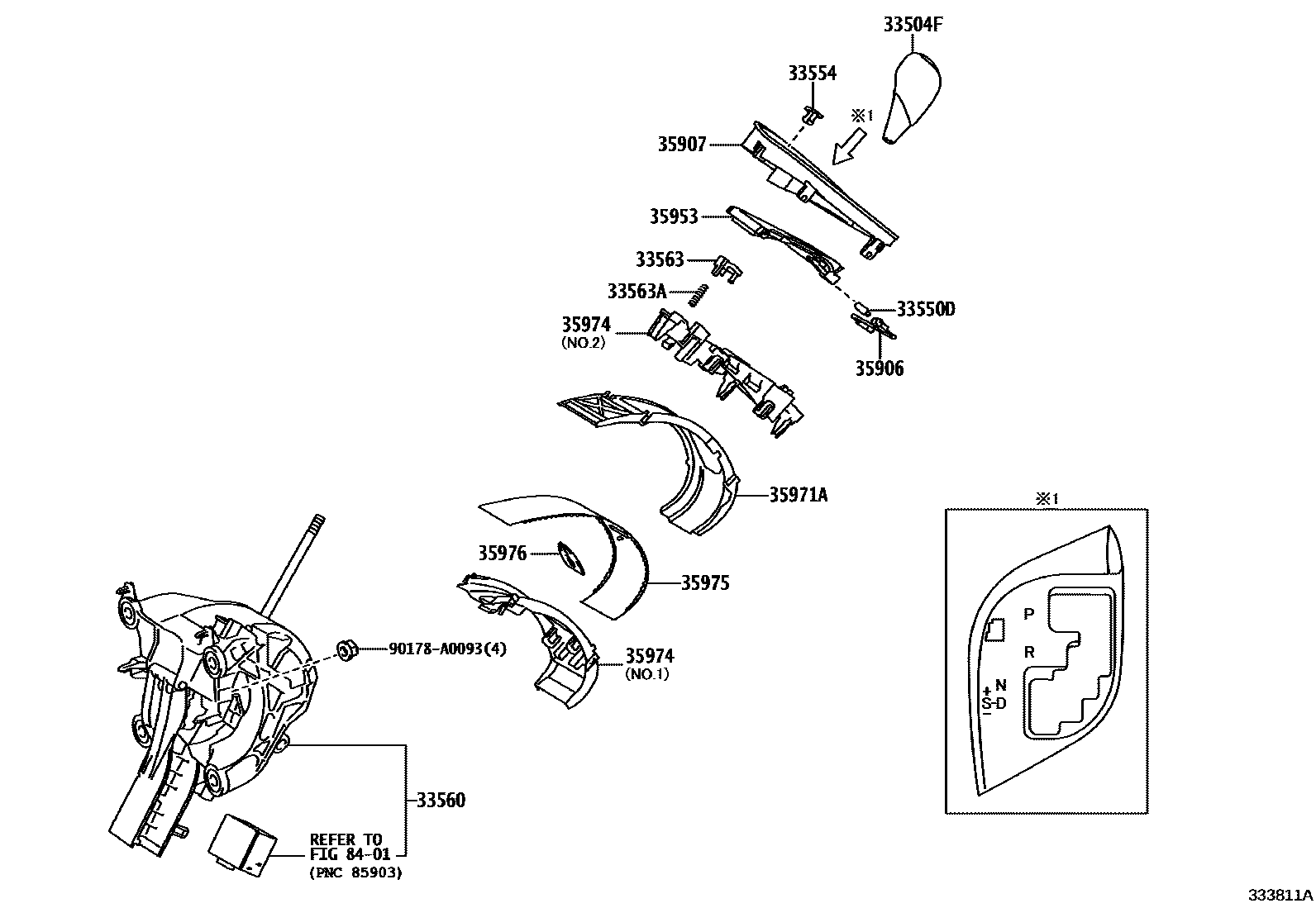

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM1#
BEIGE,TRIM0#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33554CAP, SHIFT LEVER
33560UNIT ASSY, SHIFT LOCK CONTROL
WITH(SMART KEY)
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35953GUIDE, POSITION INDICATOR LIGHT
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
NO.1
NO.2
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
90178A0093
main90178-A0093
15 parts on this diagram · 2 diagrams in section
