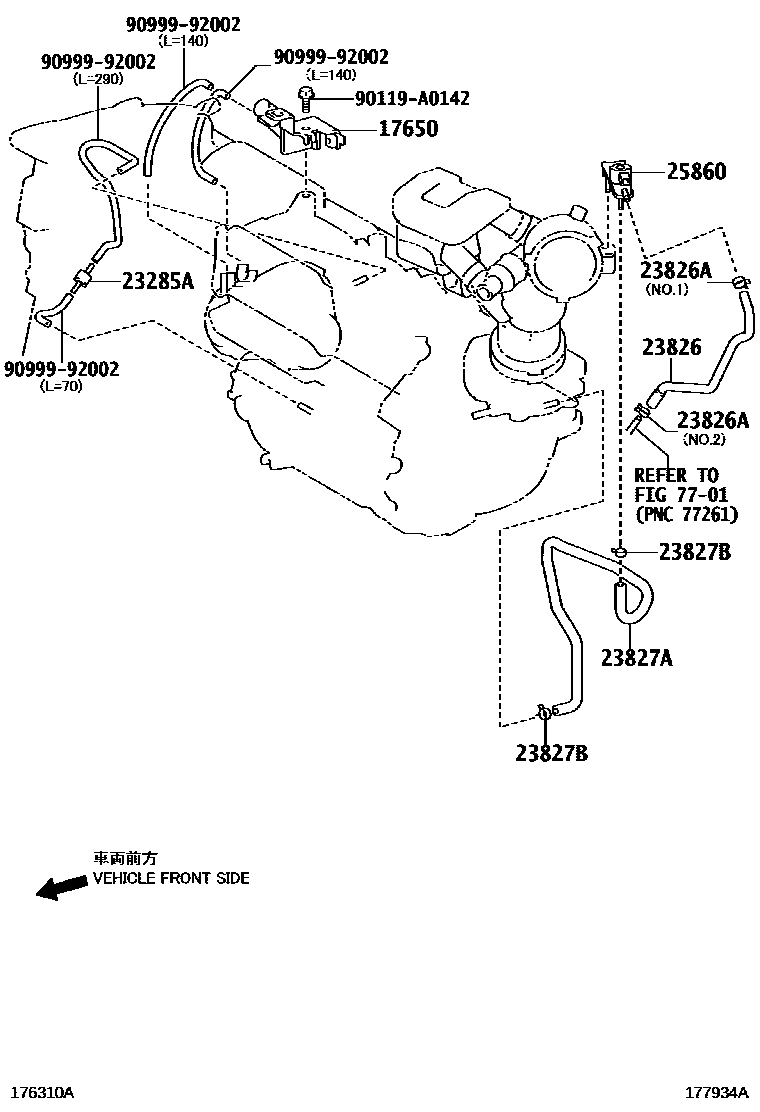

VACUUM PIPING

17650VALVE ASSY, VACUUM SWITCHING

main25860-0V050i1ARFE..AGV1#201303-201506

23285AVALVE, CHECK, NO.1

main90917-10065i1ARFE..AGV1#201303-201506

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0V070i1ARFE..AGV1#201303-201506

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1ARFE..AGV1#201303-201506

NO.1

main96132-51300i1ARFE..AGV1#201303-201506

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-0V010i1ARFE..AGV1#201303-201506

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004×2i1ARFE..AGV1#201303-201506

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V040i1ARFE..AGV1#201303-201506

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90119A0142

main90119-A0142

9099992002

main90999-92002

10 parts on this diagram · 1 diagram in section
