1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-0V400i201303-201506

16361BFAN, NO.2

main16361-0V410i201303-201506

16363MOTOR, COOLING FAN

main16363-0V160i201303-201506

16363AMOTOR, COOLING FAN, NO.2

main16363-0V400i201303-201506

16400RADIATOR ASSY

main16400-0V090supersedes 16400-0V010i201303-201506

RUSSIA SPEC

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i201303-201506

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i201303-201506

16401CAP SUB-ASSY, RADIATOR

main16401-31520i201303-201506

16423HOSE, RADIATOR TANK

main16492-AD020i201303-201506

16470TANK ASSY, RADIATOR RESERVE

main16470-0V070i201303-201506

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90469-12014×2i201303-201506

16471CAP SUB-ASSY, RESERVE TANK

main16471-AA010i201303-201506

16495BPIPE (FOR ATM OIL COOLER)

main16495-31470i201303-201506

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010×2i201303-201506

16535SUPPORT, RADIATOR, LOWER

main16535-0H030×2i201303-201506

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0V010i201303-201506

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-0V010×2i201303-201506

16566HOSE, RESERVE TANK OUTLET

main16566-0P010i201303-201506

16571HOSE, RADIATOR, INLET

main16571-36050i201303-201506

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-A0020×2i201303-201506

16572HOSE, RADIATOR, OUTLET

main16572-0V210supersedes 16572-0V010i201303-201506

RUSSIA SPEC

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-A0020×2i201303-201506

16611BRACKET, RADIATOR RESERVE TANK

main16611-0V020i201303-201506

16711SHROUD, FAN

main16711-0V010i201303-201506

9008011208

main90080-11208

9011906991

main90119-06991

90119A0373

main90119-A0373

90182A0003

main90182-A0003

90467A0012

main90467-A0012

9338516012

main93385-16012

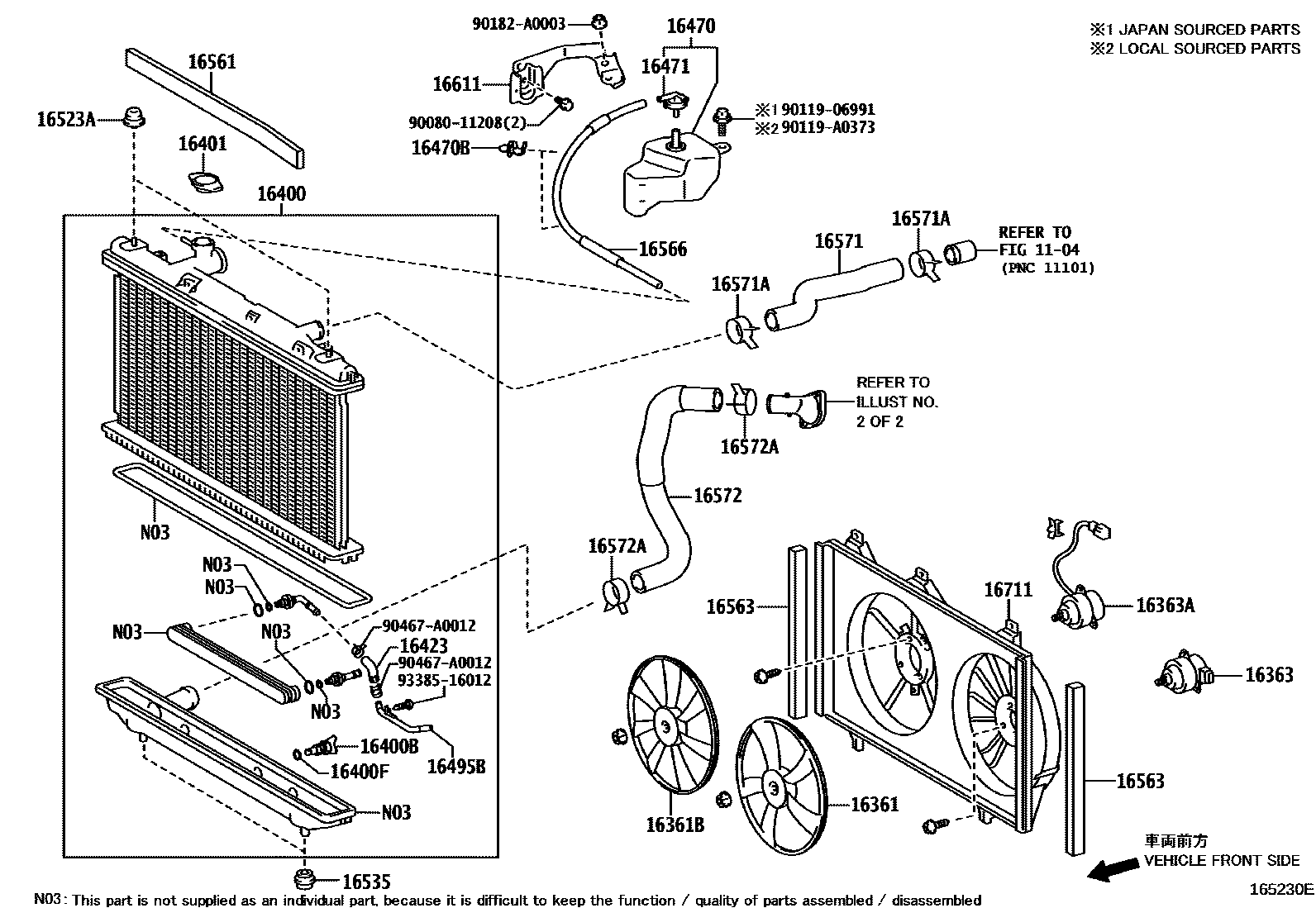

RADIATOR & WATER OUTLET
