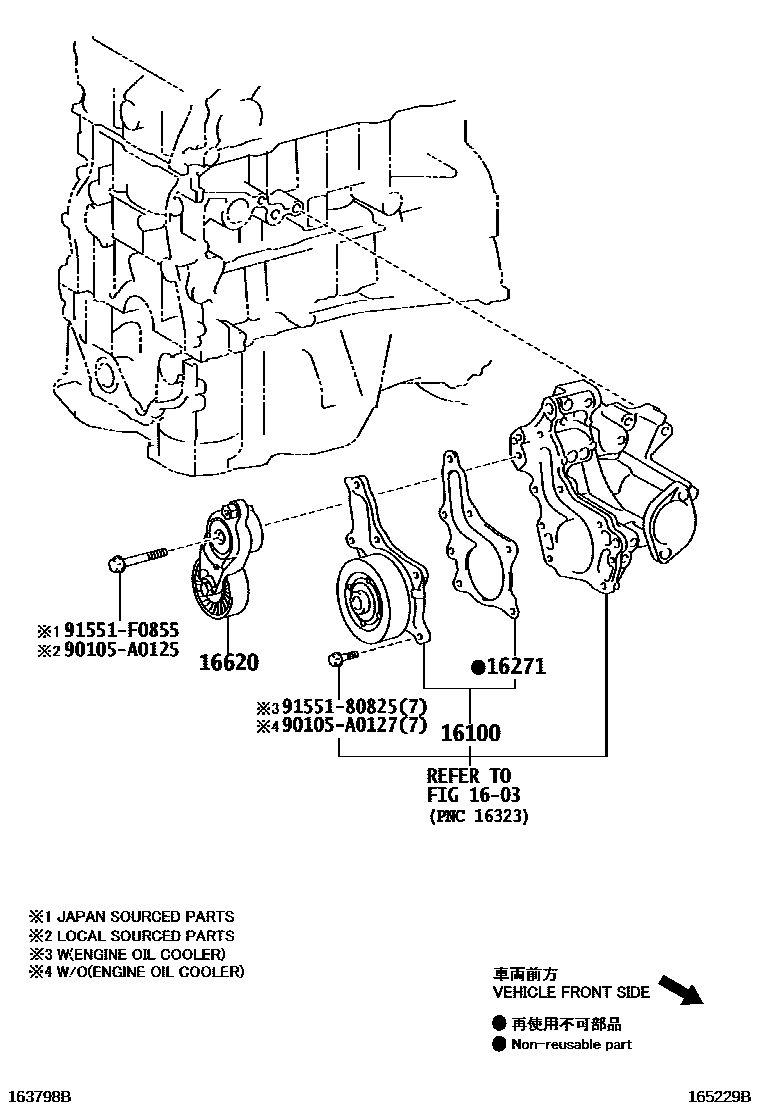

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09515i1ARFE..AGV1#201303-201506

RUSSIA SPEC,(L)

main16100-39515supersedes 16100-09515i1ARFE..AGV1#201303-201506

RUSSIA SPEC,(J)

16271GASKET, WATER PUMP

main16271-36010i1ARFE..AGV1#201303-201506

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i1ARFE..AGV1#201303-201305

(L)

main16620-0V021i1ARFE..AGV1#201305-201405

(L)

main16620-0V022i1ARFE..AGV1#201405-201506

(L)

main16620-36010i1ARFE..AGV1#201303-201402

(J)

main16620-36011i1ARFE..AGV1#201402-201506

(J)

90105A0125

main90105-A0125

90105A0127

main90105-A0127

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 1 diagram in section
