8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

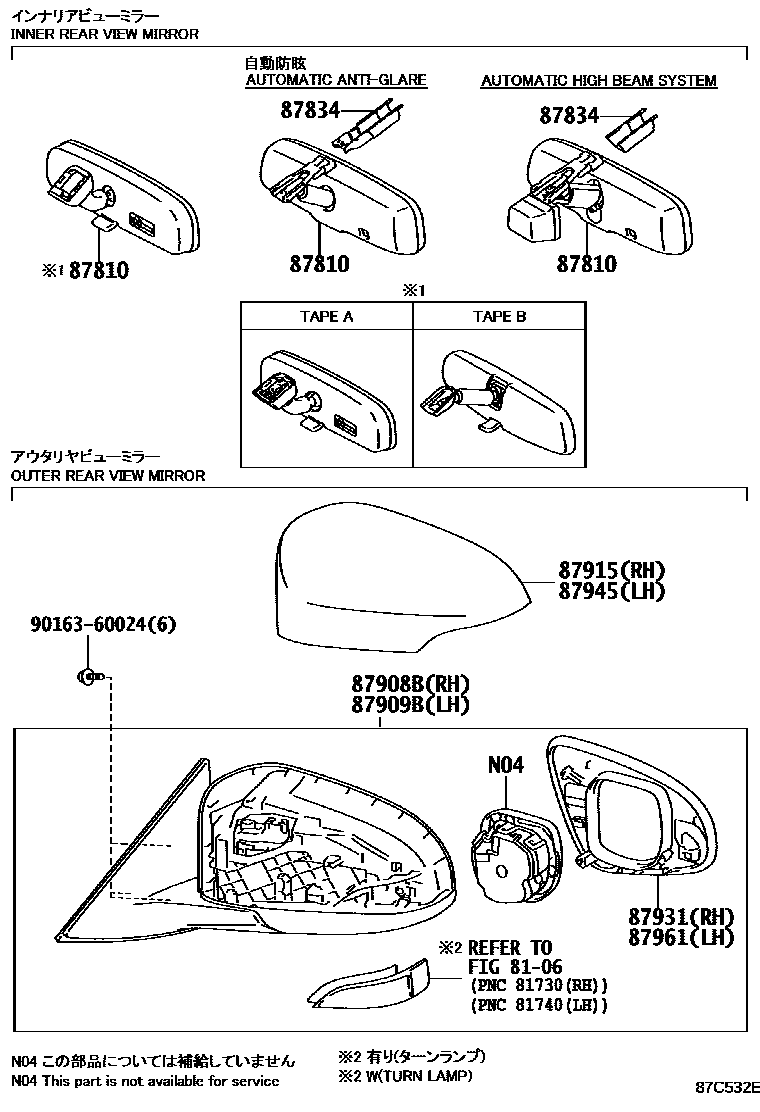

87810MIRROR ASSY, INNER REAR VIEW

main87810-06080i201111-201210

TYPE B

main87810-06100i201110-201504

TYPE A

main87810-0W260i201110-201504

main87810-0WK20i201504-201509

LIMITED PACKAGE; THAILAND SPEC

main87810-0WK21i201510

LIMITED PACKAGE; THAILAND SPEC

main87810-06130i201110-201504

LIMITED PACKAGE

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-33010i201110-201504

main87818-04010i201110-201504

LIMITED PACKAGE

87908BMIRROR SUB-ASSY, RH

main87908-06440i201110-201307

REFER81-06:PNC 81730

main87908-06441supersedes 87908-06720i201307-201504

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(TURN),REFER81-06:PNC 81730; REFER81-06:PNC 81730

main87908-06450i201110-201307

REFER81-06:PNC 81730

main87908-06451i201504

main87908-06480i201110-201504

main87908-06570i201202-201307

REFER81-06:PNC 81730

main87908-06571i201307-201504

REFER81-06:PNC 81730

main87908-06581i201504

main87908-06602i201605

main87908-06730i201504

OUTSIDE REAR VIEW MIRROR-ELEC+MNL-RE+TU

main87908-06740i201504

main87908-06580i201202-201307

SEAT COVER MATERIAL-LEATHER,REFER81-06:PNC 81730

main87908-06600i201110-201307

LIMITED PACKAGE,REFER81-06:PNC 81730

main87908-06601i201307-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),REFER81-06:PNC 81730; LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,REFER81-06:PNC 81730; LIMITED PACKAGE,REFER81-06:PNC 81730

main87908-06760i201504

LIMITED PACKAGE; THAILAND SPEC

87909BMIRROR SUB-ASSY, LH

main87909-06440i201110-201307

REFER81-06:PNC 81740

main87909-06441supersedes 87909-06720i201307-201504

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(TURN),REFER81-06:PNC 81740; REFER81-06:PNC 81740

main87909-06450i201110-201307

REFER81-06:PNC 81740

main87909-06451i201504

main87909-06480i201110-201504

main87909-06570i201202-201307

REFER81-06:PNC 81740

main87909-06571i201307-201504

REFER81-06:PNC 81740

main87909-06581i201504

main87909-06602i201605

main87909-06730i201504-201605

main87909-06740i201504

main87909-06580i201202-201307

SEAT COVER MATERIAL-LEATHER,REFER81-06:PNC 81740

main87909-06600i201202-201307

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),REFER81-06:PNC 81740

main87909-06601i201307-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),REFER81-06:PNC 81740; LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,REFER81-06:PNC 81740; LIMITED PACKAGE,REFER81-06:PNC 81740

main87909-06760i201504

LIMITED PACKAGE; THAILAND SPEC

87915COVER, OUTER MIRROR, RH

main87915-06140i201110-201211

main87915-06909supersedes 87915-06140i201504-201605

PAINT REQ.

87931OUTER MIRROR, RH

main87931-06440i201110-201211

main87931-06450i201110-201504

main87931-06602i201504

LIMITED PACKAGE; THAILAND SPEC

main87931-06600i201201-201504
