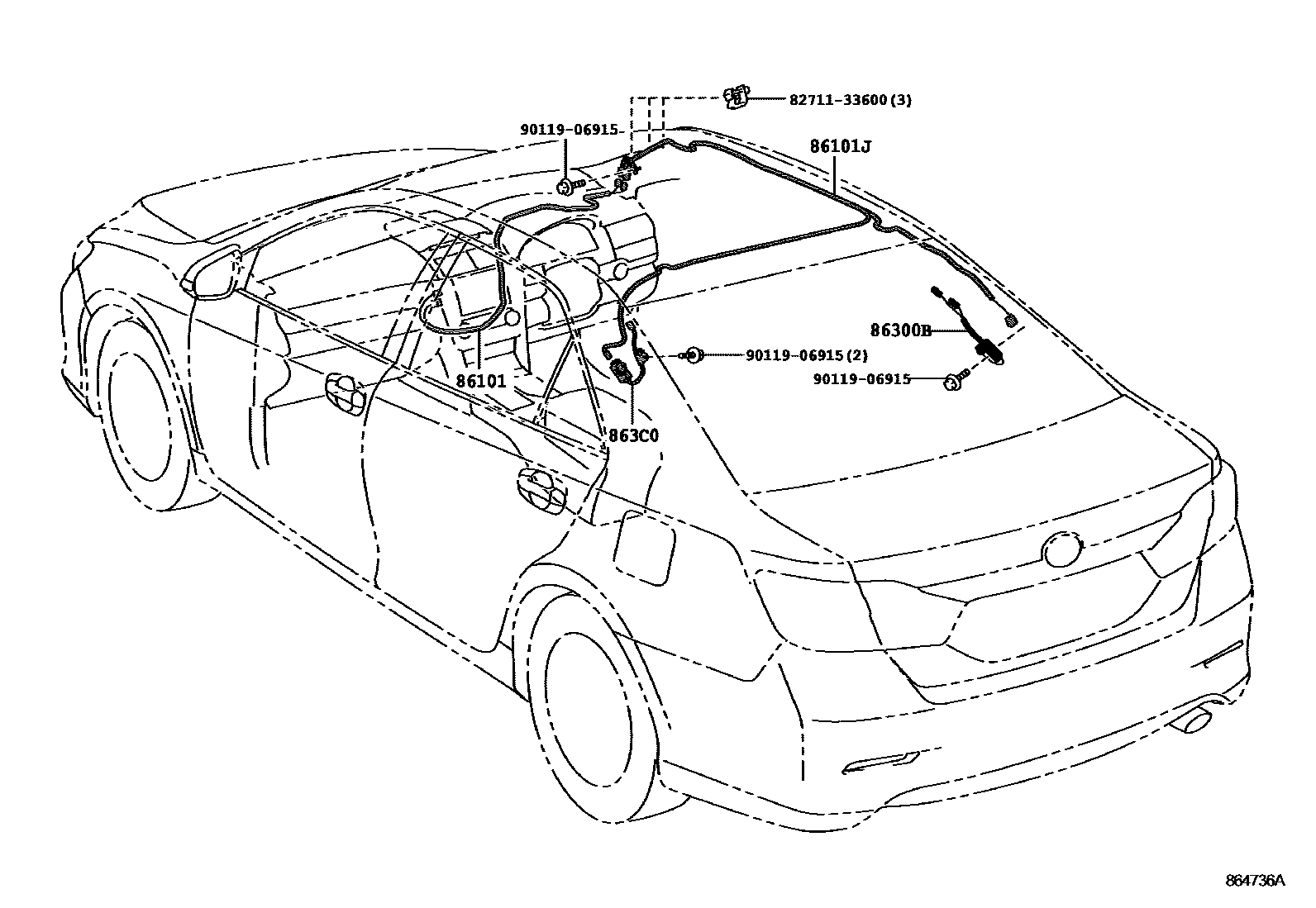

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-33A40iASV50,GSV50..GCC201504

main86101-33A50iASV50,AVV50,GSV50..ARL201110-201504

main86101-33G90iGSV50..PRD201504

main86101-33A90iASV50..ATRSX201504

THAILAND SPEC

main86101-33B30supersedes 86101-33G90iASV50,AVV50..ATRS,HBD201110-201410

AUDIO-AVN 8SPEAKER DIGITAL AUDIO BROADCASTING

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-33A10iASV50..6F201110-201211

main86101-33A30iGSV50..PRD201504

main86101-33A80iASV50..ATRSX201504

THAILAND SPEC

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-06170iASV50..6F201110-201211

main86300-06190iASV50..ATRSX201504

THAILAND SPEC

863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING

main863C0-06010iASV50,GSV50..ATRSX,SPVS; GSV50..ATX201605

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

8271133600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33600

9011906915

main90119-06915

6 parts on this diagram · 2 diagrams in section
