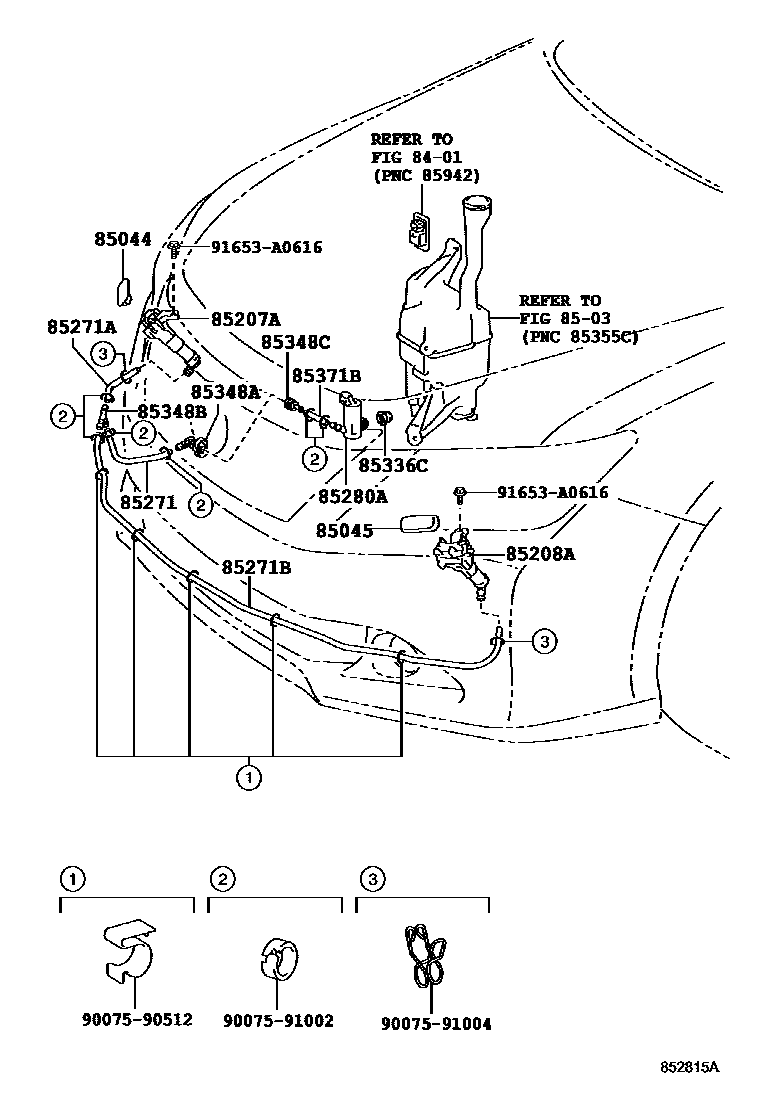

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85384-33010iGSV50..GD; GSV50..PRD,SPVS201202

HEADLAMP-DISCHARGE & AFS

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85394-33010iGSV50..GD; GSV50..PRD,SPVS201202

HEADLAMP-DISCHARGE & AFS

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-33040iGSV50..GD; GSV50..PRD,SPVS201202-201504

HEADLAMP-DISCHARGE & AFS

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-33040iGSV50..GD; GSV50..PRD,SPVS201202-201504

HEADLAMP-DISCHARGE & AFS

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15057iGSV50..GD; GSV50..PRD,SPVS201202

L=220; L=220,HEADLAMP-DISCHARGE & AFS

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15053iGSV50..GD; GSV50..PRD,SPVS201202

L=35; L=35,HEADLAMP-DISCHARGE & AFS

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15072iGSV50..GD; GSV50..PRD,SPVS201202

L=1550; L=1550,HEADLAMP-DISCHARGE & AFS

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010iGSV50..GD; GSV50..PRD,SPVS201202-201504

HEADLAMP-DISCHARGE & AFS

85336CPACKING, HEADLAMP CLEANER MOTOR

main90099-32089iGSV50..GD; GSV50..PRD,SPVS201202-201504

HEADLAMP-DISCHARGE & AFS

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17001iGSV50..GD; GSV50..PRD,SPVS201202

HEADLAMP-DISCHARGE & AFS

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17003iGSV50..GD; GSV50..PRD,SPVS201202

HEADLAMP-DISCHARGE & AFS

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main90075-17002iGSV50..GD; GSV50..PRD,SPVS201202

HEADLAMP-DISCHARGE & AFS

85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)

main90075-15053iGSV50..GD; GSV50..PRD,SPVS201202

L=35; L=35,HEADLAMP-DISCHARGE & AFS

9007590512

main90075-90512

9007591002

main90075-91002

9007591004

main90075-91004

91653A0616

main91653-A0616

19 parts on this diagram · 1 diagram in section
