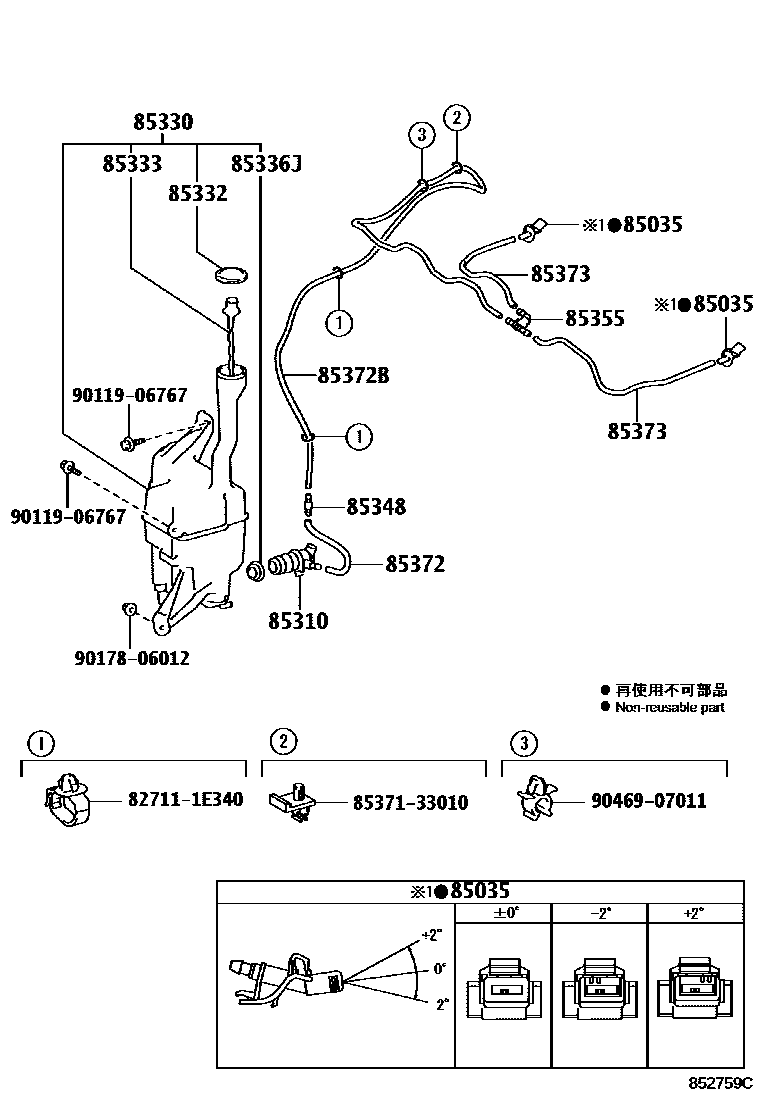

WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER) 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-30150iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

ANGLE +2

main85381-30160iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

ANGLE -2

main85381-33080iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

85330JAR ASSY, WINDSHIELD WASHER

main85315-06240iASV50..6F201110-201211

85332CAP, WINDSHIELD WASHER JAR

main85316-33320iGSV50..GD; GSV50..PRD,SPVS201202-201504

HEADLAMP-DISCHARGE & AFS

main85386-60050iASV50..SE201504-201605

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,GLX,HBD,PRD,SE,SPVS,TOU201110-201208

85336JPROTECTOR, WASHER JAR

main85336-60300iASV50,AVV50,GSV50..ATM,CVT201110-201504

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iASV50,AVV50,GSV50201110-201504

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iASV50,AVV50,GSV50201110-201504

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62062iASV50..SE201504-201605

L=50

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iASV50,AVV50,GSV50201110-201412

L=3300(*H,L=2290)

main90099-59389iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

L=2010

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62061×2iASV50,AVV50,GSV50201110-201412

L=465

main90099-62084iASV50,AVV50,GSV50201412-201504

L=280

main90099-62093iASV50..SE201504-201605

L=660

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906767

main90119-06767

9017806012

main90178-06012

9046907011

main90469-07011

16 parts on this diagram · 3 diagrams in section
