Toyota CAMRY/AURION/HV(ARL)285 — ABS & VSC

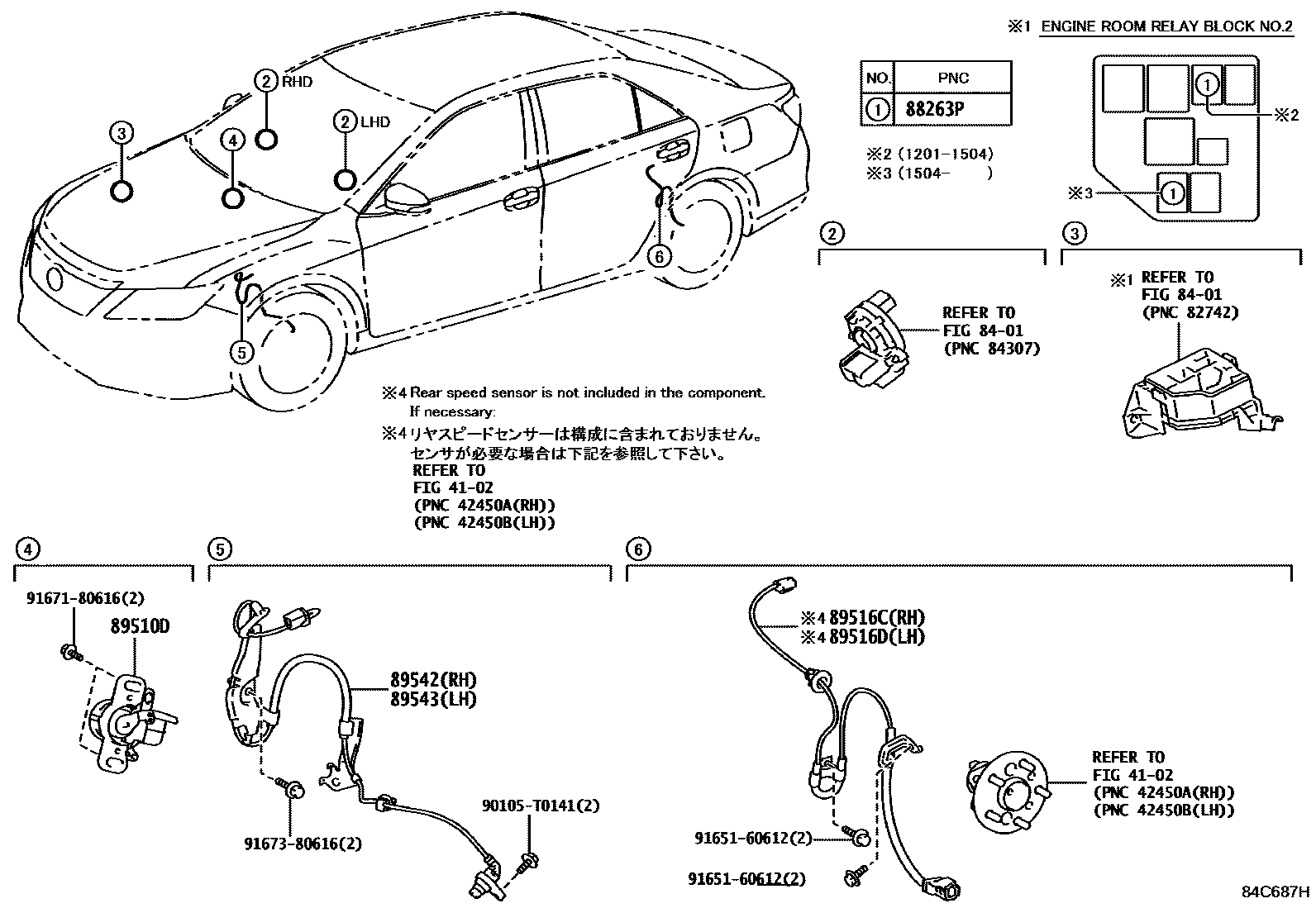

Parts diagram
4102REAR AXLE SHAFT & HUB
→ Go to FIG 41-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
88263PRELAY, STOP LAMP CONTROL
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89542SENSOR, SPEED, FRONT RH
89542-33100
89542-33120
89543SENSOR, SPEED, FRONT LH
89543-33090
89543-33110
90105T0141
90105-T0141
9165160612
91651-60612
9167180616
91671-80616
9167380616
91673-80616

12 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CAMRY/AURION/HV(ARL)285

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota CAMRY/AURION/HV(ARL)285. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, RELAY, STOP LAMP CONTROL, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH.
