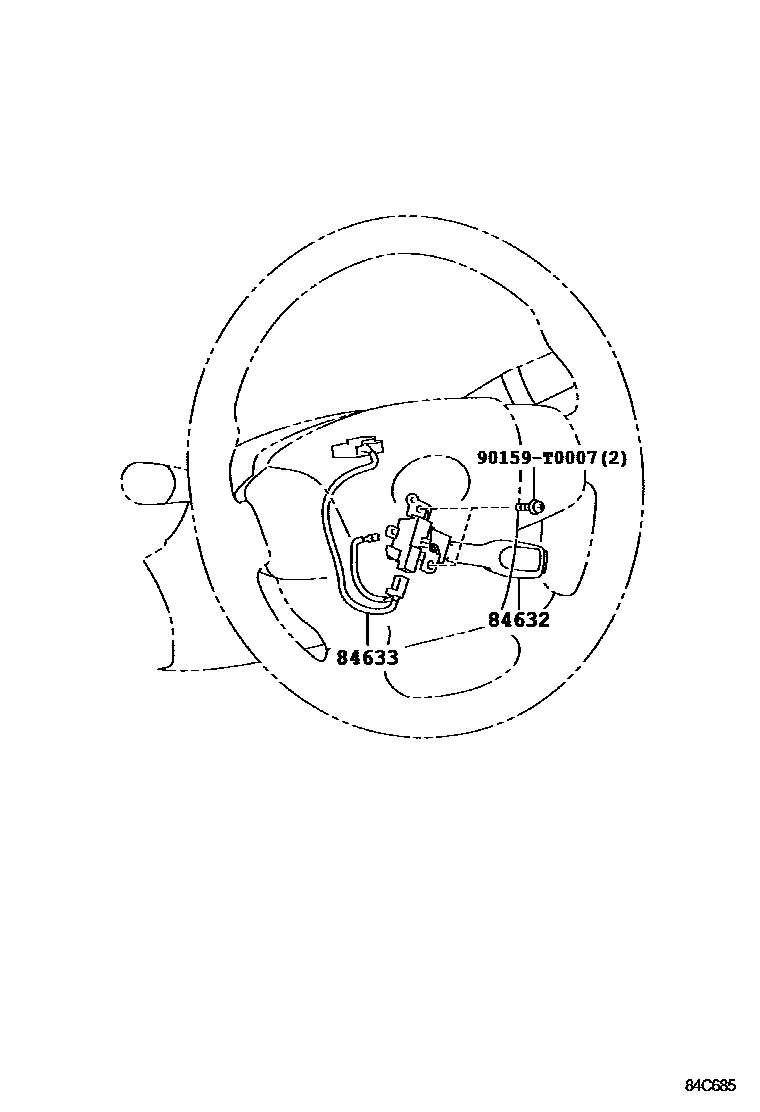

CRUISE CONTROL (AUTO DRIVE)

0001 1 0004 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iASV50..SE201504-201605

main84632-58011iAVV50201504

LIMITED PACKAGE&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU)201110-201504

main84633-42030iASV50..GL201307-201504

FLEET PACKAGE

main84633-48010iAVV50201504

LIMITED PACKAGE&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

90159T0007

main90159-T0007

3 parts on this diagram · 2 diagrams in section
