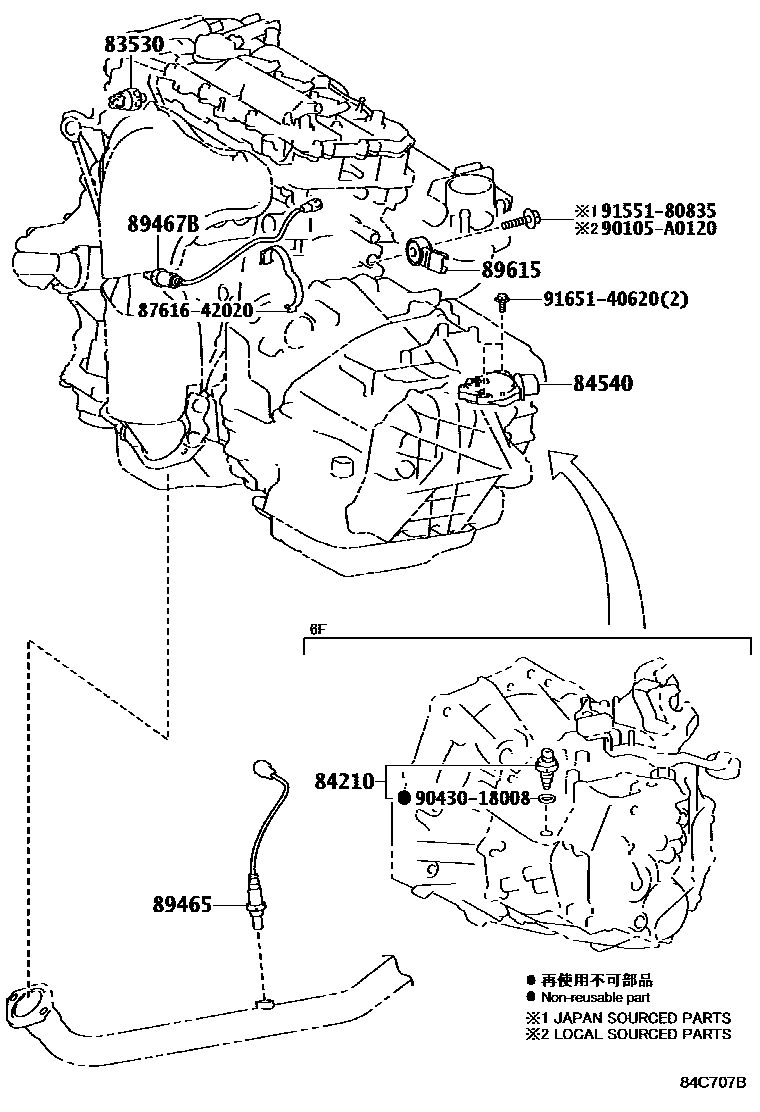

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 2/2 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1STEERING 0019 1STEERING 0020 1SEAT 0021 1DOOR,ROOF,FLOOR & LUGGAGE DOO0022 1DOOR,ROOF,FLOOR & LUGGAGE DOO

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

DENSO

main83530-28020iASV50..6F201110-201504

main83530-60020iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iASV50..6F201110-201206

sub84210-52050

main84210-52050iASV50..6F201206-201211

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV50,GSV50..6FC201110-201710

89465SENSOR, OXYGEN

main89465-06210iGSV50201202-201504

LH

main89465-06220iGSV50201202-201504

RH

main89465-06280iASV50..ARL201110-201206

main89465-33470iAVV50201201-201504

main89465-33560iASV50..6F201202-201605

89467BSENSOR, AIR FUEL RATIO

main89467-33220iGSV50201202-201501

LH

main89467-33230iGSV50201202-201504

RH

main89467-48190iASV50..6F201110-201605

main89467-48220iGSV50201501-201504

LH

89615SENSOR, KNOCK CONTROL

main89615-06010iASV50..6FC201110-201504

(L)

main89615-20090iGSV50201201-201605

main89615-20090iASV50..6F201110-201504

(J)

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

90105A0120

main90105-A0120

9043018008

main90430-18008

9155180835

main91551-80835

9165140620

main91651-40620

11 parts on this diagram · 22 diagrams in section
