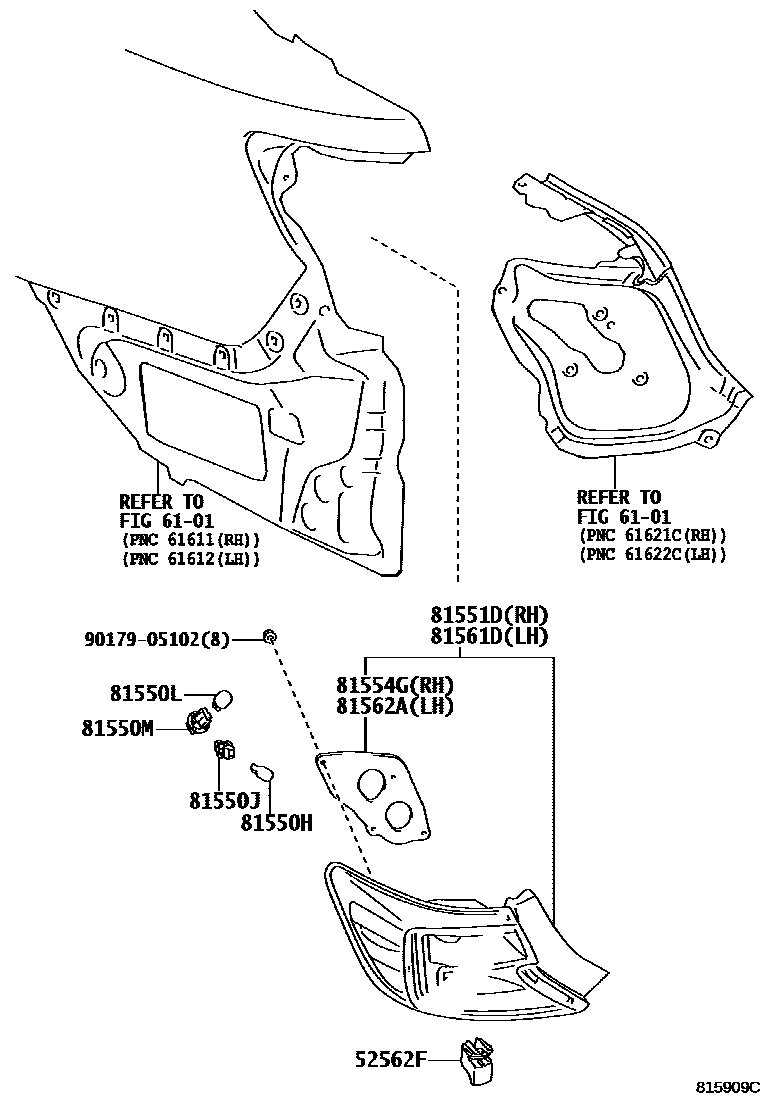

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

52562FRETAINER, REAR BUMPER, UPPER SIDE

main52562-06120iASV50..6F201110-201605

sub52562-06070

6101

81550HBULB, TAIL & STOP LAMP

main99132-8Y002iASV50..6F201110-201504

main99132-8Y002iASV50..SE201504-201605

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-8Y003iASV50..SE201110-201605

sub90075-60002

81550LBULB, REAR TURN SIGNAL LAMP

main90981-8Y021iASV50..6F201110-201504

main90981-8Y021iASV50..SE201504-201605

12V 21W

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-8Y004iASV50..6F201110-201605

sub90075-60026

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-06490iASV50..6F201110-201504

main81551-06570iGSV50201202-201605

main81551-06571iGSV50201605

main81551-06580iAVV50201201-201307

main81551-06700iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

81554GGASKET, REAR COMBINATION LAMP, RH

main81554-06700iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

main81562-06490iASV50,AVV50..ATM,CVT201110-201504

main81562-06570iGSV50201202-201504

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-06490iASV50..6F201110-201504

main81561-06570iGSV50201202-201605

main81561-06571iGSV50201605

main81561-06580iAVV50201201-201307

main81561-06700iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

81562AGASKET, REAR COMBINATION LAMP, LH

main81554-06700iASV50..SE201504-201605

main81562-06490iASV50,AVV50..ATM,CVT201110-201504

main81562-06570iGSV50201202-201504

9017905102

main90179-05102

11 parts on this diagram · 3 diagrams in section
