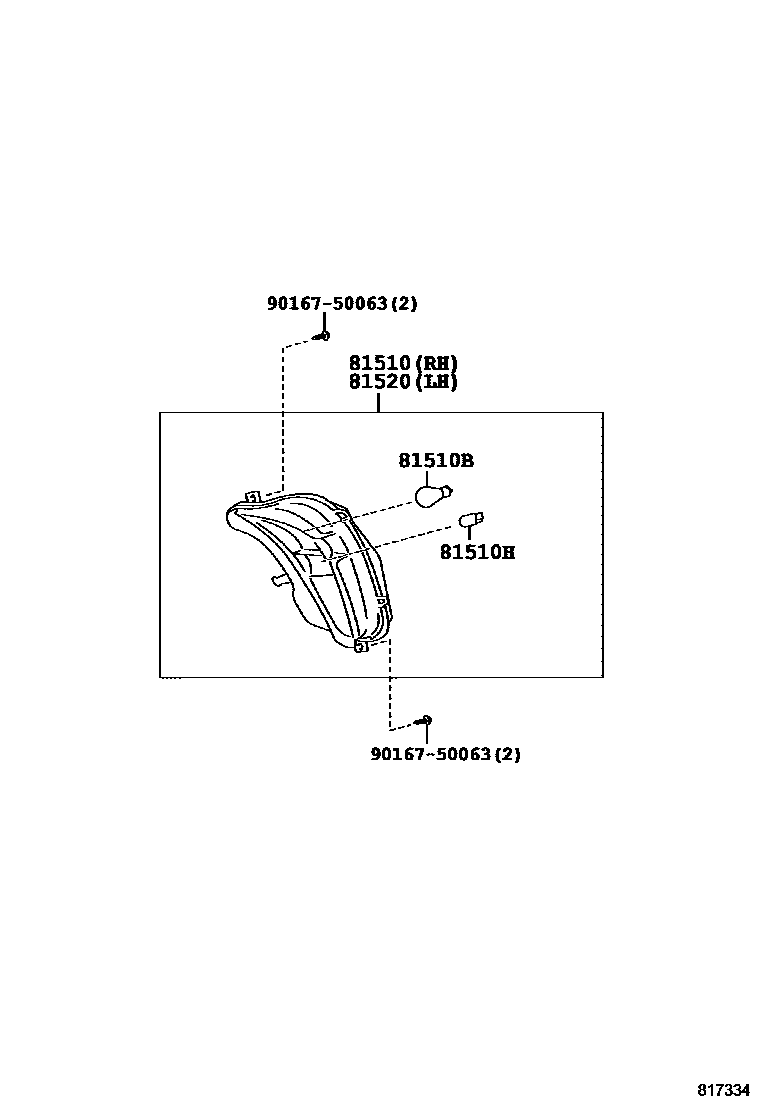

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81430-06040iASV50..GL; ASV50..GLX201605-201710

GL SP PACKAGE

main81510-06060iASV50..GLX201504-201605

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-8Y001×2iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

12V 21W,YELLOW

81510HBULB (FOR FRONT CLEARANCE LAMP)

main99132-12050×2iASV50..SE201504-201605

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81440-06040iASV50,AVV50..ARL201504-201710

main81520-06060iASV50..GLX201504-201605

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
