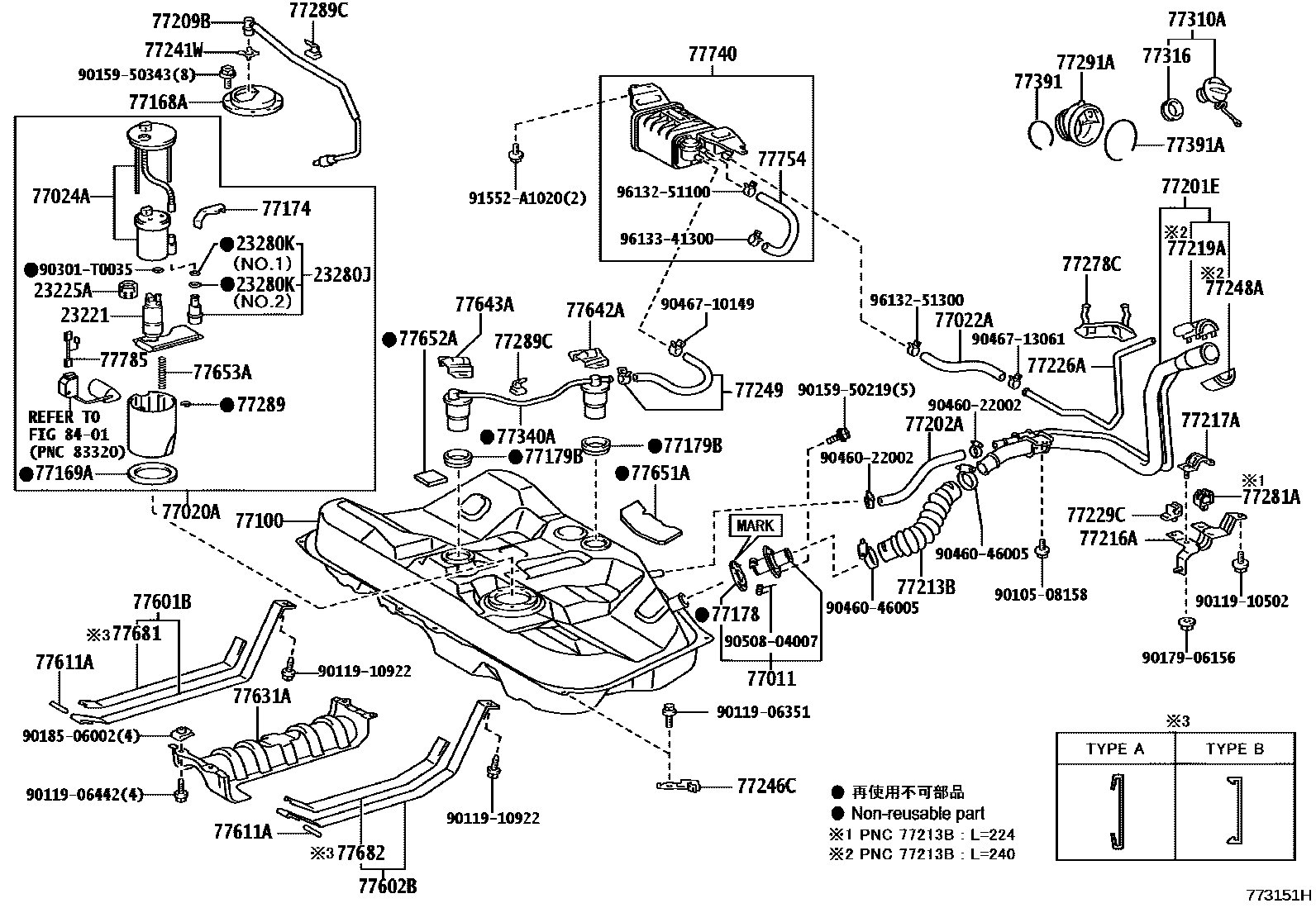

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23221PUMP, FUEL

main23220-0V120i2AR#..ASV50,AVV50201110-201205

sub23220-0V121

sub77785-06090

main23220-0V121i2ARFE..ASV50..6F201205-201605

main23220-31510i2GRFE..GSV50201202-201504

23225ASPACER, FUEL PUMP

main23225-0V030i2ARFE..ASV50..SE201110-201605

main23225-21010i2GRFE..GSV50201202-201504

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AR#..ASV50,AVV50..ATM,CVT201110-201605

main23280-38020i2GRFE..GSV50201202-201504

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AR#,2GRFE..ASV50,AVV50,GSV50..ATM,CVT201110-201605

NO.1

main90301-15024i2ARFE..ASV50..6F201110-201605

NO.2

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-02040iASV50,AVV50,GSV50201310-201605

main77011-06010iASV50,AVV50,GSV50..ATM,CVT201110-201310

sub77011-02040

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-06312iAVV50201201-201504

sub77020-33312

main77020-06321iASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

sub77020-33321

main77020-06411iGSV50201202-201504

sub77020-33331

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iASV50,AVV50,GSV50201110-201605

*H,L=240

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06160iASV50..6F201110-201605

sub77024-33090

main77024-06230iAVV50201201-201504

sub77024-33110

main77024-06280iGSV50201202-201504

sub77024-33180

77100TANK ASSY, FUEL

main77001-06092iASV50..SE201110-201605

sub77001-06071

main77001-06180iAVV50201201-201504

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

main77168-52010iAVV50201201-201504

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iASV50..6F201110-201605

77174SUPPORT, FUEL SUCTION, NO.1

main77174-06030iASV50..6F201110-201605

main77174-33050iGSV50201202-201504

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-0A010iASV50,AVV50,GSV50..ATM,CVT201209-201605

W(MARK)

main77178-YC010iASV50,AVV50,GSV50..ATM,CVT201110-201310

W/O(MARK)

sub77178-0A010

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010iASV50,AVV50,GSV50..ATM,CVT201110-201605

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-06110iASV50,AVV50,GSV50..ATM,CVT201209-201502

PNC 77213B:L=224

sub77201-06111

sub77300-12020

main77201-06130iASV50,AVV50,GSV50..ATM,CVT201110-201502

PNC 77213B:L=240

sub77201-06131

sub77300-12020

main77201-06131iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201502-201605

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95312-13024iASV50,AVV50,GSV50201110-201504

L=240

main95313-13024iASV50..SE201504-201605

L=240

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33040iASV50..6F201110-201605

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-06030iASV50,AVV50,GSV50..ATM,CVT201209-201502

L=224

main77213-33050iASV50,AVV50,GSV50201110-201208

L=240

sub77213-33120

main77213-33120iASV50,AVV50,GSV50..ATM,CVT201209-201605

L=240

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06080iASV50..6F201209-201502

PNC 77213B:L=224

main77216-06090iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

PNC 77213B:L=240

sub77216-06070

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06070iASV50..6F201209-201502

PNC 77213B:L=224

main77217-06080iASV50..6F201110-201605

PNC 77213B:L=240

sub77217-33020

77219ACOVER, FUEL TANK FILLER PIPE

main77219-06080iASV50..6F201110-201605

PNC 77213B:L=240

sub77219-33040

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-06050iASV50..SE201502-201605

PNC 77213B:L=240

sub77226-33040

main77226-06111iASV50..6F201110-201502

PNC 77213B:L=240

sub77226-06050

main77226-33040iASV50..6F201209-201502

PNC 77213B:L=224

77229CCLAMP, BREATHER TUBE

main77229-33090iASV50..6F201110-201605

77241WCLIP, TUBE JOINT

main77241-33011iASV50..6F201110-201605

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iASV50..6F201110-201605

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06090iASV50..6F201110-201605

PNC 77213B:L=240

sub77248-33040

77249HOSE, FUEL EMISSION

main77249-33090iASV50,AVV50,GSV50..ATM,CVT201110-201605

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-06040iASV50..SE201110-201605

PNC 77213B:L=240

sub77278-33030

main77278-33030iASV50..6F201209-201502

PNC 77213B:L=224

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-06040iASV50..6F201110-201605

sub77281-33030

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iASV50..6F201209-201502

PNC 77213B:L=224

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iASV50..6F201110-201605

77289CCLAMP, FUEL TUBE, NO.4

main90464-00745iASV50..6F201110-201605

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06120iASV50..6F201110-201504

sub77291-33100

main77291-06170iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

77310ACAP ASSY, FUEL TANK

main77300-12020iASV50,AVV50,GSV50201408-201605

main77300-52030iASV50,AVV50,GSV50..ATM,CVT201110-201408

77316GASKET, FUEL TANK CAP

main77316-52040iASV50..6F201110-201605

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iASV50,AVV50,GSV50..ATM,CVT201110-201605

77391RING, FUEL INLET BOX

main77391-12020iASV50..6F201110-201605

77391ARING, FUEL INLET BOX

main77391-06110iGSV50201110-201112

main77391-06110iASV50..6F201112-201504

(L)

main77391-06130iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

main77391-33040iASV50,AVV50,GSV50..ATM,CVT201112-201504

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06020iASV50..6F201110-201605

main77601-06050iAVV50201201-201504

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06020iASV50..SE201110-201605

main77602-06050iAVV50201201-201504

77611APIN (FOR FUEL TANK BAND)

main90250-08019iASV50,AVV50,GSV50..ATM,CVT201110-201605

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-06050iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

main77631-33060iAVV50201201-201511

sub77631-33090

main77631-33090iAVV50201512

77642APROTECTOR, FUEL TANK, NO.2

main77642-33040iASV50..6F201110-201605

77643APROTECTOR, FUEL TANK, NO.3

main77643-33030iASV50..6F201110-201605

77651ACUSHION, FUEL TANK, NO.1

main77651-06030iASV50..SE201110-201605

sub77651-33020

77652ACUSHION, FUEL TANK, NO.2

main77651-12070iAVV50201201-201504

main77652-06070iASV50,GSV50..6FC201110-201605

sub77652-33020

77653ACUSHION, FUEL TANK, NO.3

main77652-06040iASV50..SE201110-201605

77681SEAT, FUEL TANK BAND, RH

main77681-06040iAVV50201201-201504

main77681-32060iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201209-201605

TYPE A:REFER ILLUST.

main77681-YC010iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

TYPE B:REFER ILLUST.

77682SEAT, FUEL TANK BAND, LH

main77681-06040iAVV50201201-201504

main77681-32060iASV50..6F201209-201605

TYPE A:REFER ILLUST.

main77681-YC010iASV50,GSV50..6FC201110-201605

TYPE B:REFER ILLUST.

77740CANISTER ASSY, CHARCOAL

main77740-33160iASV50,AVV50,GSV50..ATM,CVT201110-201605

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-33030iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

77785HARNESS, FUEL PUMP

main77785-33040iASV50,AVV50201110-201205

sub77785-33041

main77785-33060iASV50..6F201205-201504

main77785-33100iGSV50201202-201709

sub77785-33210

8401

9010508158

main90105-08158

9011906351

main90119-06351

9011906442

main90119-06442

9011910502

main90119-10502

9011910922

main90119-10922

9015950219

main90159-50219

9015950343

main90159-50343

9017906156

main90179-06156

9018506002

main90185-06002

90301T0035

main90301-T0035

9046022002

main90460-22002

9046046005

main90460-46005

9046710149

main90467-10149

9046713061

main90467-13061

9050804007

main90508-04007

91552A1020

main91552-A1020

9613251100

main96132-51100

9613251300

main96132-51300

9613341300

main96133-41300

72 parts on this diagram · 5 diagrams in section
