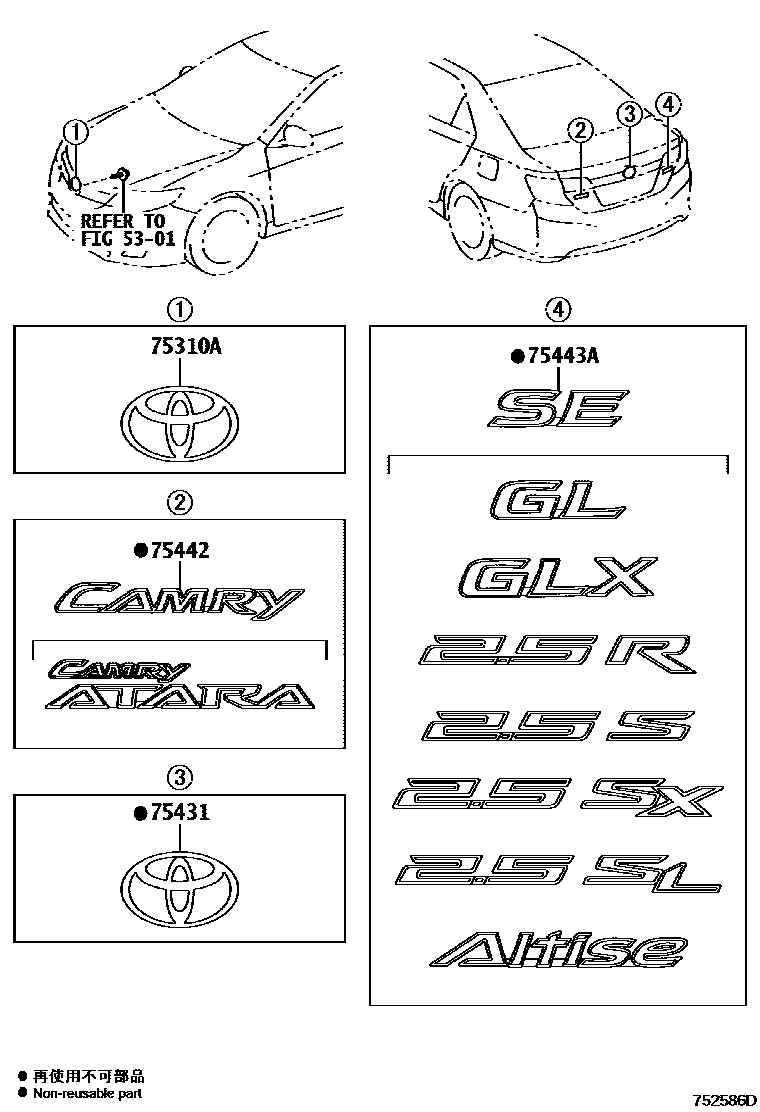

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1 0005 1

5301RADIATOR GRILLE

→ Go to FIG 53-01

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-06010iASV50..GLX201307-201504

main90975-02087iGSV50..ATX,GD,SE,SPVS,TOU201506-201710

main90975-T2002iASV50..6FC..GLX201110-201307

main90975-T2003iGSV50..ATX,GD,SE,SPVS,TOU201504-201506

main53141-0W010iASV50..ATRS201504-201710

LIMITED PACKAGE

main53141-47011supersedes 75310-33010iAVV50201504-201710

LIMITED PACKAGE

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-06010iGSV50201202-201503

main75403-30020iAVV50201504

main75403-33050iGSV50201503-201504

(J)

main75403-75010iAVV50201201-201504

main90975-02062iASV50..SE201506-201605

main90975-T2001iASV50201110-201504

main90975-T2016iASV50201504-201506

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-06200iASV50..6F201110-201211

CAMRY

main75442-06240iGSV50201504-201603

AURION

main75442-06250iASV50..ATRS,ATRSX201110-201504

CAMRY ATARA

main75442-06340iGSV50201603

TMCA CAMRY

main75442-33330iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201506

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06700iASV50..GLX201504-201603

GLX

main75443-06710iASV50..ATRSX201110-201504

2.5SX

main75443-06730iASV50..ALT; ASV50..GL; AVV50201504-201603

GL; GL,NEW ZEALAND SPEC; GL,NEW ZEALAND SPEC&DECONTENT PACKAGE

main75443-06840iGSV50..GD; GSV50..PRD201202-201504

GRANDE; GRANDE,NEW ZEALAND SPEC&LIMITED PACKAGE

main75443-06850iGSV50..ATX; GSV50..TOU201504-201603

TOURING; TOURING,SE PACKAGE

main75443-06890iGSV50..SPVS201202-201504

SPORTIVO

main75443-06A90iGSV50..SE201202-201504

SE

main75443-06B30iASV50..6F..SE201110-201211

SE

main75443-06C20iASV50..ATRSX201504-201603

ATARA SX

main75443-06D10iASV50..GLX201603

TMCA CAMRY

main75443-06D30iASV50..ATRSX201603

TMCA CAMRY

main75443-06D50supersedes 75443-06740iASV50..ALT; ASV50..GL; AVV50201603

TMCA CAMRY; TMCA CAMRY,NEW ZEALAND SPEC; TMCA CAMRY,NEW ZEALAND SPEC&DECONTENT PACKAGE

main75443-06D70iASV50..SE201603-201605

TMCA CAMRY

main75443-06D80supersedes 75443-06E10iGSV50..GD; GSV50..PRD201603

TMCA CAMRY; TMCA CAMRY,NEW ZEALAND SPEC

main75443-06D90supersedes 75443-06E00iGSV50..ATX; GSV50..TOU201603

TMCA CAMRY; TMCA CAMRY,SE PACKAGE

main75443-06E20iGSV50..SE201603

TMCA CAMRY

main75443-06E30iGSV50..SPVS201603

TMCA CAMRY

main75443-06880supersedes 75443-06E10iGSV50..PRD201202-201504

PRESARA,LIMITED PACKAGE

main75443-06A30supersedes 75443-06690iASV50..ATRS201110-201504

2.5SL,LIMITED PACKAGE

main75443-06B50supersedes 75443-06690iASV50..ATRS201209-201504

2.5R,DECONTENT PACKAGE

main75443-06C30supersedes 75443-06740iASV50..ALT; AVV50201504-201603

ALTISE; ALTISE,DECONTENT PACKAGE

main75443-06C50supersedes 75443-06D20iASV50,AVV50..ATRS,HBD201504-201603

ATARA SL,LIMITED PACKAGE

main75443-06D40supersedes 75443-06740iASV50..ALT; AVV50201603

TMCA CAMRY; TMCA CAMRY,DECONTENT PACKAGE

main75443-06D60supersedes 75443-06D20iASV50,AVV50..ATRS,HBD201603

TMCA CAMRY,LIMITED PACKAGE

5 parts on this diagram · 5 diagrams in section
