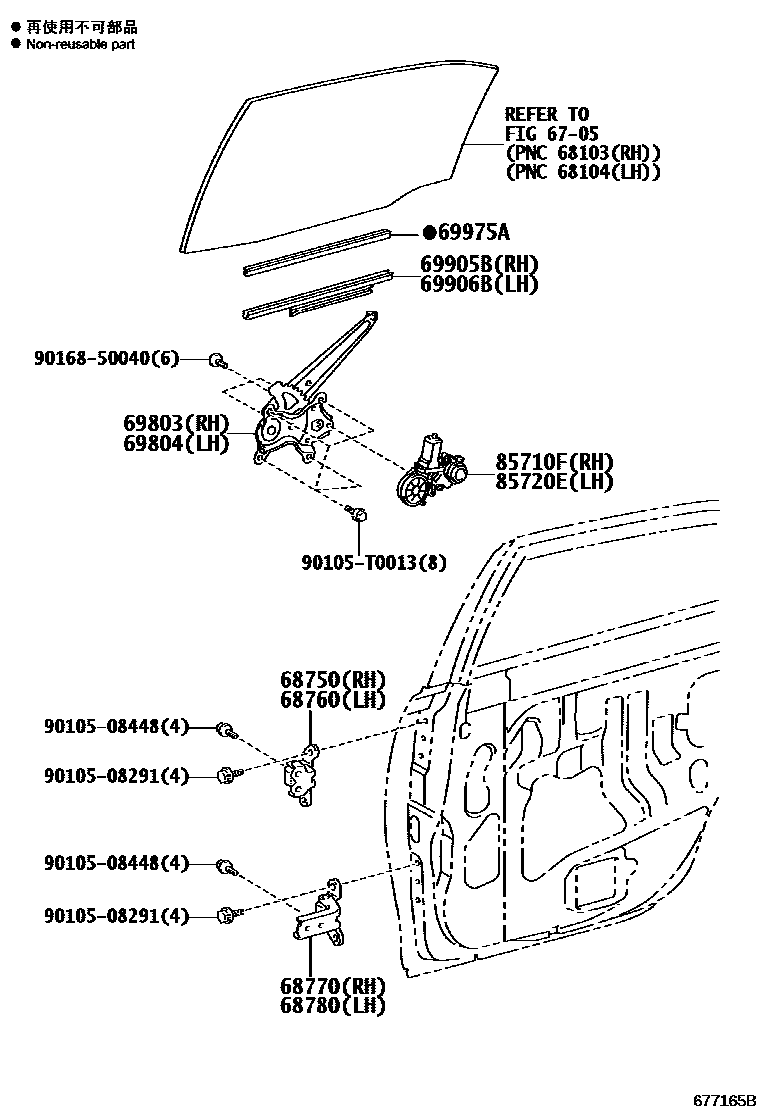

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06020iASV50..6F201110-201211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06020iASV50..6F201110-201211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06010iASV50..6F201110-201211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06010iASV50..6F201110-201211

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iASV50..6F201110-201211

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iASV50..6F201110-201211

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-06010iASV50,AVV50,GSV50201110-201504

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-06010iASV50,AVV50,GSV50201110-201504

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-YC010×2iASV50,AVV50,GSV50201110-201504

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iASV50..6F201110-201211

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iASV50..6F201110-201211

9010508291

main90105-08291

9010508448

main90105-08448

90105T0013

main90105-T0013

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
