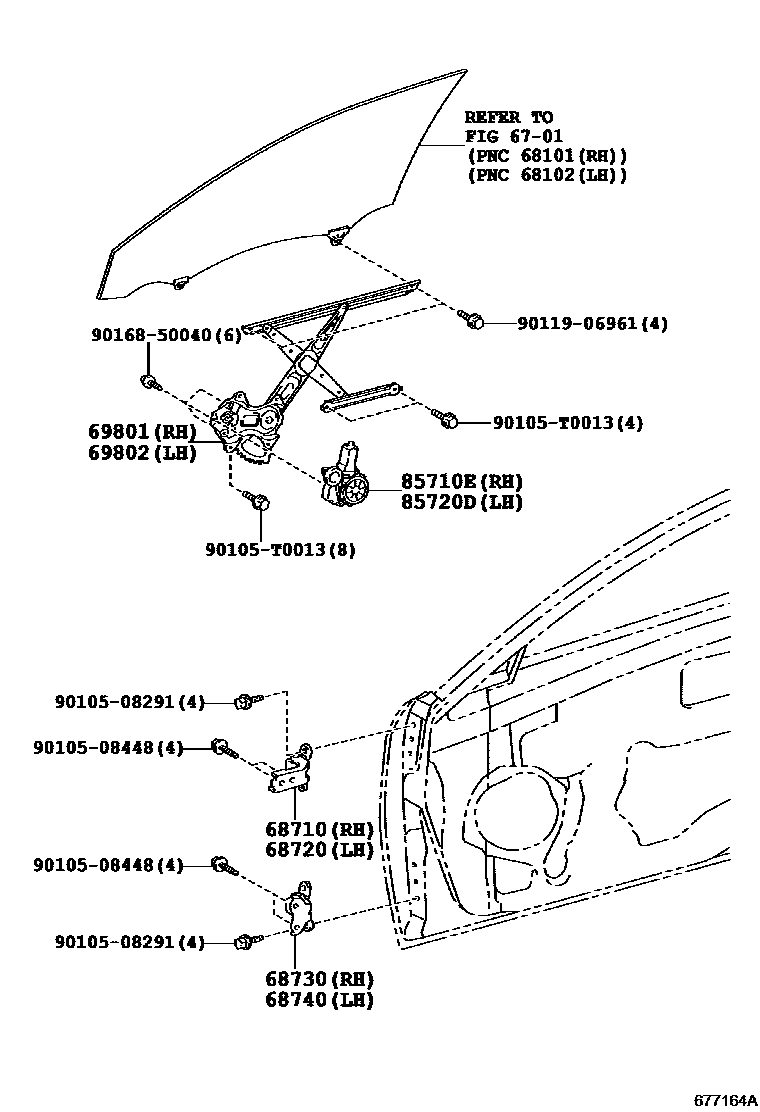

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-06030iASV50,AVV50,GSV50..ATM,CVT201110-201504

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-06030iASV50..6F201110-201211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-06060iASV50..6F201110-201211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-06060iASV50..6F201110-201211

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33090iASV50..6F201110-201211

main69801-52140iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33090iASV50,AVV50,GSV50..ATM,CVT201110-201401

main69802-52130iASV50,AVV50,GSV50201402-201504

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iGSV50..GCC;ASV50..GL,GLX201504

main85710-42120iASV50,AVV50,GSV50..ARL201504

main85710-47060iASV50,AVV50,GSV50..ARL201110-201303

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201504

main85720-42110iASV50..GLX;GSV50..GCC201504

main85720-47060iASV50,GSV50..6FC..(GD,GLX,SE,TOU)201110-201303

9010508291

main90105-08291

9010508448

main90105-08448

90105T0013

main90105-T0013

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
