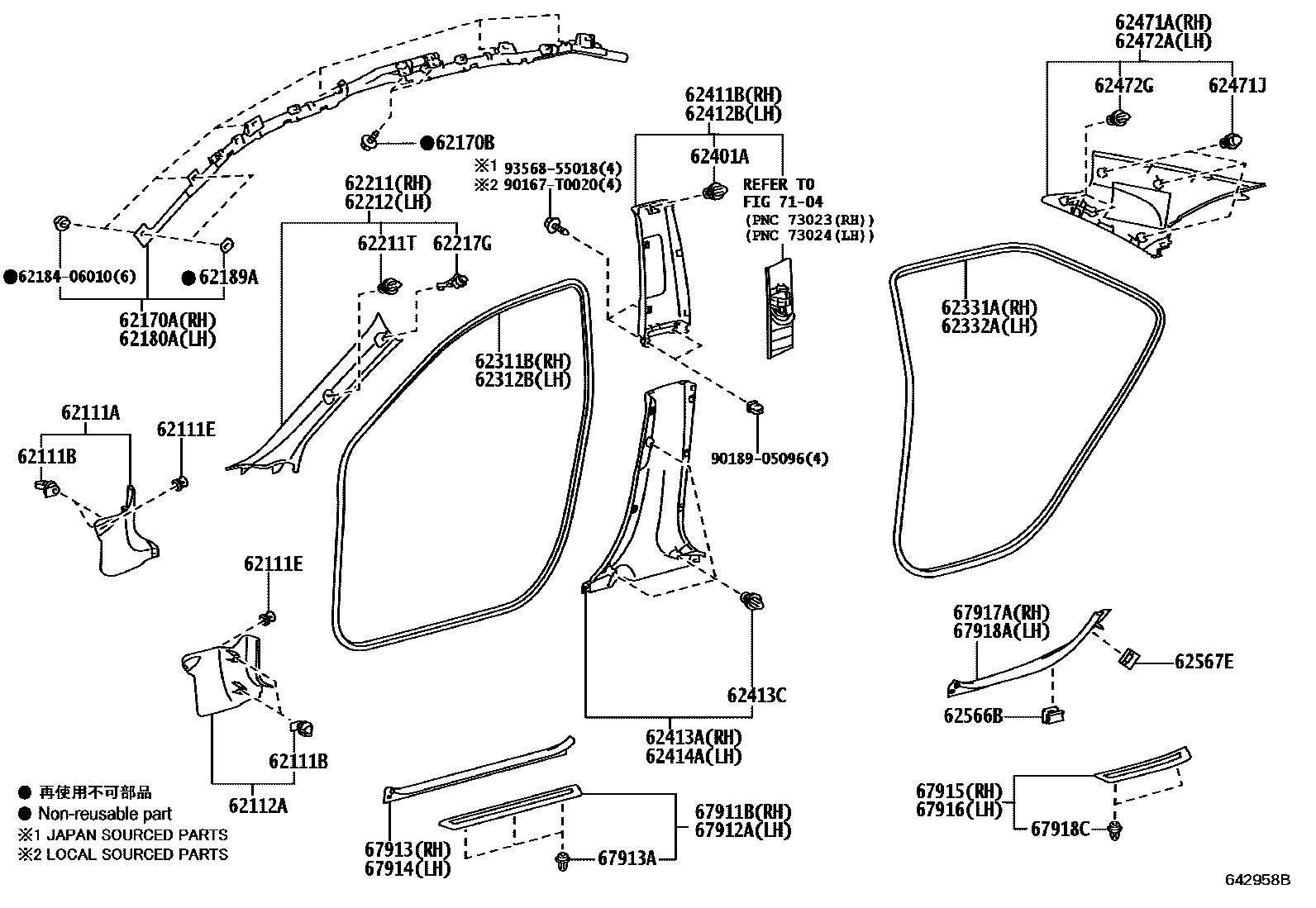

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1W(SRS CURTAIN SHIELD AIR BAG)0002 1W/O(SRS CURTAIN SHIELD AIR BA

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06130-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main62101-06130-B0iASV50,GSV50..GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

main62101-06130-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

main62101-06141-A0iASV50,AVV50,GSV50..ATRS,HBD,PRD201110-201710

IVORY,TRIM0#

main62101-06141-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main62101-06141-C0iASV50,AVV50,GSV50..ARL201110-201710

BLACK,TRIM2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212iASV50..SE201110-201605

62111ERETAINER, COWL SIDE TRIM

main90467-06193-C0iASV50,AVV50,GSV50201110-201710

BLACK

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06130-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main62102-06130-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main62102-06130-C0iASV50..GL201110-201710

BLACK,TRIM2#

main62102-06140-A0iASV50,AVV50,GSV50..ATRS,HBD,PRD201110-201710

IVORY,TRIM0#

main62102-06140-B0iASV50,GSV50..ALT,ATX201202-201307

GRAY,TRIM1#

main62102-06140-C0iASV50,AVV50,GSV50..ARL201110-201710

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-06060iGSV50;ASV50,AVV50..ARL201504

sub62170-33040

main62170-06060iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH

sub62170-33040

62170BBOLT, W/WASHER

main90119-06869iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH

main90119-06869iGSV50;ASV50,AVV50..ARL201504

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-06060iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH

sub62180-33040

main62180-06060iGSV50;ASV50,AVV50..ARL201504

sub62180-33040

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH

main62189-33010iGSV50;ASV50,AVV50..ARL201504

62211GARNISH, FRONT PILLAR, RH

main62210-06200-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main62210-06200-B0iASV50..GLX201110-201710

GRAY,TRIM1#,2#

main62210-06200-B0iASV50..GL201110-201710

GRAY,TRIM1#

main62210-06210-A0iASV50..6FC..(GLX,SE)201110-201710

IVORY,TRIM0#

main62210-06210-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,HBD201110-201504

VSC-WITH,IVORY,TRIM0#

main62210-06210-B0iASV50,AVV50,GSV50..ALT,ATRSX,ATX,HBD,PRD,SPVS201110-201710

GRAY,TRIM2#

main62210-06210-B0iASV50,GSV50..ALT,ATX201110-201710

GRAY,TRIM1#,2#

main62210-06210-B0iASV50,GSV50..ALT,ATX201110-201504

VSC-WITH,GRAY,TRIM1#

main62210-06210-B0iGSV50..GD,TOU201202-201710

GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iGSV50;ASV50,AVV50..ARL201110-201605

VSC-WITH

main90467-10161iASV50..6F201110-201211

62212GARNISH, FRONT PILLAR, LH

main62220-06200-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main62220-06200-B0iASV50..GLX;ASV50..6F..GL201110-201710

GRAY,TRIM1#,2#

main62220-06200-B0iASV50..6FC..GL201110-201710

GRAY,TRIM1#

main62220-06210-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,HBD201110-201710

IVORY,TRIM0#

main62220-06210-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,HBD201110-201504

VSC-WITH,IVORY,TRIM0#

main62220-06210-B0iASV50..ATRS201110-201710

GRAY,TRIM2#

main62220-06210-B0iASV50,GSV50..ALT,ATX201110-201710

GRAY,TRIM1#,2#

main62220-06210-B0iASV50,GSV50..ALT,ATX201110-201504

VSC-WITH,GRAY,TRIM1#

main62220-06210-B0iGSV50..GD,TOU201202-201710

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33040iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH

main62217-33040iGSV50;ASV50,AVV50..ARL201504

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06140-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

sub62311-06130

sub62311-33090

main62311-06140-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

sub62311-06130

sub62311-33090

main62311-06140-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201710

BLACK,TRIM2#

sub62311-06130

sub62311-33090

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06140-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

sub62312-06130

sub62312-33090

main62312-06140-B0iASV50,GSV50..ATRS,GD,GL,GLX201110-201710

GRAY,TRIM1#

sub62312-06130

sub62312-33090

main62312-06140-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

sub62312-06130

sub62312-33090

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06130-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

sub62331-06120

sub62331-33110

main62331-06130-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

sub62331-06120

sub62331-33110

main62331-06130-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

sub62331-06120

sub62331-33110

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06130-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

sub62332-06120

sub62332-33110

main62332-06130-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

sub62332-06120

sub62332-33110

main62332-06130-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

sub62332-06120

sub62332-33110

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iASV50..SE201110-201605

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06160-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY/IVORY,TRIM0#

main62410-06160-B0iASV50..ATRS,GL201110-201710

GRAY/GRAY,TRIM2#

main62410-06160-B0iASV50,AVV50,GSV50..ALT,ATRSX,ATX,HBD,PRD,SPVS201110-201710

GRAY/GRAY,TRIM1#,2#

main62410-06160-B0iASV50,GSV50..GD,GLX201110-201710

GRAY/GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06160-A0iASV50,AVV50,GSV50..ALT,ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY/IVORY,TRIM0#

main62420-06160-B0iASV50,GSV50..6FC..(ALT,ATX,GL)201110-201710

GRAY/GRAY,TRIM1#

main62420-06160-B0iASV50..6F..GL;ASV50,GSV50..GD,GLX,TOU201110-201710

GRAY/GRAY,TRIM2#

main62420-06160-B0iASV50..6F..GL;ASV50,GSV50..GD,GLX,TOU201110-201710

GRAY/GRAY,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06120-A0iASV50,AVV50,GSV50..ALT,ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

main62413-06120-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

main62413-06120-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201710

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iASV50..6F201110-201605

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06120-A0iASV50,AVV50,GSV50..ALT,ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

main62414-06120-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

main62414-06120-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06240-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main62470-06240-B0iASV50..GLX;ASV50..6F..GL201110-201710

GRAY,TRIM1#,2#

main62470-06240-B0iASV50..GLX;ASV50..6F..GL201110-201710

GRAY,TRIM1#

main62470-06250-A0iASV50..6FC..(GLX,SE)201110-201504

VSC-WITH,IVORY,TRIM0#

main62470-06250-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main62470-06250-B0iASV50..ATRS201202-201710

GRAY,TRIM1#

main62470-06250-B0iASV50..ATRS201110-201710

GRAY,TRIM2#

main62470-06250-B0iGSV50..GD201110-201710

GRAY,TRIM1#,2#

main62470-06250-B0iASV50,GSV50..ALT,ATX201110-201504

VSC-WITH,GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09236iASV50,AVV50,GSV50201110-201204

main90467-A0033iASV50..6F201205-201605

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06240-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main62480-06240-B0iASV50..GLX;ASV50..6F..GL201110-201710

GRAY,TRIM1#,2#

main62480-06240-B0iASV50..6FC..GL201110-201710

GRAY,TRIM1#

main62480-06250-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,HBD201110-201710

IVORY,TRIM0#

main62480-06250-A0iGSV50..GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,HBD201110-201504

VSC-WITH,IVORY,TRIM0#

main62480-06250-B0iGSV50..GD201202-201710

GRAY,TRIM1#

main62480-06250-B0iASV50,GSV50..ALT,ATX201110-201710

GRAY,TRIM1#,2#

main62480-06250-B0iASV50,GSV50..ALT,ATX201110-201710

GRAY,TRIM2#

main62480-06250-B0iASV50,GSV50..ALT,ATX201110-201504

VSC-WITH,GRAY,TRIM1#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-YC010iASV50..SE201110-201605

sub62566-32010

main62566-YC010iASV50..6FC..GCC201110-201504

DOOR SCUFF PLATE-WITH OUT

sub62566-32010

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

main62567-33040iASV50,AVV50,GSV50..ATM,CVT201110-201504

DOOR SCUFF PLATE-WITH OUT

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-06050iASV50..SE201110-201605

main67911-06050iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATX,GL,GLX,HBD,SE,TOU)201110-201504

DOOR SCUFF PLATE-WITH OUT

main67911-06050iASV50..ALT,GL,GLX;GSV50..ATX,SE,TOU201504

THAILAND SPEC

main67911-06050iASV50..ALT,GL,GLX;GSV50..ATX,SE,TOU201504

DECONTENT PACKAGE

main67911-06060iASV50,AVV50..ATRS,ATRSX,HBD201110-201504

main67911-06121iGSV50..GD,PRD,SPVS201202-201504

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-06050iASV50..SE201110-201605

main67912-06050iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATX,GL,GLX,HBD,SE,TOU)201110-201504

DOOR SCUFF PLATE-WITH OUT

main67912-06050iASV50..ATRSX201504

THAILAND SPEC

main67912-06050iASV50..ATRSX201504

DECONTENT PACKAGE

main67912-06060iASV50..ATRS,ATRSX201110-201504

main67912-06121iGSV50..GD,PRD,SPVS201202-201504

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06200-A0iASV50,GSV50..GD,GL,GLX,PRD,SE,TOU201110-201710

IVORY,TRIM0#

sub67913-33130

main67913-06200-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

sub67913-33130

main67913-06200-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201710

BLACK,TRIM2#

sub67913-33130

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iASV50,AVV50..ATRS,ATRSX,HBD201504

THAILAND SPEC

main90467-10162iASV50..6F201110-201605

main90467-10162iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATX,GD,GL,GLX,HBD,PRD,SE,SPVS,TOU)201110-201504

DOOR SCUFF PLATE-WITH OUT

main90467-10162iGSV50;ASV50..ALT,GL,GLX201504

DECONTENT PACKAGE

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06200-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main67914-06200-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main67914-06200-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-06030iASV50,AVV50,GSV50..ATM,CVT201110-201504

DOOR SCUFF PLATE-WITH OUT

main67915-06030iASV50..6F201110-201605

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-06030iASV50..6F201110-201605

main67916-06030iASV50,AVV50,GSV50..ATM,CVT201110-201504

DOOR SCUFF PLATE-WITH OUT

67917APLATE, REAR DOOR SCUFF, RH

main67917-06150-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

sub67917-33110

main67917-06150-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

sub67917-33110

main67917-06150-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201710

BLACK,TRIM2#

sub67917-33110

67918APLATE, REAR DOOR SCUFF, LH

main67918-06150-A0iASV50,GSV50..GD,GL,GLX,PRD,SE,TOU201110-201710

IVORY,TRIM0#

main67918-06150-B0iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

main67918-06150-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201710

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162iASV50..ATRSX201504

THAILAND SPEC

main90467-10162iASV50..ATRSX201504

DECONTENT PACKAGE

main90467-10162iASV50..6F201110-201605

main90467-10162iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATX,GD,GL,GLX,HBD,PRD,SE,SPVS,TOU)201110-201504

DOOR SCUFF PLATE-WITH OUT

7104

6218406010

main62184-06010

90167T0020

main90167-T0020

9018905096

main90189-05096

9356855018

main93568-55018

43 parts on this diagram · 2 diagrams in section
