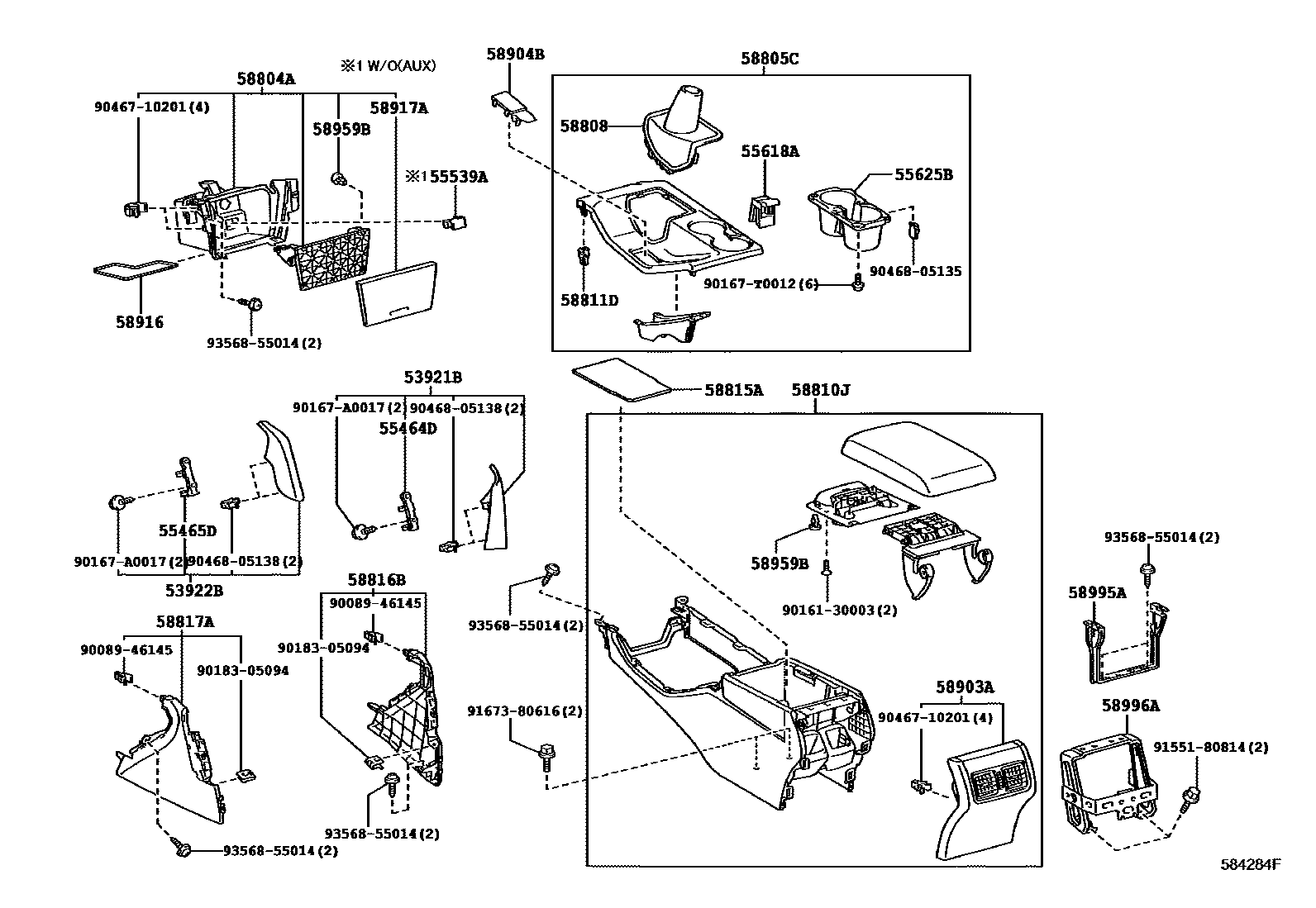

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

53921BGARNISH, FRONT PANEL, RH

main53921-06010-A0iASV50,AVV50..ATRS,GL,GLX,HBD,SE201110-201504

IVORY,TRIM0#

main53921-06010-B1iASV50..GL,GLX201110-201504

GRAY,TRIM1#

main53921-06010-C0iASV50,AVV50..(ATM,CVT)..(ALT,ATRS,ATRSX,GL,HBD)201110-201504

BLACK,TRIM2#

main53921-06030-C0iGSV50..SE201202-201710

BLACK,TRIM0#,2#

sub53921-06060

main53921-06030-C0iGSV50..SE201202-201504

BLACK,TRIM1#,2#

sub53921-06060

main53921-06030-C0iGSV50..SE201202-201710

BLACK,TRIM2#

sub53921-06060

main53921-06030-C0iGSV50..GD,TOU201202-201710

BLACK,TRIM0#

sub53921-06060

main53921-06030-C0iGSV50..GD,TOU201202-201710

BLACK,TRIM0#,1#

sub53921-06060

main53921-06080-A0iASV50,AVV50..ATRS,GL,GLX,HBD,SE201504-201710

IVORY,TRIM0#

main53921-06080-B0iASV50..ATRS,GL,GLX201504-201710

GRAY,TRIM1#

main53921-06080-C0iASV50,AVV50..ALT,ATRS,ATRSX,GL,HBD201504-201710

BLACK,TRIM2#

53922BGARNISH, FRONT PANEL, LH

main53922-06010-A0iASV50,AVV50..ATRS,GL,GLX,HBD,SE201110-201504

IVORY,TRIM0#

main53922-06010-B1iASV50..GL,GLX201110-201504

GRAY,TRIM1#

main53922-06010-C0iASV50,AVV50..(ATM,CVT)..(ALT,ATRS,ATRSX,GL,HBD)201110-201504

BLACK,TRIM2#

main53922-06030-C0iGSV50..SE201202-201710

BLACK,TRIM0#

sub53922-06060

main53922-06030-C0iGSV50..SE201202-201710

BLACK,TRIM0#,1#

sub53922-06060

main53922-06030-C0iGSV50..SE201202-201710

BLACK,TRIM0#,2#

sub53922-06060

main53922-06030-C0iGSV50..SE201202-201504

BLACK,TRIM1#,2#

sub53922-06060

main53922-06030-C0iGSV50..SE201202-201710

BLACK,TRIM2#

sub53922-06060

main53922-06080-A0iASV50,AVV50..ATRS,GL,GLX,HBD,SE201504-201710

IVORY,TRIM0#

main53922-06080-B0iASV50..ATRS,GL,GLX201504-201710

GRAY,TRIM1#

main53922-06080-C0iASV50,AVV50..ALT,ATRS,ATRSX,GL,HBD201504-201710

BLACK,TRIM2#

55464DINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-06010iASV50..6F201110-201504

55465DINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-06010iASV50..6F201110-201504

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0iASV50..ATRS201110-201701

LIMITED PACKAGE,BLACK

sub55539-52060

main55539-52060-C0iASV50,AVV50..GL,HBD;GSV50..ATX,SE,SPVS,TOU201110-201701

BLACK

sub55539-52060

main55539-52060-C0iASV50,AVV50..GL,HBD;GSV50..ATX,SE,SPVS,TOU201110-201504

SUN SHADE-REAR WINDOW(POWER),BLACK

sub55539-52060

main55539-52060-C4iASV50..ATRS201701-201710

BLACK

sub55539-52060

main55539-52060-C4iASV50..ATRS201701-201710

LIMITED PACKAGE,BLACK

sub55539-52060

55618AHOLDER, CONSOLE BOX CUP

main55618-06110iASV50,AVV50..ATM,CVT201110-201605

sub55618-06050

main55618-06120iASV50..6F201110-201211

main55618-06150iGSV50201202-201504

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-06120iASV50..6FC..GCC201110-201605

main55625-06130iASV50..6F201110-201211

main55625-06140iASV50,AVV50..ARL201110-201504

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-06410iASV50..6F201110-201605

sub58804-06370

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06270-C1iASV50..GL201110-201605

BLACK,TRIM0#,1#,2#

main58805-06290-E0iASV50..6FC..GLX201110-201504

BROWN,TRIM0#,1#

main58805-06300-C1iASV50..6F..(GL,GLX)201110-201211

BLACK,TRIM0#,1#

main58805-06300-C1iASV50..6F..SE201110-201211

BLACK,TRIM0#

main58805-06310-C1iASV50..ALT201504-201710

BLACK,TRIM0#,1#,2#

main58805-06310-C1iASV50..ATRSX201110-201710

BLACK,TRIM2#

main58805-06310-C1iASV50..ATRS201110-201504

BLACK,TRIM0#,2#

main58805-06330-C1iASV50..ATRSX201605-201710

BLACK,TRIM2#

main58805-06340-B0iAVV50201201-201404

SILVER,TRIM0#,2#

main58805-06430-B1iGSV50..TOU201202-201504

GRAY,TRIM0#,1#

main58805-06440-B1iGSV50..ATX201202-201504

GRAY,TRIM1#,2#

main58805-06440-B1iGSV50..PRD201202-201504

GRAY,TRIM0#,2#

main58805-06450-E0iGSV50..GD201202-201504

BROWN,TRIM0#,1#

main58805-06470-B0iGSV50..SE201202-201504

SILVER,TRIM0#

main58805-06480-B0iGSV50..SPVS201202-201504

SILVER,TRIM2#

main58805-06520-B0iGSV50..TOU201504-201710

GRAY,TRIM0#

main58805-06530-B0iGSV50..SE201504-201710

SILVER,TRIM0#

main58805-06540-B0iASV50..SE201110-201605

SILVER,TRIM0#

main58805-06650-C0iASV50..GLX201504-201710

BLACK WOOD,TRIM0#,1#

main58805-06660-C0iGSV50..GD201504-201710

BLACK WOOD,TRIM0#,1#

main58805-06670-C0iGSV50..PRD201504-201710

BLACK WOOD,TRIM0#,2#

main58805-06680-C0iAVV50201405-201710

BLACK,TRIM0#,2#

main58805-06700-B0iGSV50..ATX201504-201710

GRAY,TRIM2#

main58805-06710-B0iGSV50..SPVS201504-201710

SILVER,TRIM2#

main58805-06D10-C0iASV50..GL201605-201710

BLACK,TRIM0#,1#,2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-33090iASV50..6F201110-201211

58810JBOX ASSY, CONSOLE

main58810-06341-A0iASV50,AVV50..ATRS,GL,GLX,HBD,SE201110-201710

IVORY,TRIM0#

main58810-06341-B0iASV50..ATRS,GL,GLX201110-201710

GRAY,TRIM1#

main58810-06341-C0iASV50,AVV50..(ATM,CVT)..(ALT,ATRS,ATRSX,GL,HBD)201110-201710

BLACK,TRIM2#

main58810-06350-A0iASV50..6F201110-201211

IVORY,TRIM0#

main58810-06350-B0iASV50..6F..(GL,GLX)201110-201211

GRAY,TRIM1#

main58810-06451-A0iGSV50..GD,PRD,SE,TOU201202-201710

IVORY,TRIM0#

main58810-06451-B0iGSV50..GD201202-201710

GRAY,TRIM1#

main58810-06451-C0iGSV50..ARL201202-201710

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main55345-06020iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201401-201605

sub90467-10203

main90089-46145iASV50..6F201110-201312

main90467-10203iGSV50201202-201312

58815ACARPET, CONSOLE BOX

main58815-06110iASV50,AVV50,GSV50..ATM,CVT201110-201605

main58815-06120iASV50..6F201110-201211

58816BINSERT, CONSOLE BOX

main58816-06060-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main58816-06060-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main58816-06060-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

main58816-06100-C0iGSV50..SE201202-201710

BLACK,TRIM0#

main58816-06100-C0iGSV50..SE201202-201710

BLACK,TRIM0#,1#

main58816-06110-A0iASV50,AVV50..ALT,ATRS,HBD201110-201605

IVORY,TRIM0#

main58816-06110-C0iASV50,AVV50..ARL201110-201710

BLACK,TRIM2#

main58816-06120-C0iGSV50..PRD201202-201710

BLACK,TRIM0#,2#

sub58816-33040

main58816-06120-C0iGSV50..SPVS201202-201710

BLACK,TRIM2#

sub58816-33040

main58816-06120-C0iGSV50..SPVS201202-201504

BLACK,TRIM1#,2#

sub58816-33040

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-06050-A0iASV50..GCC201110-201710

IVORY,TRIM0#

main58817-06050-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main58817-06050-C0iASV50..GL201110-201710

BLACK,TRIM2#

main58817-06080-C0iGSV50..GD201202-201710

BLACK,TRIM0#

sub58817-33030

main58817-06080-C0iGSV50..SE,TOU201202-201710

BLACK,TRIM0#,1#

sub58817-33030

main58817-06090-A0iASV50,AVV50..ALT,ATRS,HBD201110-201605

IVORY,TRIM0#

main58817-06090-C0iASV50,AVV50..ARL201110-201710

BLACK,TRIM2#

main58817-06100-C0iGSV50..SPVS201202-201710

BLACK,TRIM2#

sub58817-33040

main58817-06100-C0iGSV50..PRD201202-201710

BLACK,TRIM0#,2#

sub58817-33040

main58817-06100-C0iGSV50..PRD201202-201504

BLACK,TRIM1#,2#

sub58817-33040

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06161-A0iASV50,AVV50..(ATM,CVT)..(ATRS,GL,GLX,HBD,SE)201110-201710

IVORY,TRIM0#

sub58903-06390

main58903-06161-B0iASV50..ATRS,GL,GLX201110-201710

GRAY,TRIM1#

sub58903-06390

main58903-06161-C0iASV50,AVV50..(ATM,CVT)..(ALT,ATRS,ATRSX,GL,HBD)201110-201710

BLACK,TRIM2#

sub58903-06390

main58903-06170-A0iASV50..6F201110-201211

IVORY,TRIM0#

main58903-06170-B0iASV50..6F..(GL,GLX)201110-201211

GRAY,TRIM1#

main58903-06271-A0iGSV50..GD,PRD,SE,TOU201202-201710

IVORY,TRIM0#

main58903-06271-B0iGSV50..GD201202-201710

GRAY,TRIM1#

main58903-06271-C0iGSV50..ARL201202-201710

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-06010-C0iASV50..6F..(GL,GLX)201110-201211

BLACK,TRIM0#

main58904-06010-C0iASV50..6F..SE201110-201211

BLACK,TRIM0#,1#

58916MAT, BOX BOTTOM

main58916-06060iASV50..6F201110-201605

58917ACOVER, CONSOLE BOX, REAR

main58917-06070iASV50..6F201110-201605

sub58917-06050

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iASV50,AVV50,GSV50..ATM,CVT201110-201605

main58959-60060iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

THAILAND SPEC

main58959-60060iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

LIMITED PACKAGE

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06130iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

sub58995-06140

main58995-06150iASV50..6F201110-201211

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-06070iASV50,GSV50..6FC..GCC201110-201605

sub58996-06110

main58996-06080iASV50..6F201110-201211

9008946145

main90089-46145

9016130003

main90161-30003

90167A0017

main90167-A0017

90167T0012

main90167-T0012

9018305094

main90183-05094

9046710201

main90467-10201

9046805135

main90468-05135

9046805138

main90468-05138

9155180814

main91551-80814

9167380616

main91673-80616

9356855014

main93568-55014
