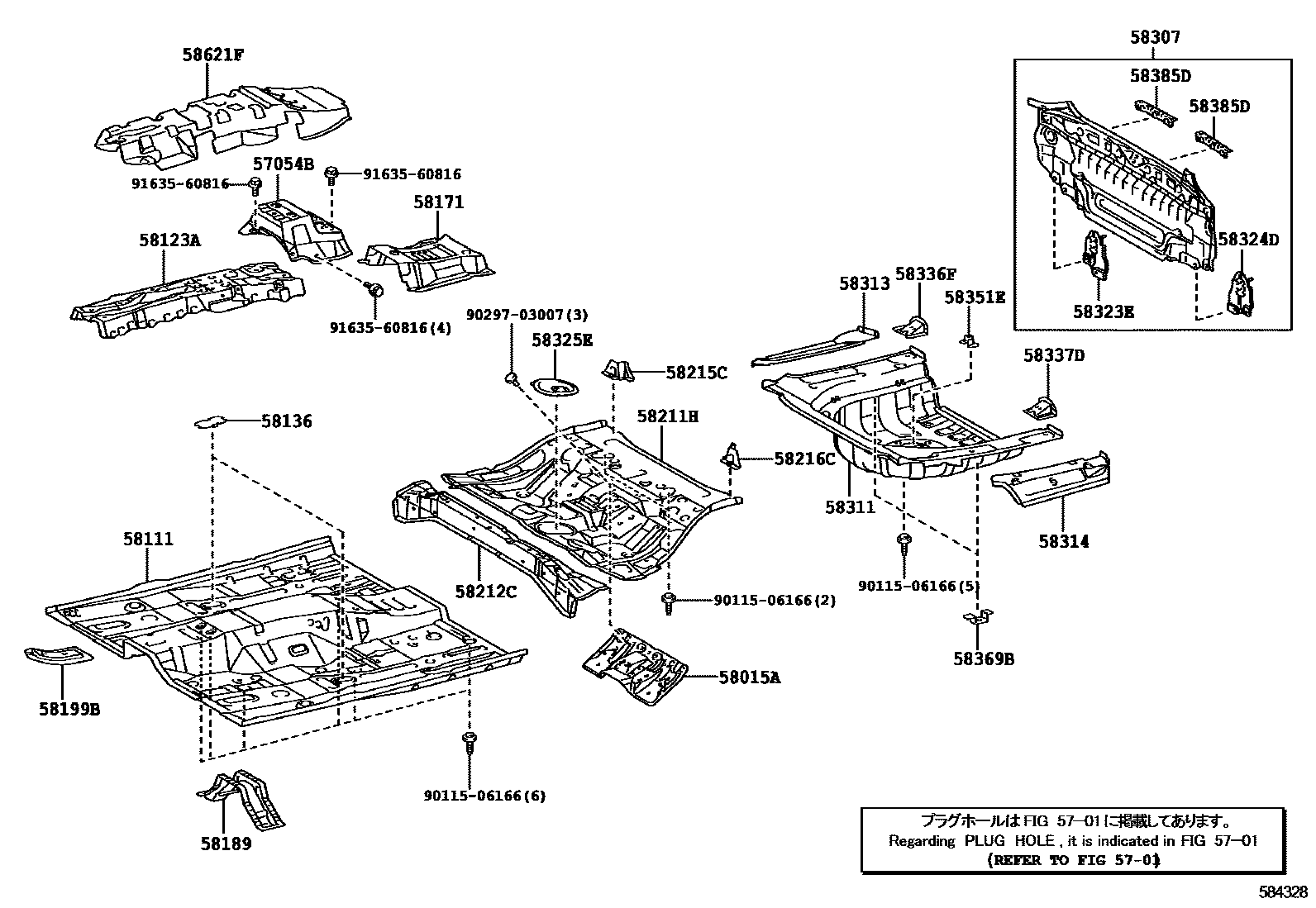

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1FLOOR PANEL 0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER

5701HOLE PLUG

→ Go to FIG 57-01

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main57054-06050iASV50,AVV50,GSV50..ARL201110-201504

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-06080supersedes 58015-06100iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU; ASV50..GL201110-201504

REAR SEAT-6:4 FOLDING

58111PAN, FRONT FLOOR

main58111-06110iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06111iASV50..SE201504-201605

58136COVER, FRONT FLOOR HOLE

main58136-06020×2iASV50,AVV50,GSV50201110-201504

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-06090iASV50..6F201110-201211

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06130iASV50..6F201110-201211

58199BREINFORCEMENT, FOOTREST

main58199-06030iASV50,AVV50,GSV50..ARL201110-201504

58211HPAN, CENTER FLOOR

main58211-06130iGSV50..GD; GSV50..PRD,SPVS201202-201504

LIMITED PACKAGE

main58211-06131iGSV50..GD,PRD,SE,SPVS201605

main58211-06150iASV50;GSV50..ATX,SPVS,TOU201504-201605

main58211-06151iASV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,GLX,TOU201605

main58211-06190iAVV50201201-201411

main58211-06191iAVV50201504-201605

main58211-06192iAVV50201605

58212CPAN, CENTER FLOOR, FRONT

main58212-06050iASV50,AVV50,GSV50201110-201504

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-33040iASV50..SE201504-201605

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-33030iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06160iASV50..6F201110-201211

main58307-33160iASV50,AVV50,GSV50201609

58311PAN, REAR FLOOR

main58311-06111iASV50..6F201110-201211

main58311-06112iASV50..SE201504-201605

58313PANEL, REAR FLOOR SIDE, RH

main58313-06140iASV50..6F201110-201211

main58313-06150iAVV50201201-201504

58314PANEL, REAR FLOOR SIDE, LH

main58314-06130iASV50..6F201110-201211

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-06051iASV50..6F201110-201211

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-06051iASV50..6F201110-201211

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06030iASV50..6F201110-201211

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-06050iASV50,AVV50,GSV50..ATM,CVT201110-201504

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-06040iASV50..6F201110-201211

58351EBRACKET, SPARE WHEEL CLAMP

main58351-YC010iASV50..6F201110-201211

58369BBRACKET, FUEL TUBE, NO.3

main58369-33010×2iASV50..6F201110-201211

58385DBRACKET, REAR BUMPER COVER

main58385-06090×2iASV50..6F201110-201211

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06110iASV50,GSV50..GCC201110-201501

main58621-06180iASV50,AVV50,GSV50..ARL201110-201504

9011506166

main90115-06166

9029703007

main90297-03007

9163560816

main91635-60816

29 parts on this diagram · 5 diagrams in section
