INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE 0013 1 0014 1DRIVER SIDE 0015 1CENTER 0016 1PASSENGER SIDE

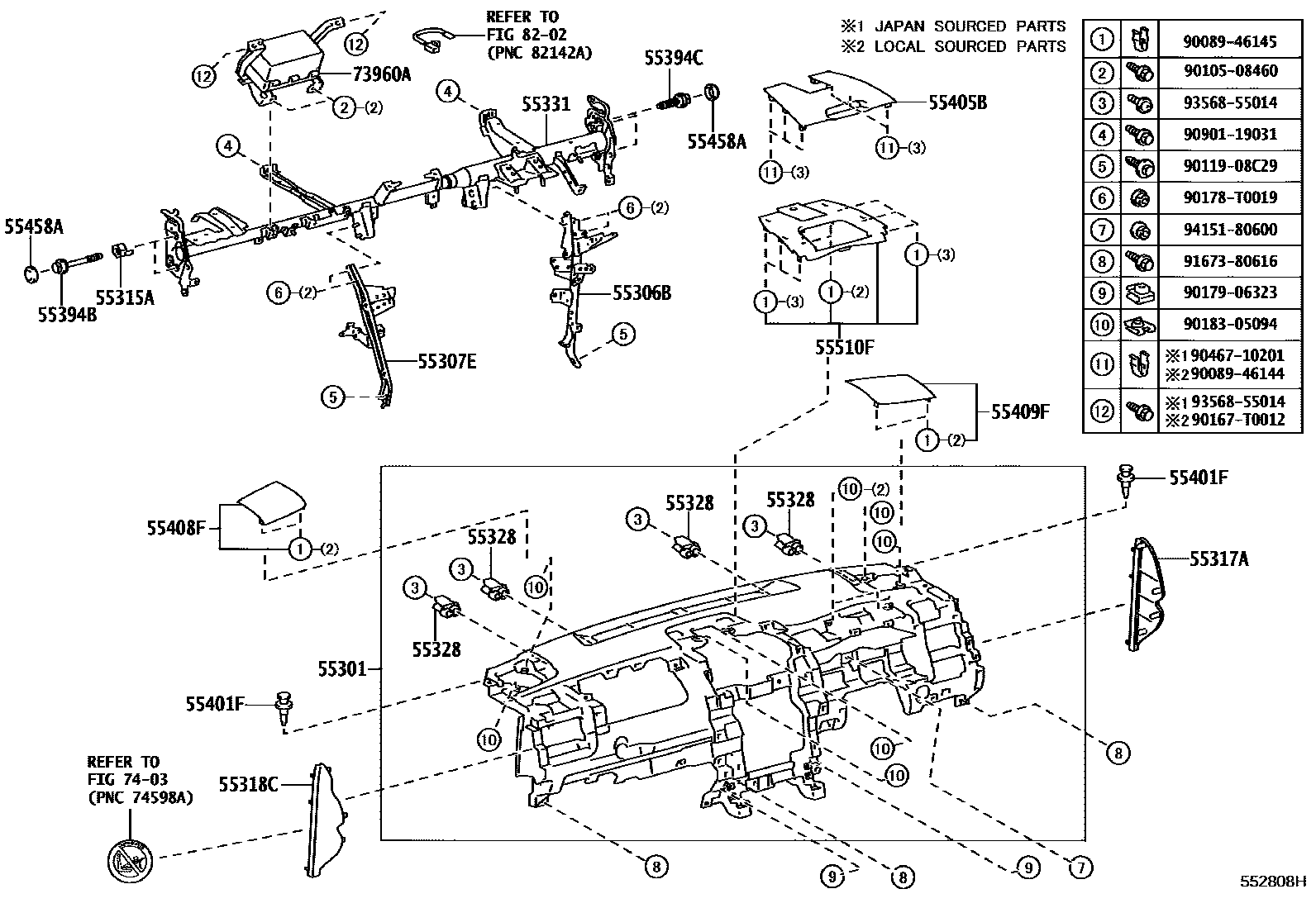

55301PANEL SUB-ASSY, INSTRUMENT

main55301-06280-C0iASV50,GSV50..SE; ASV50..6F..GL;ASV50,GSV50..GD,GLX,TOU; ASV50..6FC..GL201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#

main55301-06290-C0iASV50,GSV50..ALT,ATRSX,ATX,SPVS; ASV50..ATRS; GSV50..PRD201504-201710

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55301-06300-C0iAVV50201201-201504

BLACK,TRIM0#,2#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-06080iGSV50..GCC;ASV50..GL,GLX201504

main55306-06090iASV50,AVV50,GSV50..ARL201504

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06080iGSV50..GCC;ASV50..GL,GLX201504

main55307-06090iASV50,AVV50,GSV50..ARL201504

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iASV50,AVV50,GSV50..ATM,CVT201110-201504

55317APANEL, INSTRUMENT SIDE, RH

main55317-06130-C0iASV50,AVV50..ATRS,HBD; ASV50..6FC..(ALT,GL); ASV50..ATRSX; ASV50..GLX;ASV50..6F..GL; ASV50..SE201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55317-06290-C0iGSV50..ATX,SPVS; GSV50..GD; GSV50..PRD; GSV50..SE,TOU201504-201710

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06110-C0iASV50,AVV50..ATRS,HBD; ASV50..6FC..(ALT,GL); ASV50..ATRSX; ASV50..GLX;ASV50..6F..GL; ASV50..SE201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55318-06190-C0iGSV50..ATX,SPVS; GSV50..GD; GSV50..PRD; GSV50..SE,TOU201504-201710

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iASV50,AVV50,GSV50..ATM,CVT201110-201504

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06310iASV50,GSV50..6FC..GCC201110-201504

main55330-06320iASV50,AVV50,GSV50..ARL201110-201504

main55330-06440iASV50,AVV50,GSV50..ARL201504-201710

55394BBOLT, INSTRUMENT PANEL

main90119-T0358×2iASV50,AVV50,GSV50201504-201710

55394CBOLT, INSTRUMENT PANEL

main90119-T0357×3iASV50,AVV50,GSV50201504-201710

55401FCLIP(FOR SAFETY PAD)

main52161-02020×2iASV50..6F201110-201211

main52161-16010×2iASV50,AVV50,GSV50201609-201710

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-06150iASV50,AVV50201110-201504

main55405-06160-C0iGSV50..ATX; GSV50..GD,TOU; GSV50..PRD; GSV50..SE; GSV50..SPVS201202-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06080-C0iASV50,AVV50,GSV50..ATRS,HBD,PRD; ASV50,GSV50..ATRSX,SPVS; ASV50,GSV50..SE; ASV50..6F..GL;ASV50,GSV50..GD,GLX,TOU; ASV50..6FC..(ALT,GL)201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06080-C0iASV50,AVV50,GSV50..ATRS,HBD,PRD; ASV50,GSV50..ATRSX,SPVS; ASV50,GSV50..SE; ASV50..6F..GL;ASV50,GSV50..GD,GLX,TOU; ASV50..6FC..(ALT,GL)201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×5iASV50,AVV50,GSV50201504-201710

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-06020-C0iASV50,AVV50..ATRS,HBD; ASV50..6FC..(ALT,GL); ASV50..ATRSX; ASV50..GLX;ASV50..6F..GL; ASV50..SE201110-201504

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55510-06060-C0iGSV50..ATX,SPVS; GSV50..GD; GSV50..PRD; GSV50..SE,TOU201504-201710

BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06190iASV50..6F201110-201211

9008946144

main90089-46144

9008946145

main90089-46145

9010508460

main90105-08460

9011908C29

main90119-08C29

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9017906323

main90179-06323

9018305094

main90183-05094

9046710201

main90467-10201

9090119031

main90901-19031

9167380616

main91673-80616

9356855014

main93568-55014

9415180600

main94151-80600

30 parts on this diagram · 16 diagrams in section
