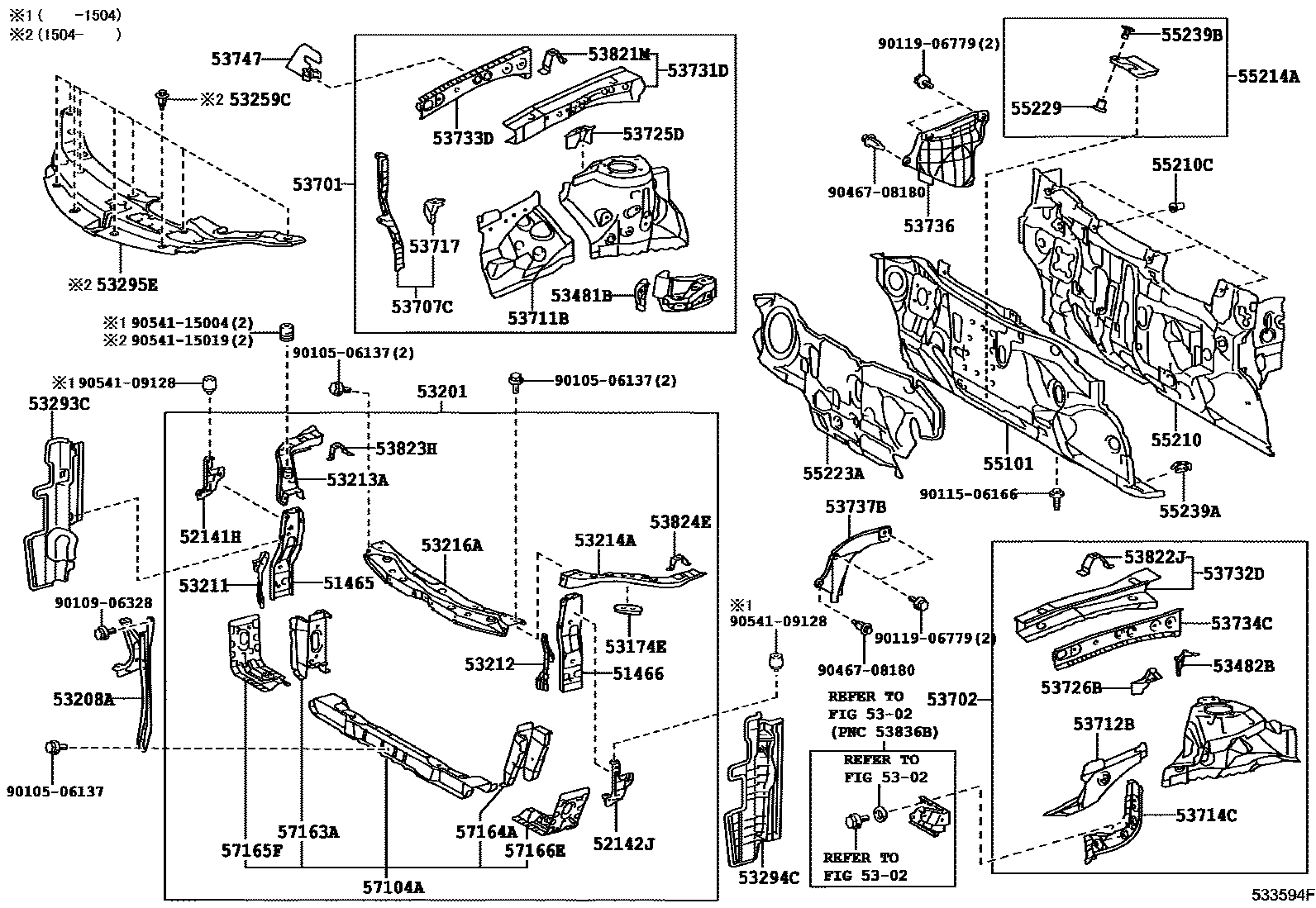

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-06120iASV50..SE201504-201605

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-06120iASV50..SE201504-201605

52141HARM, FRONT BUMPER, UPPER RH

main52141-06110iASV50..6F201110-201211

main52141-06160iASV50..SE201504-201605

52142JARM, FRONT BUMPER, UPPER LH

main52142-06090iGSV50201504

main52142-06150iASV50..SE201504-201605

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53174EBRACKET, RADIATOR SUPPORT SIDE

main53174-06040iASV50..6F201110-201211

53201SUPPORT SUB-ASSY, RADIATOR

main53201-06190iASV50..SE201504-201605

main53201-06231iASV50..6F201110-201211

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-06090iASV50..6F201110-201211

main53208-06160iASV50..SE201504-201605

main53208-06170iGSV50201504

53211SUPPORT, RADIATOR, RH

main53211-06110iASV50,AVV50,GSV50..ATM,CVT201110-201504

53212SUPPORT, RADIATOR, LH

main53212-06110iASV50..6F201110-201211

53213ASUPPORT, RADIATOR, UPPER RH

main53213-06110iASV50..6F201110-201211

main53213-06111iASV50,AVV50,GSV50201404-201504

53214ASUPPORT, RADIATOR, UPPER LH

main53214-06130iASV50..6F201110-201211

main53214-06131iASV50,AVV50,GSV50201404-201504

53216ASUPPORT, RADIATOR, UPPER

main53216-06140iASV50..6F201110-201211

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×7iAVV50201201-201209

main90467-07217×7iAVV50; GSV50201210-201504

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06220iASV50..6F..GL201110-201211

main53293-06230iASV50..6FC..(ATRS,ATRSX,SE)201110-201504

main53293-06240iAVV50201201-201504

main53293-06310iGSV50201202-201504

main53293-06450iASV50..SE201504-201605

main53293-06460iAVV50201504

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06210iASV50..6F..GL201110-201211

main53294-06220iASV50..6FC..(ATRS,ATRSX,SE)201110-201504

main53294-06230iAVV50201201-201504

main53294-06300iGSV50201504

main53294-06450iASV50..SE201504-201605

main53294-06460iAVV50201504

main53294-06330iASV50..6FC..GL201110-201504

HEAVY PACKAGE

main53294-06480iASV50..GL201504

HEAVY PACKAGE; UAE TAXI & HEAVY PACK SPEC

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06110iGSV50201504

main53295-06120iAVV50201201-201504

main53295-06170iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

53481BBRACKET, HOOD SUPPORT, RH

main53481-33050iASV50,AVV50,GSV50201110-201504

53482BBRACKET, HOOD SUPPORT LH

main53482-33040iASV50,AVV50,GSV50201110-201504

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06180iASV50,AVV50,GSV50201110-201504

main53701-06240iASV50,AVV50201504-201710

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06160iASV50,AVV50,GSV50201110-201504

main53702-06220iASV50,AVV50201504-201710

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-06010iASV50..6F201110-201211

main53707-33010iASV50,AVV50,GSV50201609

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06130iASV50..6F201110-201211

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06090iASV50..6F201110-201211

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-06100iASV50..6F201110-201211

53717PLATE, FENDER APRON, RH

main53719-33010iASV50..6F201110-201211

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-33020iASV50..6F201110-201211

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-33020iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06905iGSV50201504

main53731-06907iASV50..SE201504-201605

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06904iASV50,AVV50,GSV50..ATM,CVT201110-201504

main53732-06906iASV50..SE201504-201605

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06100iASV50,AVV50,GSV50..ATM,CVT201110-201504

main53733-33050iASV50,AVV50,GSV50201609

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06100iASV50..6F201110-201211

main53734-33050iASV50,AVV50,GSV50201609

53736SEAL, FRONT FENDER APRON, RH

main53736-06050iASV50..6F201110-201211

53737BSEAL, FRONT FENDER APRON, LH

main53737-06050iASV50..SE201504-201605

main53737-06060iASV50..6F201110-201211

53747PLATE, AIR SEALED, RH

main53747-06020iASV50,AVV50,GSV50..ARL201110-201504

main53747-06030iASV50,AVV50..ARL201504

53821MBRACKET, FRONT FENDER, REAR NO.1 RH

main53821-06120iASV50,AVV50201504-201711

main53821-33050iGSV50201504

53822JBRACKET, FRONT FENDER, REAR NO.1 LH

main53822-06120iASV50,AVV50201504-201711

main53822-33040iASV50,AVV50,GSV50..ATM,CVT201110-201504

53823HGUSSET, FRONT FENDER, RH

main53823-06070iGSV50201504

main53823-06130iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

53824EGUSSET, FRONT FENDER, LH

main53824-06070iASV50,AVV50,GSV50..ATM,CVT201110-201504

main53824-06130iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

55101PANEL SUB-ASSY, DASH

main55101-06480iASV50,AVV50,GSV50..ARL201110-201504

main55101-06490iASV50,GSV50..GCC201504-201710

main55101-06500iASV50..6F201110-201211

55210INSULATOR ASSY, DASH PANEL

main55210-06340iASV50..SE201504-201605

main55210-06380iASV50,GSV50..ARL201504

main55210-06391iAVV50201201-201504

55210CCLIP

main90467-06197×4iASV50..6F201110-201211

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-06051iGSV50..GCC;ASV50..GL,GLX201504

main55214-06070iASV50,AVV50,GSV50..ARL201504

main55214-06120iASV50..6F201110-201211

55223AINSULATOR, DASH PANEL, OUTER

main55223-06310iASV50..ARL201110-201407

main55223-06320iAVV50201201-201407

main55223-06330iASV50..6FC..GCC201110-201407

main55223-06340iGSV50..GCC201110-201407

main55223-06420iGSV50..ARL201202-201407

main55223-06440iASV50..ARL201408-201504

main55223-06460iAVV50201504-201510

main55223-06470iASV50..GCC201504-201510

main55223-06480iGSV50..GCC201408-201504

main55223-06490iGSV50..ARL201408-201504

main55223-33190iGSV50..GCC201510

W/O(CCC MARK)

main55223-33191iGSV50..GCC201601

W(CCC MARK)

main55223-33200iASV50..GL,GLX201510

main55223-33210iASV50..ARL201510

main55223-33220iAVV50201510

main55223-33280iGSV50..ARL201510

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48020iASV50,AVV50,GSV50..ARL; GSV50..GCC;ASV50..GL,GLX201504

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06010×2iASV50,AVV50,GSV50201110-201504

55239BPLATE, FRONT FLOOR FOOTREST, NO.2

main55239-48020×2iASV50..6F201110-201211

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-06041iASV50..6F201110-201211

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-06050iASV50..6F201110-201211

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-06040iASV50..6F201110-201211

57165FREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-06041iASV50..6F201110-201211

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-06040iASV50..6F201110-201211

9010506137

main90105-06137

9010906328

main90109-06328

9011506166

main90115-06166

9011906779

main90119-06779

9046708180

main90467-08180

9054109128

main90541-09128

9054115004

main90541-15004

9054115019

main90541-15019

60 parts on this diagram · 8 diagrams in section
