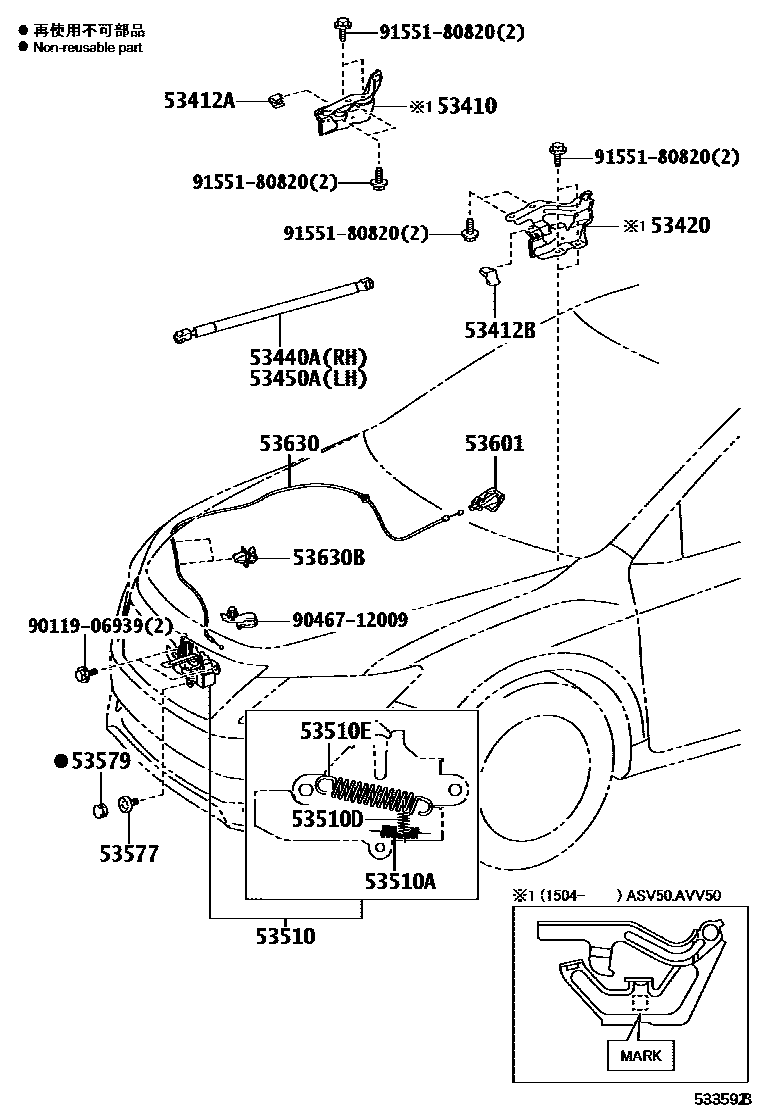

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-06200iASV50,AVV50,GSV50..ATM,CVT201110-201504

main53410-06330iASV50,AVV50201504-201710

MARK = 0

53412ACUSHION, HOOD HINGE SEAT RH

main53412-33090iASV50..6F201110-201211

53412BCUSHION, HOOD HINGE SEAT LH

main53412-33100iASV50..6F201110-201211

53420HINGE ASSY, HOOD, LH

main53420-06200iASV50..6F201110-201211

main53420-06330iASV50,AVV50201504-201710

MARK = 0

53440ASUPPORT ASSY, HOOD, RH

main53440-06100iASV50,AVV50..ATM,CVT201110-201504

main53440-06140iGSV50201202-201504

53450ASUPPORT ASSY, HOOD, LH

main53450-06090iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

main53450-06130iGSV50201504

53510LOCK ASSY, HOOD

main53510-06210iASV50..GCC201110-201504

main53510-06220iASV50,AVV50..ARL201110-201504

main53510-06260iGSV50..GCC201202-201502

main53510-06261iGSV50..GCC201504

main53510-06270iGSV50..ARL201202-201502

main53510-06271iGSV50..ARL201503-201504

main53510-06300iASV50..SE201504-201605

main53510-06310iASV50,AVV50..ARL201504

main53510-06321iGSV50..ARL201504

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASV50,AVV50,GSV50201110-201504

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iASV50,AVV50,GSV50201110-201504

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iASV50..6F201110-201211

53579CAP, HOOD LOCK NUT

main53579-50010iASV50,AVV50,GSV50..ATM,CVT201110-201504

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iASV50,AVV50,GSV50..ALT,ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201504

IVORY,TRIM0#

main53601-52010-B9iASV50,GSV50..ALT,ATX,GD,GL,GLX,TOU201202-201504

GRAY,TRIM1#

main53601-52010-C0iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS)201110-201504

BLACK,TRIM2#

main53601-52010-C1iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201612-201710

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06170iASV50..6F201110-201211

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iASV50..6F201110-201211

9011906939

main90119-06939

9046712009

main90467-12009

9155180820

main91551-80820

18 parts on this diagram · 2 diagrams in section
