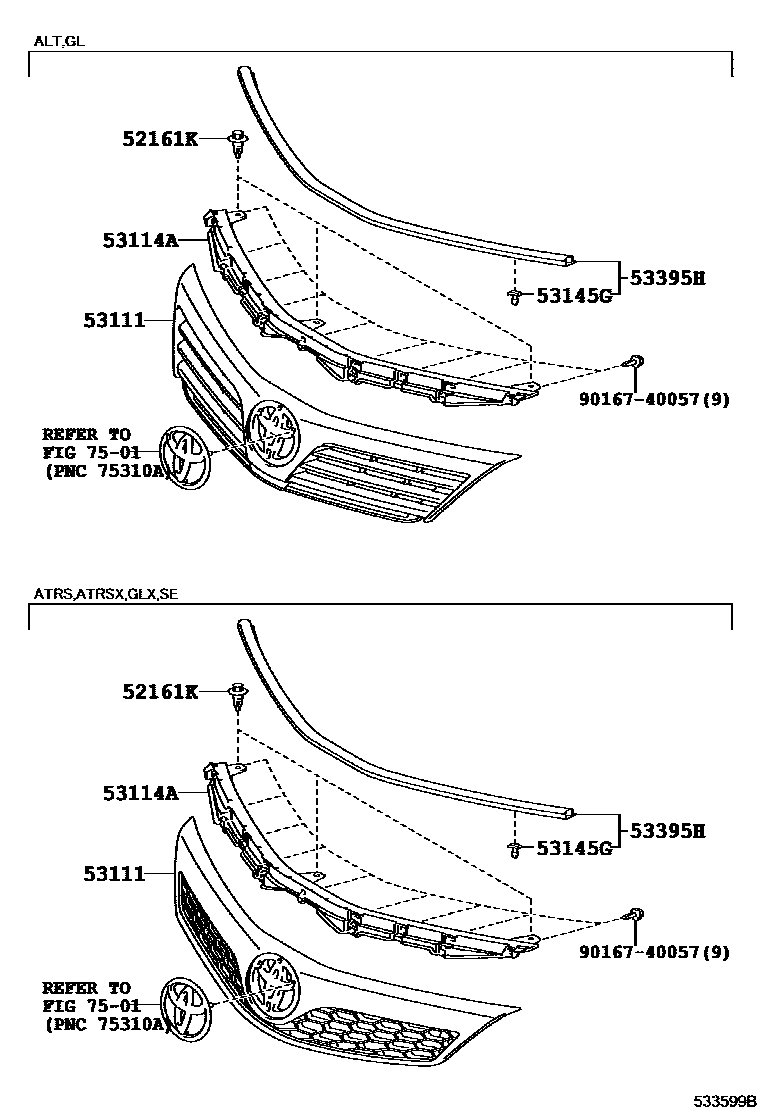

RADIATOR GRILLE

0001 1 0003 1 0005 1RZ PACKAGE 0006 1 0007 1

52161KPIECE, FRONT BUMPER

main52161-16010×3iASV50..6F201110-201211

53111GRILLE, RADIATOR

main53101-06400iAVV50201201-201504

PLATED

main53101-06550iGSV50..ATX,GD,PRD,TOU201202-201504

PLATED

main53101-06690supersedes 53111-06905iASV50..GLX201307-201504

PLATED

main53111-06580iGSV50..PRD201504-201710

PLATED

main53111-06620iGSV50..GD,TOU201504-201710

PLATED

main53111-06901iASV50..ALT;ASV50..6F..GL201110-201312

PAINT REQ.

main53111-06903iASV50..6FC..GLX201110-201307

PAINT REQ.

main53111-06904iGSV50..ATX; GSV50..SE,SPVS201202-201504

PAINT REQ.; PAINT REQ.,SE PACKAGE

main53111-06905iASV50..ALT201312-201504

PAINT REQ.

main53101-06A60-A0iASV50..ALT,SE201405-201504

RZ PACKAGE,DIAMOND WHITE,061

main53101-06A60-B0iASV50..ALT,SE201405-201504

RZ PACKAGE,SILVER ME.,1F7

main53101-06A60-B1iASV50..ALT,SE201405-201504

RZ PACKAGE,GRAY ME.,1G3

main53101-06A60-D0iASV50..ALT,SE201405-201504

RZ PACKAGE,RED M.M.,3R3

main53101-06A60-E0iASV50..ALT201405-201504

RZ PACKAGE,ORANGE ME.,4R8

main53101-06A60-J0iASV50..ALT,SE201405-201504

RZ PACKAGE,BLUE M.M.,8L5

53114AGRILLE, RADIATOR, INNER

main53114-06040iASV50..6F201110-201211

53145GCLIP, RADIATOR GRILLE

main53145-0K010×15iASV50,AVV50201306-201504

main53145-60030×15iASV50,AVV50..ATM,CVT201110-201305

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-06040iASV50..6F201110-201211

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016740057

main90167-40057

7 parts on this diagram · 5 diagrams in section
