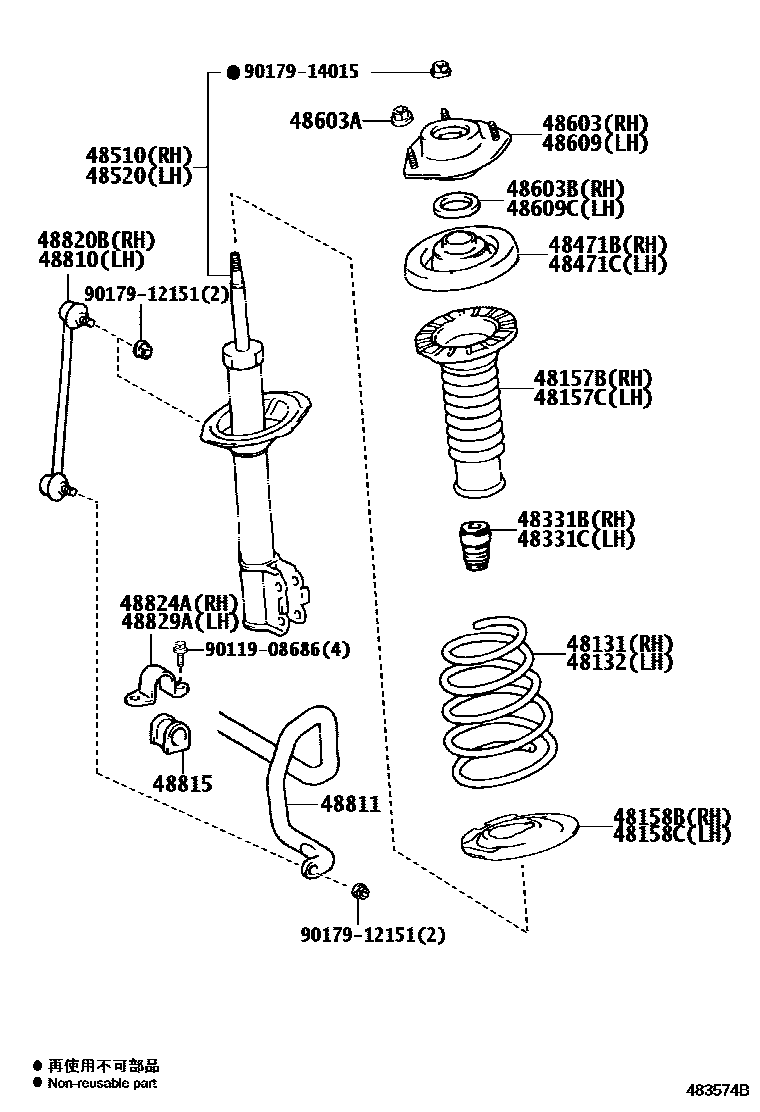

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-06D10iASV50..ALT,ATRS,GL,GLX201504

sub48131-06D70

main48131-06D30iASV50..6FC..(ATRSX,SE)201110-201504

sub48131-33B80

main48131-06D31iASV50..ATRSX201504

SUSPENSION-SPORTS

sub48131-06871

main48131-06E10iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

sub48131-06E00

main48131-06E30iGSV50..SE,SPVS201202-201504

main48131-06D20supersedes 48131-06D10iASV50..6FC..(GL,GLX)201110-201504

PAPUA NEW GUINEA/FIJI SPEC

sub48131-33B60

main48131-06E20iGSV50..GD,TOU201202-201504

PAPUA NEW GUINEA/FIJI SPEC

48132SPRING, FRONT COIL, LH

main48131-06D10iASV50..6FC..(ALT,ATRS,GL,GLX)201110-201504

sub48131-06D70

main48131-06D30iASV50..6F..SE201110-201211

sub48131-33B80

main48131-06D31iASV50..SE201504-201605

sub48131-06871

main48131-06E10iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

sub48131-06E00

main48131-06E30iGSV50..SE,SPVS201202-201504

main48131-06D20supersedes 48131-06D10iASV50..6FC..(GL,GLX)201110-201504

PAPUA NEW GUINEA/FIJI SPEC

sub48131-33B60

main48131-06E20iGSV50..GD,TOU201202-201504

PAPUA NEW GUINEA/FIJI SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06130iASV50..6F201110-201211

sub48157-06111

main48157-06191iASV50..SE201504-201605

sub48157-06201

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06130iASV50..6F201110-201211

sub48157-06111

main48157-06191iASV50..SE201504-201605

sub48157-06201

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06100iASV50..6F201110-201211

sub48158-06200

main48158-33080iASV50..SE201504-201605

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06100iASV50..6F201110-201211

sub48158-06200

main48158-33080iASV50..SE201504-201605

48331BBUMPER, FRONT SPRING, RH

main48331-33070iASV50..6F201110-201211

main48331-33071iASV50..SE201604-201605

48331CBUMPER, FRONT SPRING, LH

main48331-33070iASV50..6F201110-201211

main48331-33071iASV50..SE201604-201605

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06020iASV50..6F201110-201211

sub48471-41010

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06020iASV50..6F201110-201211

sub48471-41010

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z035iASV50..6F..(GL,GLX)201110-201211

MARK 48510-06720

main48510-8Z036iASV50..6F..SE201110-201211

MARK 48510-06730

main48510-8Z037iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

MARK 48510-06740

main48510-8Z038iGSV50..SE,SPVS201202-201504

MARK 48510-06750

main48510-8Z220iASV50..ALT,ATRS,GL,GLX201504

MARK 48510-06721

main48510-8Z221supersedes 48510-8Z222iASV50..SE201504-201605

MARK 48510-06731

main48510-8Z223iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201504

MARK 48510-06741

main48510-8Z224iGSV50..SE201504

MARK 48510-06751

main48510-8Z225iGSV50..ATX201504

MARK 48510-06891

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09V80iASV50..ALT,ATRS,GL,GLX201110-201504

MARK 48520-06720

main48520-09V90iASV50..ATRSX,SE201110-201504

MARK 48520-06730

main48520-09W10iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

MARK 48520-06740

main48520-09W20iGSV50..SE,SPVS201202-201504

MARK 48520-06750

main48520-8Z085iASV50..ALT,ATRS,GL,GLX201504

MARK 48520-06721

main48520-8Z086supersedes 48520-8Z087iASV50..SE201504-201605

MARK 48520-06731

main48520-8Z088iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201504

MARK 48520-06741

main48520-8Z089iGSV50..SE201504

MARK 48520-06751

main48520-8Z090iGSV50..ATX201504

MARK 48520-06891,SE PACKAGE

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06280iASV50..ALT,ATRS,GL,GLX201504

sub48609-06330

main48609-06290iASV50..SE201504-201605

sub48609-06260

main48609-06300iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

sub48609-06350

main48609-06370iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10017×6iASV50..6F201110-201211

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90369-T0006iASV50..SE201504-201605

sub90903-63014

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06280iASV50..6F..(GL,GLX)201110-201211

sub48609-06330

main48609-06290iASV50,GSV50..6FC..(ATRSX,SE,SPVS)201110-201504

sub48609-06260

main48609-06300iAVV50,GSV50..ATX,GD,HBD,PRD,TOU201201-201504

sub48609-06350

main48609-06370iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90369-T0006iASV50..6F201110-201211

sub90903-63014

48810LINK ASSY, FRONT STABILIZER, LH

main48820-33040iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

main48820-33070iGSV50..ATX,GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,GL,GLX,HBD201504

THAILAND SPEC

48811BAR, STABILIZER, FRONT

main48811-06180iASV50,AVV50,GSV50..ALT,ATRS,ATX,GD,GL,GLX,HBD,PRD,TOU201504

main48811-06230iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06170×2iASV50,AVV50,GSV50..ALT,ATRS,ATX,GD,GL,GLX,HBD,PRD,TOU201504

sub48815-06111

main48815-06180×2iASV50..SE201504-201510

sub48815-06140

main48815-28130×2iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33040iASV50,GSV50..ATRS,PRD201504

SUSPENSION-SPORTS

main48820-33070iGSV50..ATX,GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,GL,GLX,HBD201504

THAILAND SPEC

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06030iASV50..6F201110-201211

sub48824-26210

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06030iASV50..6F201110-201211

sub48824-26210

9011908686

main90119-08686

9017912151

main90179-12151

9017914015

main90179-14015

26 parts on this diagram · 1 diagram in section
