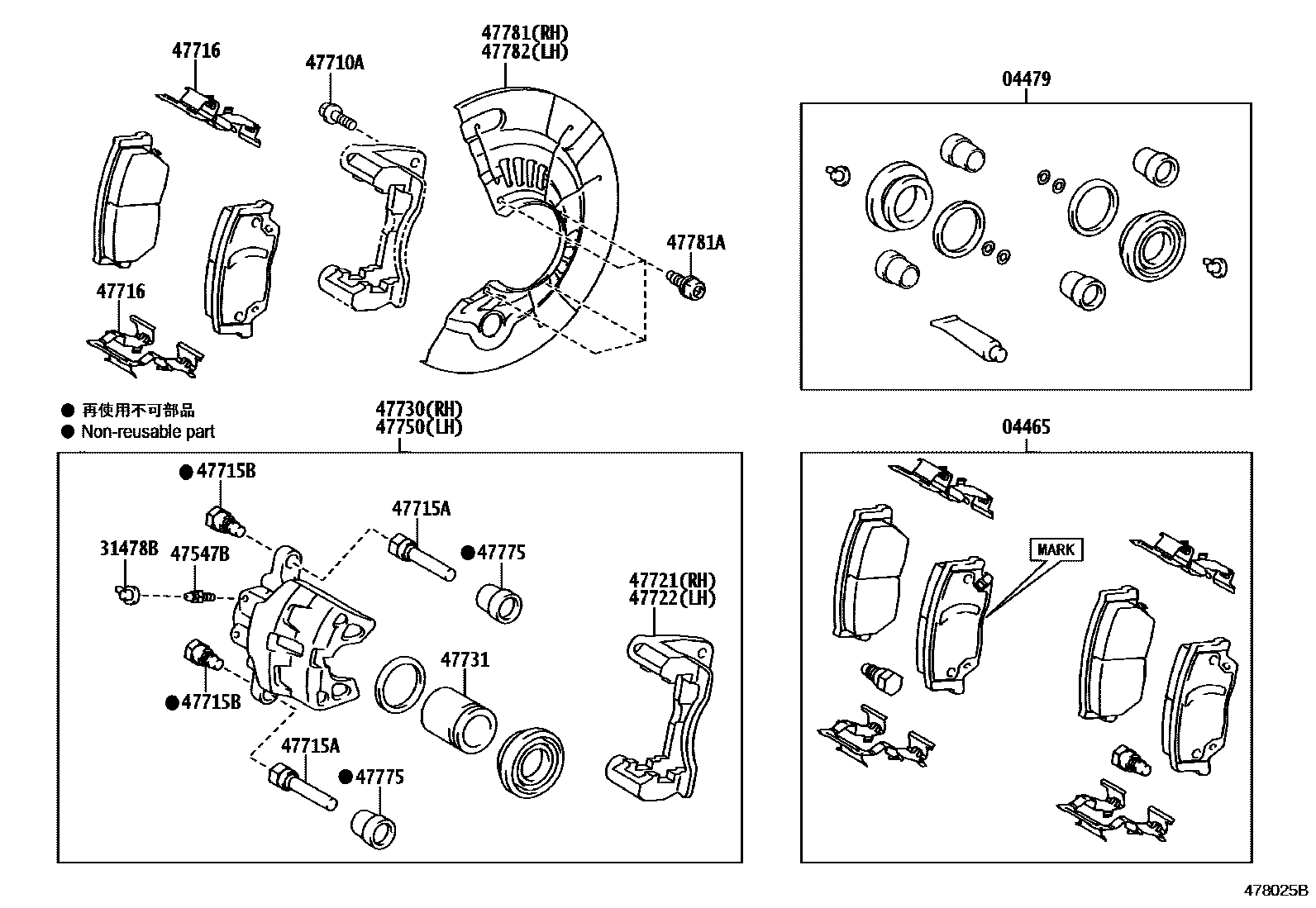

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1MARK B746-1191 0003 1MARK NBK D6911H

04465PAD KIT, DISC BRAKE, FRONT

main04465-06090iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201504

MARK B746-1191

main04465-33471iASV50,AVV50,GSV50..ATM,CVT201112-201504

MARK NBK D6911H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06200iASV50201110-201112

main04478-33150iAVV50201201-201504

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iASV50,GSV50..6FC201112-201504

NO MARK

main47548-06010×2iASV50..6F201110-201211

PBR

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06020×2iASV50..SE201504-201605

PBR

main47547-20010×2iAVV50201201-201504

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iASV50..ATRSX201504-201710

*12-1.25PX29.5-23,SE PACKAGE

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361×2iAVV50201201-201504

main47715-06120×4iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201504

PBR

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-8Y004×4iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201504

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-06100×4iASV50,GSV50..6FC201110-201504

PBR

main47718-33340×2iAVV50201201-201504

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33361iAVV50201201-201504

main47721-8Y001iASV50..SE201504-201605

PBR

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-8Y001iASV50..6F201110-201211

PBR

main47722-33361iAVV50201201-201504

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06230iASV50,GSV50..6FC201110-201504

PBR

main47730-33361iAVV50201504

47731PISTON, FRONT DISC BRAKE

main47731-33340×2iASV50..6F201112-201211

NO MARK

main47731-8Y001×2iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201504

PBR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06230iASV50,GSV50..6FC201110-201504

PBR

main47750-33361iAVV50201201-201504

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-06050×4iASV50..SE201504-201605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06140iASV50,AVV50,GSV50201110-201504

sub47781-33050

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×8iASV50,AVV50,GSV50201110-201504

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06140iASV50,AVV50,GSV50201110-201504

sub47782-33050

17 parts on this diagram · 2 diagrams in section
