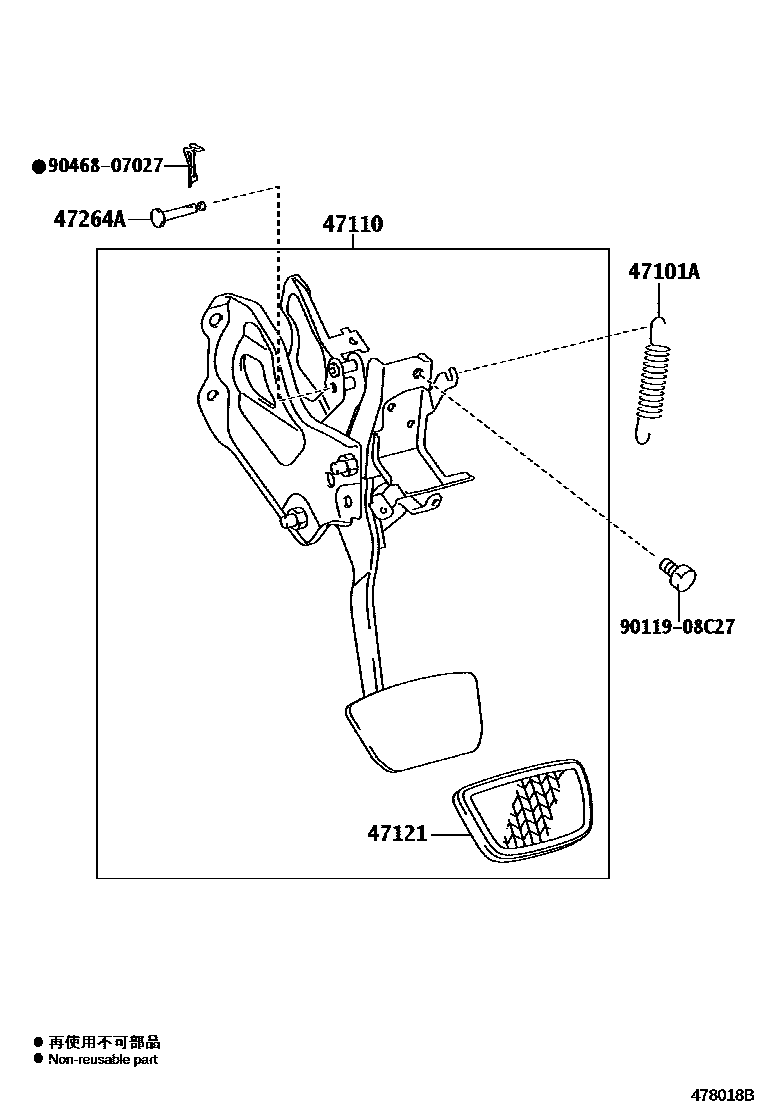

BRAKE PEDAL & BRACKET

0001 1 0003 1W/O(VSC) 0004 1W(VSC) 0005 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iASV50..6F201110-201211

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33380supersedes 47110-33400iGSV50..SE201202-201504

main47110-33381iGSV50..SE201701

main47110-33390iASV50..6FC..(GL,GLX)201110-201504

main47110-33410iASV50..6F..SE201110-201211

main47110-33420iASV50,GSV50..ATRSX,SPVS; GSV50..ATX201504-201612

SE PACKAGE

main47110-33421iASV50,GSV50..ATRSX,SPVS; GSV50..ATX201701

SE PACKAGE

main47110-33430iGSV50..GD,TOU201202-201504

main47110-33431iASV50,GSV50..GD,GL,GLX,TOU201701

main47110-33440iASV50..6F..(GL,GLX)201110-201211

main47110-33450iASV50,GSV50..ALT,ATRS,ATX,PRD201110-201504

main47110-33451iASV50,GSV50..ALT,ATRS,ATX,PRD201701

main47110-33460iAVV50201201-201203

main47110-33461iAVV50201504

47121PAD, BRAKE PEDAL

main31321-33010iASV50..6F..(GL,GLX)201110-201211

main31321-53010iASV50..6F..SE201110-201211

main47121-50020iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATX,GD,GL,GLX,HBD,PRD,TOU)201110-201504

main47121-53010iASV50,GSV50..6FC..(ATRSX,SE,SPVS)201110-201504

47264APIN(FOR PUSH ROD)

main90240-08081iASV50,AVV50..(ATM,CVT)..(GL,GLX,HBD,SE)201110-201504

main90249-06180iGSV50;ASV50..ARL201504

9011908C27

main90119-08C27

9046807027

main90468-07027

6 parts on this diagram · 4 diagrams in section
