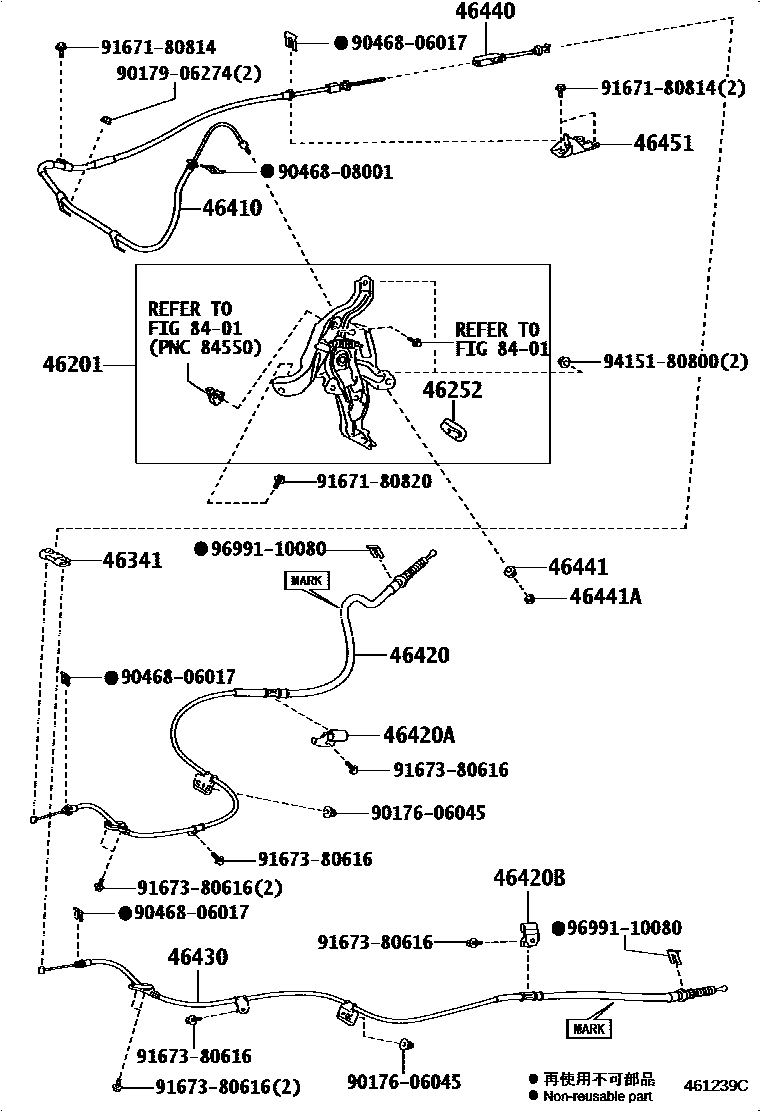

PARKING BRAKE & CABLE
46201PEDAL SUB-ASSY, PARKING BRAKE
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
MARK:TAPE=BROWN
MARK:TAPE=PINK
46420CABLE ASSY, PARKING BRAKE, NO.2
sub46420-06102
MARK:TAPE=GRAY
sub46420-06201
MARK:TAPE=BLUE
MARK:TAPE=BLUE
sub46420-33181
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
sub46430-06102
MARK:TAPE=YELLOW
sub46430-06201
MARK:TAPE=RED
sub46430-33171
MARK:TAPE=ORANGE
46440CABLE ASSY, PARKING BRAKE, NO.4
46441NUT, WIRE ADJUSTING, NO.1
46441ANUT, WIRE ADJUSTING, NO.2
46451BRACKET, CABLE SUPPORT
8401
9017606045
main90176-06045
9017906274
main90179-06274
9046806017
main90468-06017
9046808001
main90468-08001
9167180814
main91671-80814
9167180820
main91671-80820
9167380616
main91673-80616
9415180800
main94151-80800
9699110080
main96991-10080
22 parts on this diagram · 6 diagrams in section
