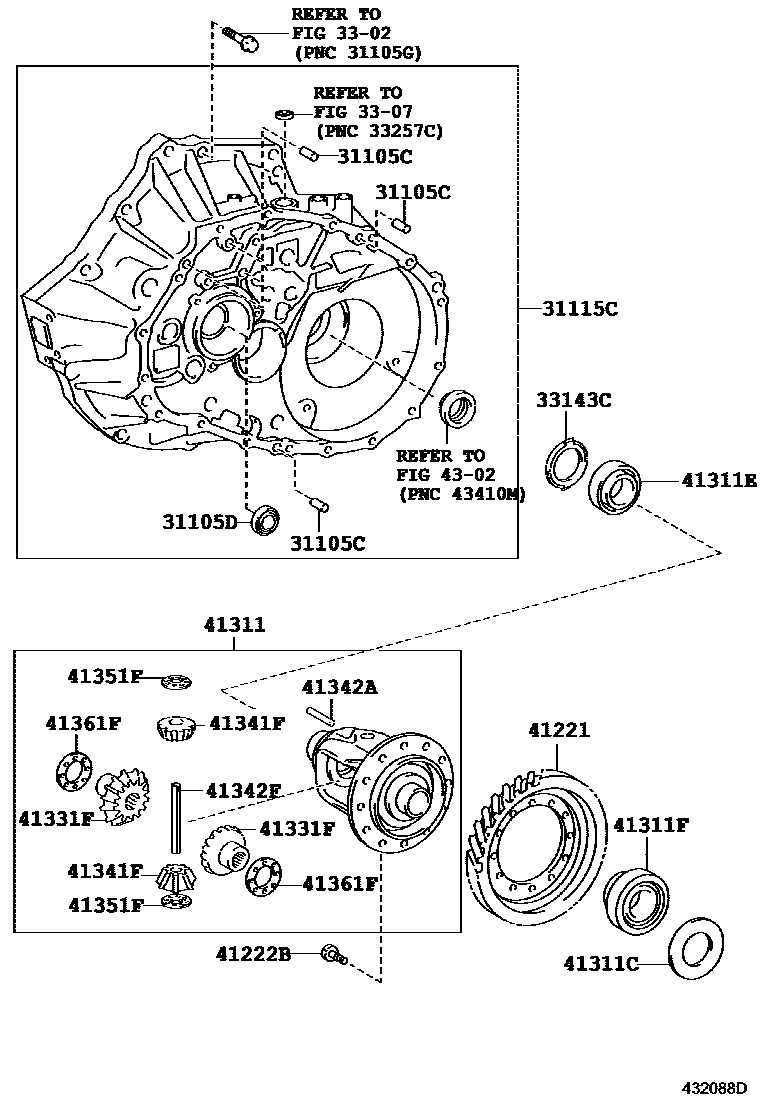

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3302
3307
33143CBAFFLE, FRONT DIFFERENTIAL OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
4302
19 parts on this diagram · 3 diagrams in section
