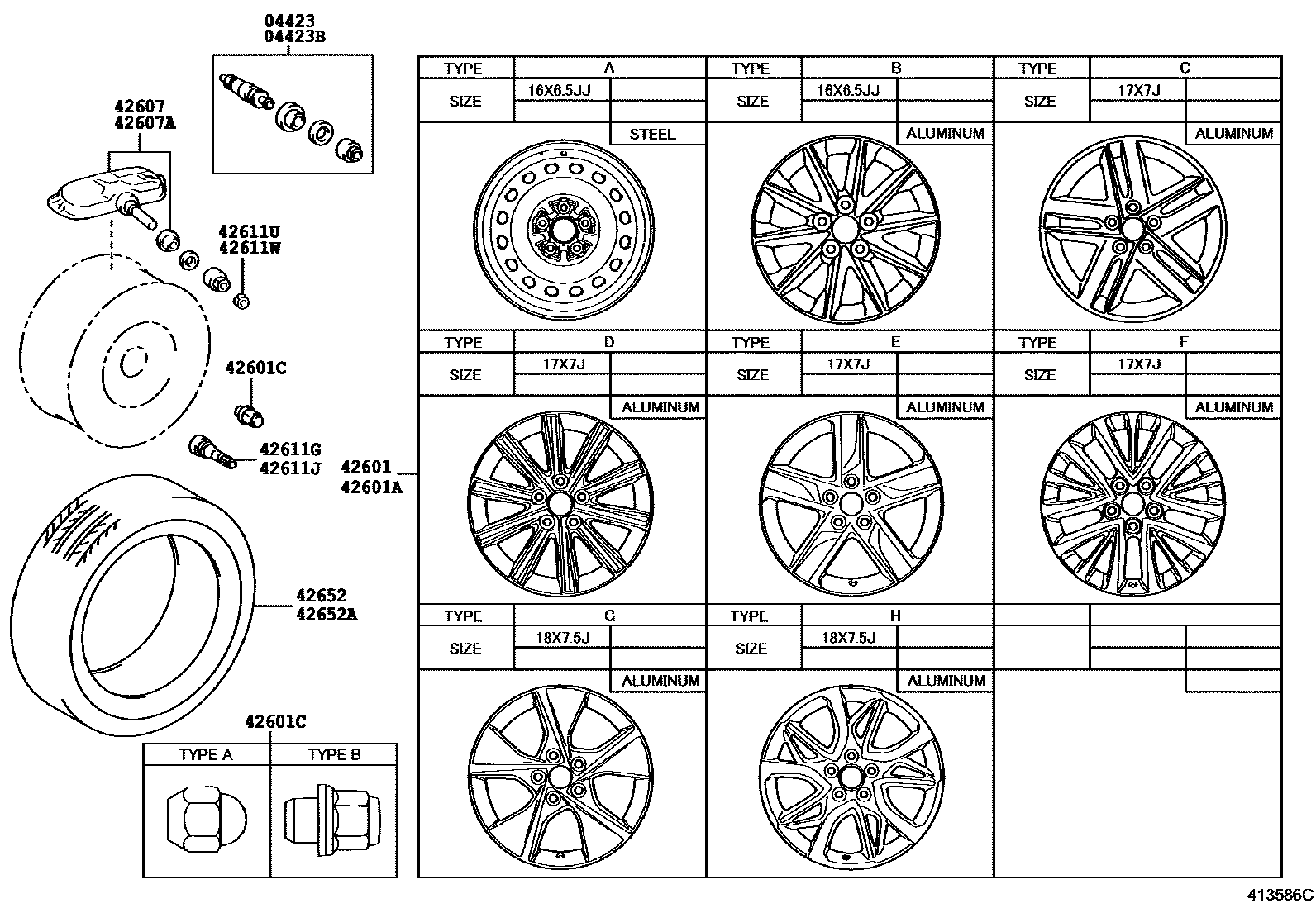

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X6.5JJ,#,TYPE A:REFER ILLUST.
16X6.5JJ,#,TYPE A:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J OS45 ALUMINUM SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-06781
16X6.5J,#,TYPE B:REFER ILLUST.
16X6.5J,#,TYPE B:REFER ILLUST.
sub42611-06A14
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J OS45 ALUMINUM SUMMER TIRE,TYPE E:REFER ILLUST.
sub42611-06A30
17X7J,#,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE G:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J OS45 ALUMI SUMMER 15-SPOKE,TYPE F:REFER ILLUST.
sub42611-33840
18X7.5J,#,TYPE H:REFER ILLUST.
18X7.5J,#,SUSPENSION-SPORTS,TYPE A:REFER ILLUST.
sub42611-06740
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J ALUMINUM BLACK,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ,#,TYPE A:REFER ILLUST.
16X6.5JJ,#,TYPE A:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J OS45 ALUMINUM SUMMER TIRE,TYPE D:REFER ILLUST.
sub42611-06781
17X7J,#,TYPE E:REFER ILLUST.
sub42611-06A30
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE A:REFER ILLUST.
sub42611-33840
17X7J,#,TIRE & DISK WHEEL-215/55R17 7J ALUMINUM BLACK,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01033×20supersedes 90942-01082iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU)201110-201504
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
(L)
(J)
(J)
42611JVALVE (FOR TUBELESS TIRE SPARE)
(L)
(J)
42611UCAP, TIRE VALVE
(J)
42611WCAP, TIRE VALVE (FOR SPARE)
(J)
42652TIRE
215/60R16,*Y/H
215/60R16,*Y/H
215/55R17,*Y/H
42652ATIRE (FOR SPARE)
215/60R16,*Y/H
215/60R16,*Y/H
215/55R17,*Y/H
13 parts on this diagram · 3 diagrams in section
