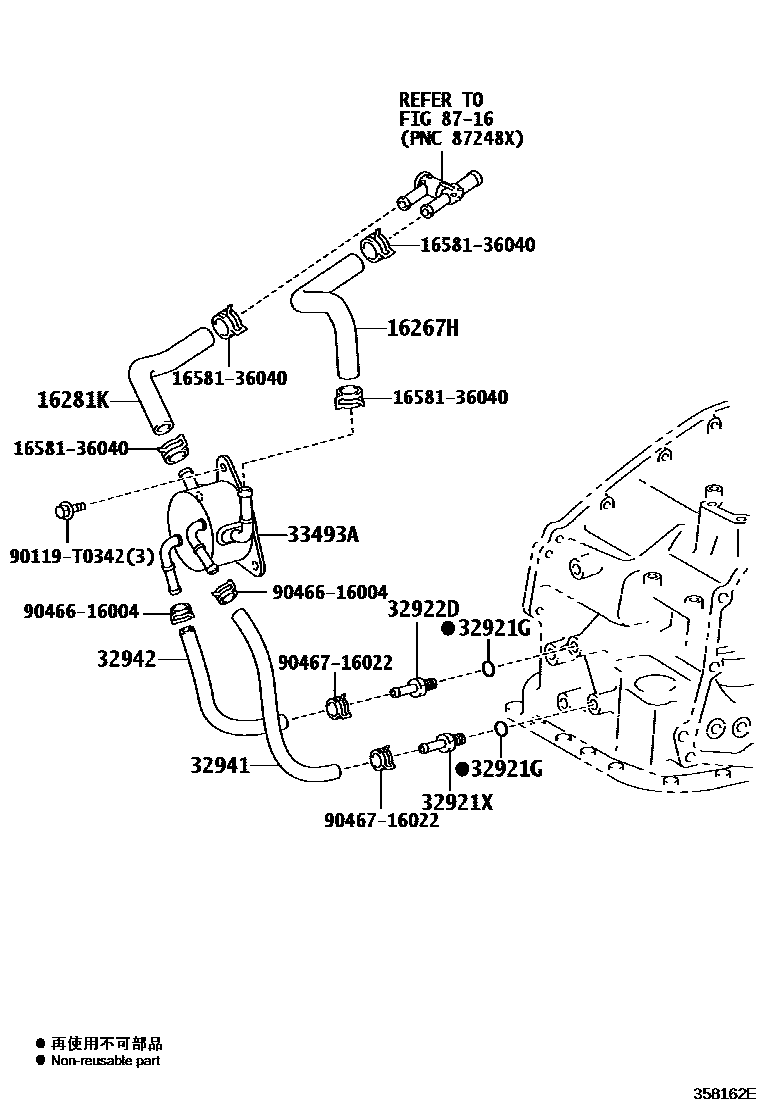

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U660E,U760E 0004 1U760E,HEAVY PACKAGE 0005 1U660E

16267HHOSE, WATER BY-PASS, NO.3

main16267-36050i2ARFE..ASV50..ARL201504

16281KHOSE, WATER BY-PASS, NO.4

main16281-36030i2ARFE..ASV50..ARL201110-201504

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031×2iASV50,GSV50..6FC201110-201504

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iASV50..SE201504-201605

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iASV50..SE201504-201605

32941HOSE, OIL COOLER INLET, NO.1

main32941-33130iASV50,GSV50..6FC..(ATX,GD,GL,GLX,PRD,SE,SPVS,TOU)201110-201504

main90445-17183iASV50..ARL201110-201504

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-33120iGSV50..ARL;ASV50..6FC..GCC201110-201504

main32942-33140iGSV50..GCC201202-201404

main32942-33141iASV50..GL; GSV50..GCC201405-201504

HEAVY PACKAGE

main90445-17100iASV50..ARL201110-201504

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33030iASV50..ARL201110-201504

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119T0342

main90119-T0342

9046616004

main90466-16004

9046716022

main90467-16022

13 parts on this diagram · 4 diagrams in section
