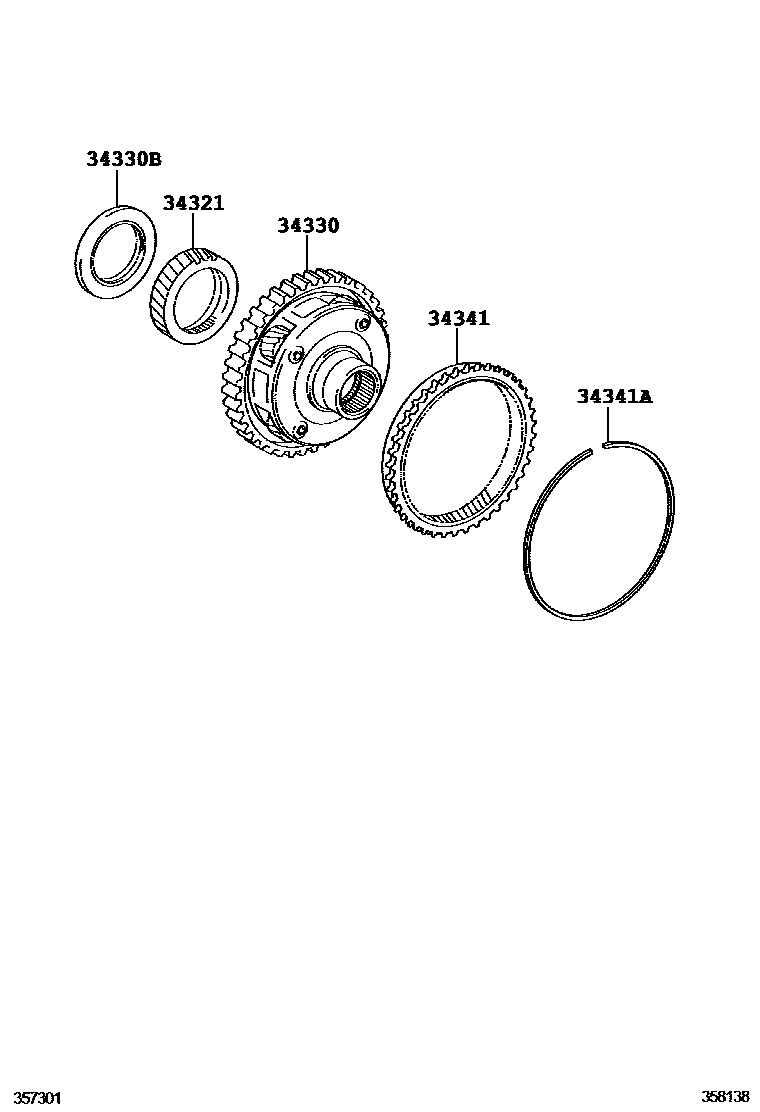

OVERDRIVE GEAR (ATM)

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-33010iGSV50201504

main34321-73010iASV50..ALT,ATRS,ATRSX,GL,GLX201504

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-33040iGSV50201202-201504

main34330-33050iASV50..6FC201110-201504

*285

main34330-73010iASV50201504

*284

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iGSV50201504

main90374-57006iASV50201401-201504

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-33030iGSV50201202-201504

main34341-33040iASV50..6FC201110-201504

*285

main34341-33050iASV50201504

*284

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201504

5 parts on this diagram · 1 diagram in section
