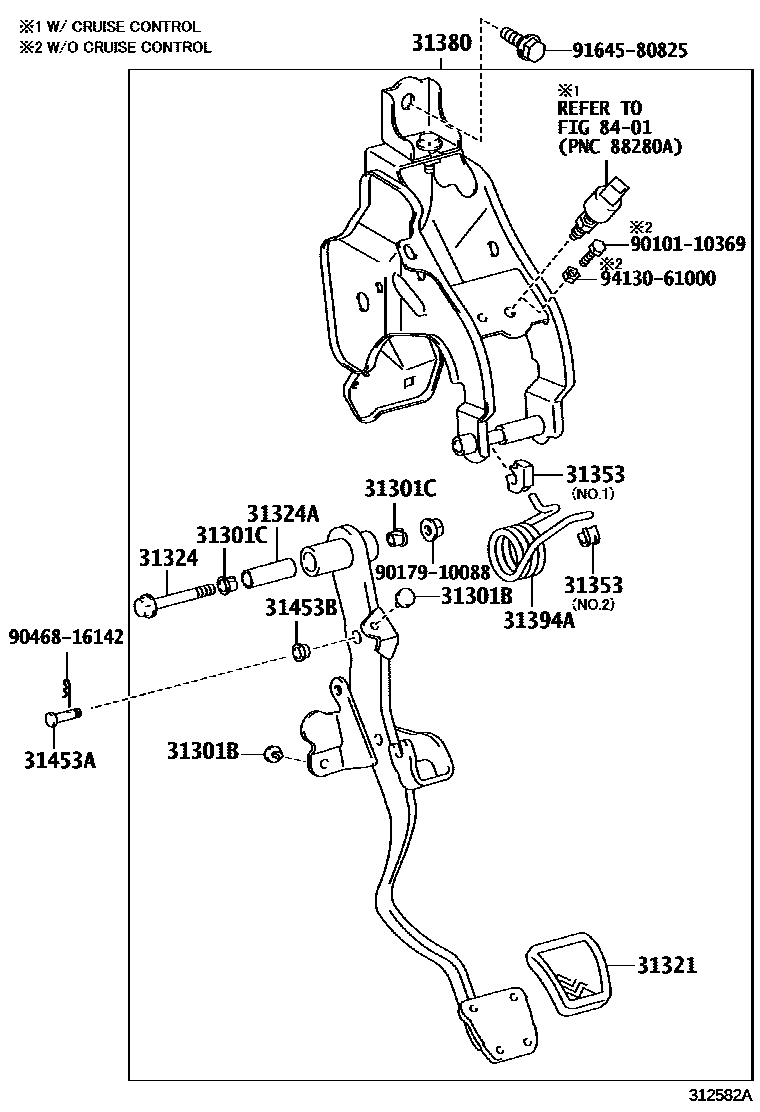

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iASV50..6F201110-201211

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iASV50..6F201110-201211

31321PAD, CLUTCH PEDAL

main31321-33010iASV50..6F..(GL,GLX)201110-201211

main31321-53010iASV50..6F..SE201110-201211

31324SHAFT, CLUTCH PEDAL

main90101-10164iASV50..6F201110-201211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iASV50..6F201110-201211

31353HOLDER, CLUTCH PEDAL SPRING

main31353-33010iASV50..6F201110-201211

NO.1

main31353-33020iASV50..6F201110-201211

NO.2

31380SUPPORT ASSY, PEDAL

main31380-06170iASV50..6F..GLX201110-201211

main31380-06180iASV50..6F..GL201110-201211

main31380-06190iASV50..6F..SE201110-201211

31394ASPRING, PEDAL W/HOOK

main31394-33060iASV50..6F201110-201211

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iASV50..6F201110-201211

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iASV50..6F201110-201211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010110369

main90101-10369

9017910088

main90179-10088

9046816142

main90468-16142

9164580825

main91645-80825

9413061000

main94130-61000

16 parts on this diagram · 2 diagrams in section
