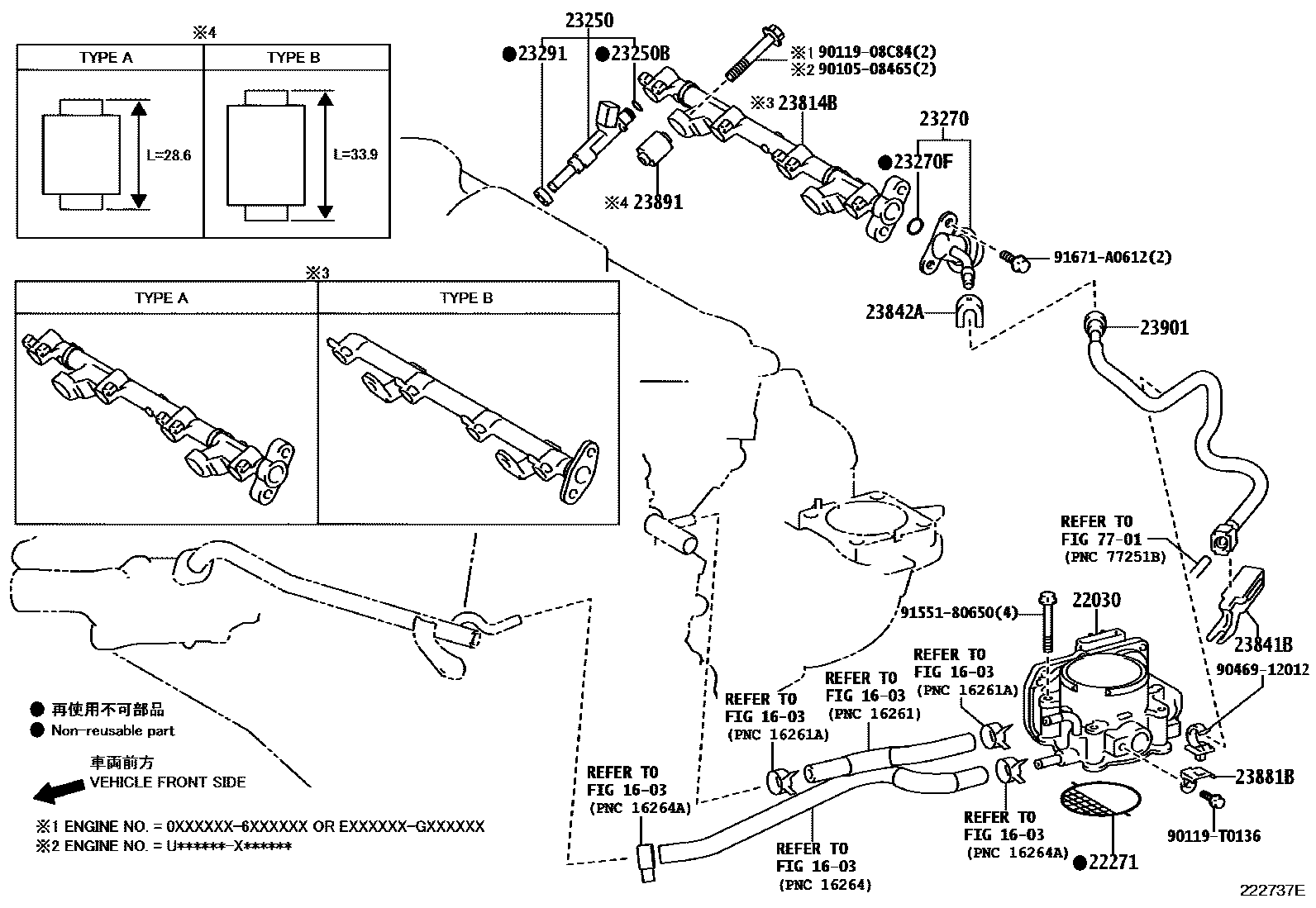

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V010i2ARFE..ASV50201212-201504

(L),*286

main22030-31030i2GRFE..GSV50201202-201504

main22030-36010i2ARFE..ASV50..ARL201110-201501

*107

main22030-36020i2ARFXE..AVV50201212-201504

*286

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSV50201202-201504

main22271-36010i2ARFE..ASV50201212-201504

*286

main22271-36020i2ARFXE..AVV50201212-201504

*286

23250INJECTOR ASSY, FUEL

main23209-09175×4i2AR#..ASV50,AVV50201212-201504

(L),*286

main23209-31090×6i2GRFE..GSV50201504

main23209-39175×4i2AR#..ASV50,AVV50..ARL201110-201501

*107

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSV50201504

main90301-07037×8i2AR#..ASV50,AVV50201212-201504

(J),*286

main90301-A0036×4i2ARFE..ASV50..SE201504-201605

(L),*286

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX; 2ARFE..ASV50..GL,GLX201504

*107; *286

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV50..6F201110-201211

*107

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSV50201504

main23291-28020×4i2ARFE..ASV50..SE201504-201605

*107,*286

23814BPIPE, FUEL DELIVERY

main23814-36010i2ARFE..ASV50..6FC201110-201504

*107T/P A:REF.ILLUST

main23814-36040i2ARFE..ASV50; 2ARFE..ASV50..GCC201501-201504

*107; *286T/P B:REF.ILLUST

main23814-36050i2ARFXE..AVV50201201-201501

*107

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i2GRFE..GSV50201202-201504

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

main23842-31040i2GRFE..GSV50201504

23881BBRACKET, FUEL HOSE

main23881-0P020i2GRFE..GSV50201202-201504

main23881-0V050i2ARFXE..AVV50201201-201208

main23881-36010i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX201504

main23881-36030i2ARFXE..AVV50201504

23891SPACER, FUEL DELIVERY

main23891-36010×2i2ARFE..ASV50; 2ARFE..ASV50..GCC201501-201504

*107; *286T/P B:REF.ILLUST

main23891-37010×2i2ARFE..ASV50..6F201110-201211

*107T/P A:REF.ILLUST

23901TUBE SUB-ASSY, FUEL

main23901-0P130i2GRFE..GSV50201202-201208

main23901-0V120i2ARFE..ASV50..6FC201208-201504

(L)

main23901-0V130i2ARFXE..AVV50201504

main23901-31160i2GRFE..GSV50201208-201504

(J)

main23901-36050i2ARFXE..AVV50201208-201504

(J)

main23901-36060i2ARFE..ASV50..6F201208-201211

(J)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010508465

main90105-08465

9011908C84

main90119-08C84

90119T0136

main90119-T0136

9046912012

main90469-12012

9155180650

main91551-80650

91671A0612

main91671-A0612

21 parts on this diagram · 3 diagrams in section
