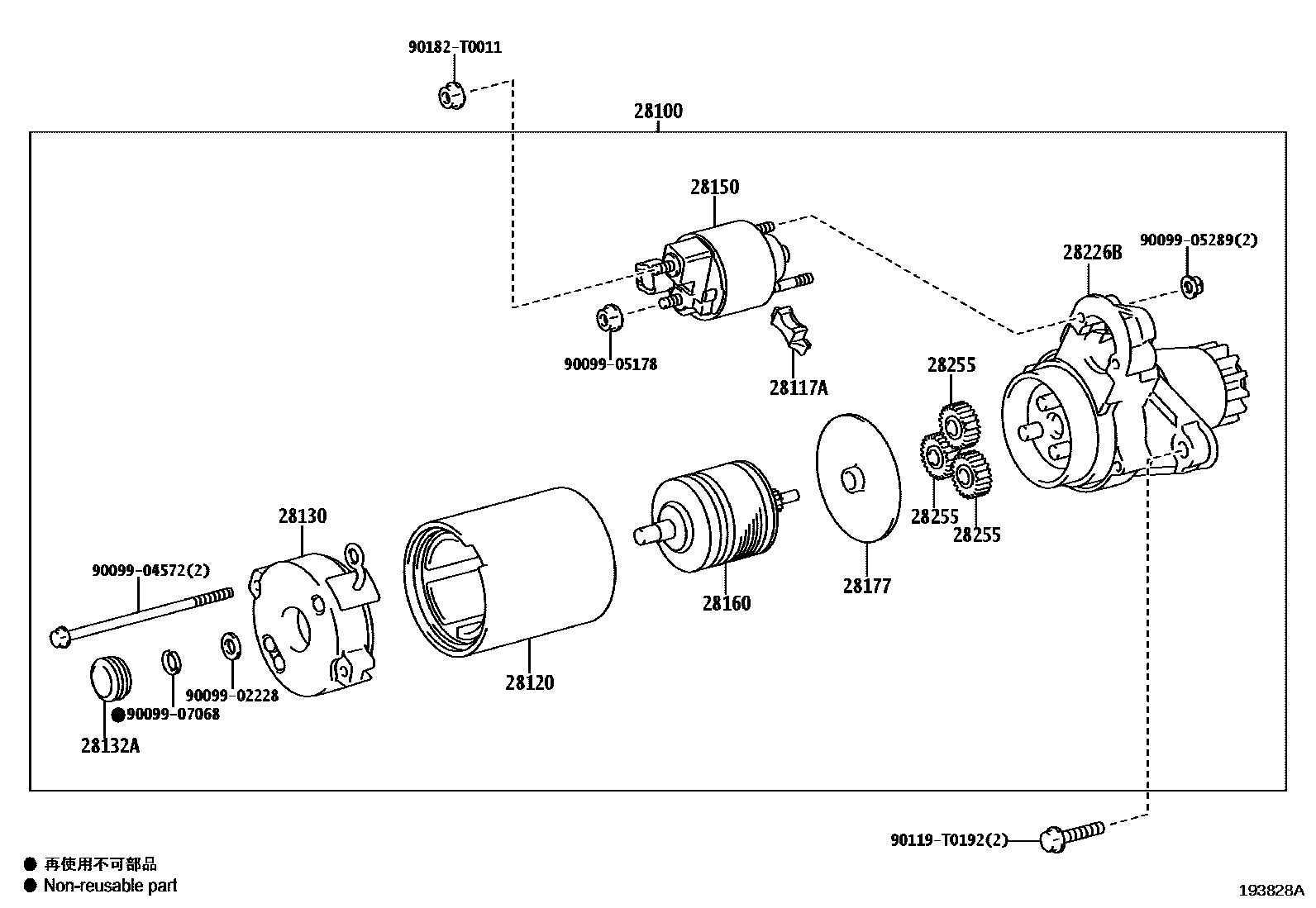

STARTER

28100STARTER ASSY

main28100-0V012i2ARFE..ASV50..6F201110-201211

12V 1.7KW

28117ASEAL, RUBBER

main28117-0P030i2ARFE..ASV50..6F201110-201211

28120YOKE ASSY, STARTER

main28120-0P030i2ARFE..ASV50..6F201110-201211

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2ARFE..ASV50..6F201110-201211

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ARFE..ASV50..6F201110-201211

28150SWITCH ASSY, MAGNET STARTER

main28150-28060i2ARFE..ASV50201110-201201

main28150-40090i2ARFE..ASV50..6F201201-201211

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE..ASV50..6F201110-201211

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ARFE..ASV50..6F201110-201211

28226BSTARTER KIT, REPAIR SERVICE

main28226-0P030i2ARFE..ASV50..6F201110-201211

28255GEAR, PLANET

main28255-0A010×3i2ARFE..ASV50..6F201110-201211

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

90119T0192

main90119-T0192

90182T0011

main90182-T0011

17 parts on this diagram · 1 diagram in section
