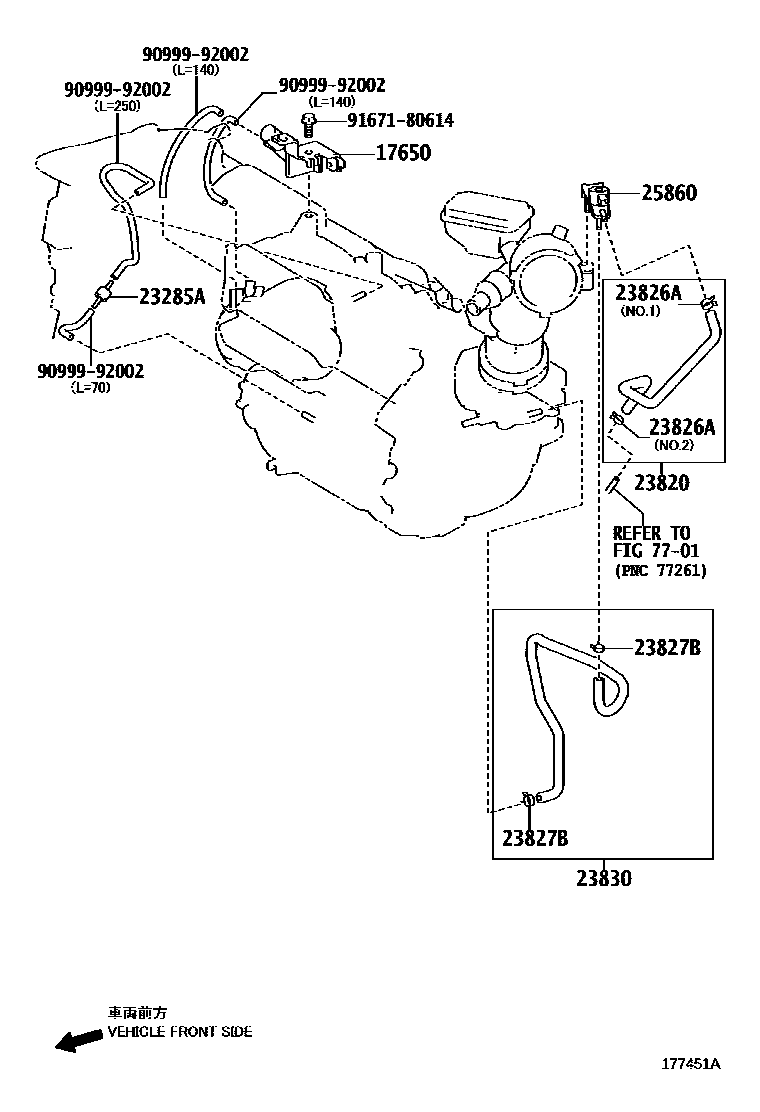

VACUUM PIPING

0001 1 0002 1 0003 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i2ARFE..ASV50201212-201504

*286

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX; 2ARFE..ASV50..GL,GLX201504

*107; *286

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0V100i2ARFXE..AVV50201504-201710

main23820-0V110i2ARFE..ASV50201110-201504

main23820-31110i2GRFE..GSV50201202-201504

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31080i2GRFE..GSV50201202-201504

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX; 2GRFE..GSV50201504

NO.1

main90466-13004i2ARFE..ASV50..6F201110-201211

NO.2

main96132-51100i2GRFE..GSV50201504

NO.2

main96132-51300i2ARFXE..AVV50201504

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i2GRFE..GSV50201202-201504

NO.1

main90466-16004i2ARFXE..AVV50201504

NO.2

main96132-51100i2GRFE..GSV50201202-201504

NO.2

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0V060i2ARFXE..AVV50201504

main23830-0V070i2ARFE..ASV50..6F201110-201211

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28160i2ARFE..ASV50..SE201504-201605

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9099992002

main90999-92002

9167180614

main91671-80614

11 parts on this diagram · 3 diagrams in section
