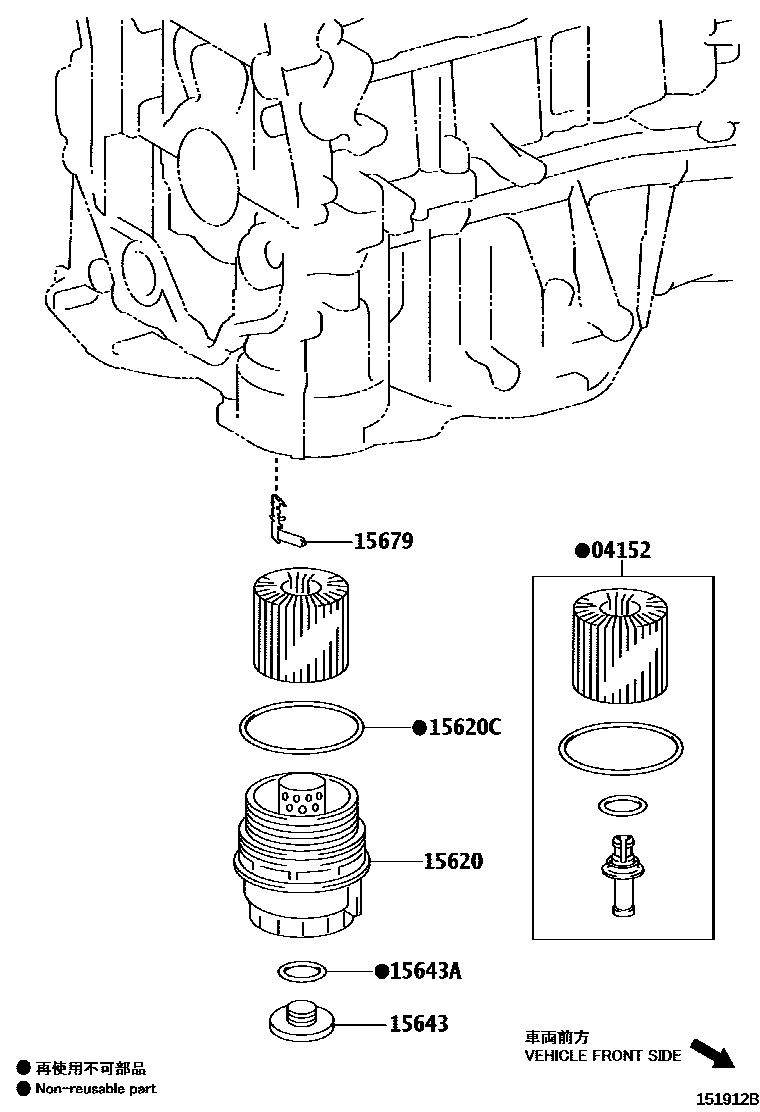

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2AR#..ASV50,AVV50..ARL201110-201504

*107

main04152-31090i2GRFE..GSV50201202-201504

main04152-31090i2AR#..ASV50,AVV50201212-201504

*286

main04152-31090i2ARFE..ASV50..SE201504-201605

*107,*286

15620CAP ASSY, OIL FILTER

main15620-31060i2GRFE..GSV50201202-201504

main15620-36020i2ARFE..ASV50..6FC..GCC201110-201504

*107

main15620-36020i2AR#..ASV50,AVV50201212-201504

*286

main15620-36020i2ARFE..ASV50..SE201504-201605

*107,*286

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201212-201504

*286

main90301-79006i2AR#..ASV50,AVV50..ARL201110-201504

*107

main90301-79006i2ARFE..ASV50..SE201504-201605

*107,*286

main96723-35028i2GRFE..GSV50201202-201504

15643PLUG, OIL FILTER DRAIN

main15643-31050i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201212-201504

*286

main15643-31050i2ARFE..ASV50..6F201110-201504

*107

main15643-31050i2GRFE..GSV50201202-201504

main15643-31050i2ARFE..ASV50..SE201504-201605

*107,*286

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-79006i2GRFE..GSV50201202-201504

main96723-35028i2AR#..ASV50,AVV50201212-201504

*286

main96723-35028i2ARFE..ASV50..SE201504-201605

*107,*286

main96723-35028i2ARFE..ASV50..GL,GLX201110-201504

*107

15679CLIP, OIL FILTER BRACKET

main15679-37010i2AR#..ASV50,AVV50..ATM,CVT201110-201408

*107

main15679-37010i2AR#..ASV50,AVV50201212-201408

*286

main15679-37011i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201409-201504

*286

main15679-37011i2AR#..ASV50,AVV50..ARL201409-201504

*107

main15679-37011i2ARFE..ASV50..SE201504-201605

*107,*286

6 parts on this diagram · 2 diagrams in section
