HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

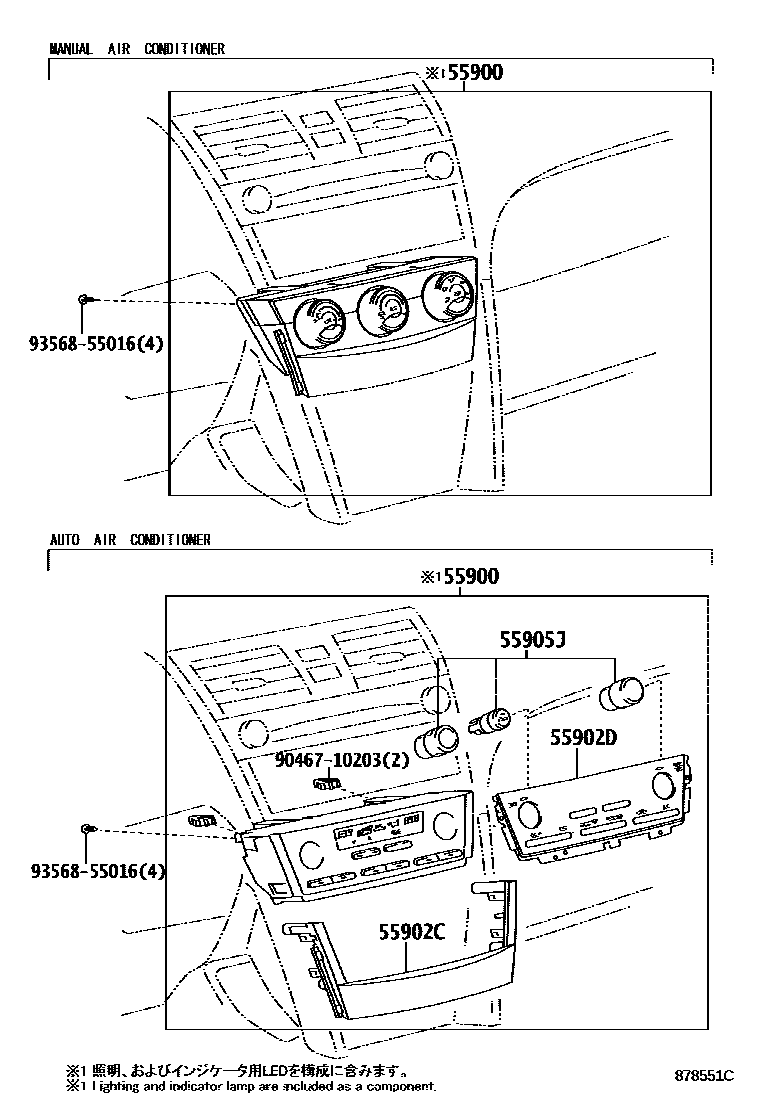

Parts diagram
55900CONTROL ASSY, AIR CONDITIONER
main55900-06190i200606-200906
LIMITED
main55900-06191i200906
LIMITED
main55900-06200supersedes 55900-06201i200610-200908
LIMITED
main55900-06210i200606-200908
main55900-06211i200906
main55900-33B80i200606-200705
main55900-33B81i200706-200905
main55900-33B90i200610-200705
main55900-33B91i200706-200905
LIMITED
main55900-33B92×2i200906-200908
LIMITED
main55900-33C00i200610-200705
main55900-33C01i200706-200905
main55900-33C02i200906-200908
main55900-33C41i200908-200909
LIMITED&AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH; LIMITED&AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)
main55900-33C42i200909
main55900-33D01i200906-200908
main55900-33D02i200909
main55900-33D11i200908-200909
main55900-33D12i200909
main55900-06201i200908
LIMITED
55902CPANEL SUB-ASSY, AIR CONDITIONER
main55902-33820i200606-200906
main55902-33850i200610-200904
main55902-33851i200908
55902DPANEL SUB-ASSY, AIR CONDITIONER
main55902-33870i200606-200905
main55902-33880i200610-200905
main55902-33A60i200909
main55902-33A70i200909
55905JKNOB SUB-ASSY, CONTROL
main55905-33220i200606-200706
main55905-33240i200706-200908
LIMITED
9046710203
main90467-10203
9356855016
main93568-55016

6 parts on this diagram · 5 diagrams in section
