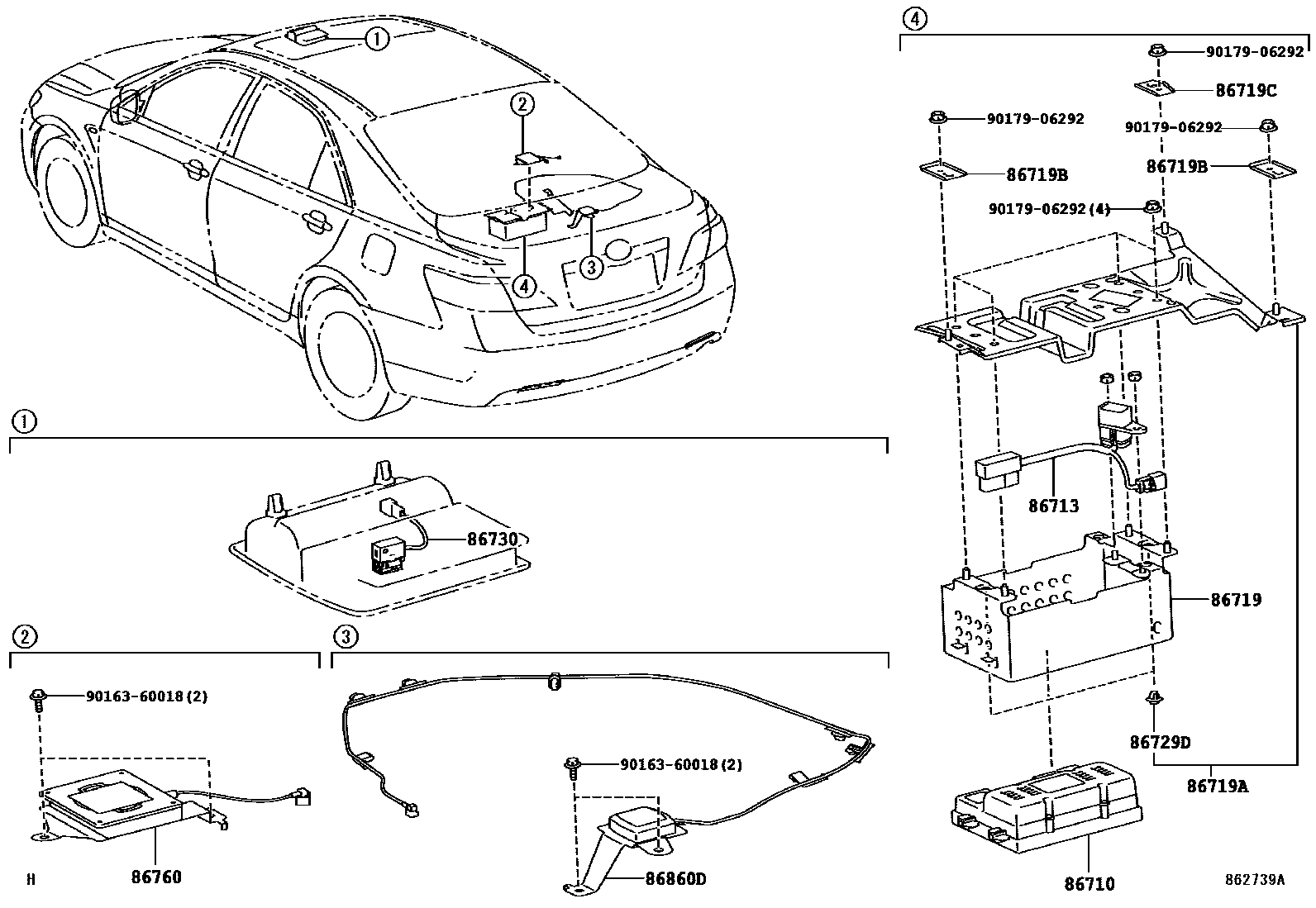

TELEPHONE & MAYDAY

86710COMPUTER ASSY, TELEPHONE

main86710-YY070iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86713WIRE, TELEPHONE COMPUTER

main86713-YY020iGSV40..PRE200908

WITH(MAYDAY:TELEMATICS)

86719BRACKET, TELEPHONE

main86719-YY020iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86719ABRACKET, TELEPHONE NO.1

main86719-YY060iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86719BBRACKET, TELEPHONE NO.2

main86719-YY070×2iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86719CBRACKET, TELEPHONE NO.3

main86719-YY080iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86729DCLIP, MOBILEPHONE BRACKET, NO.1

main76817-YC010×2iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86730MICROPHONE ASSY, TELEPHONE

main86730-33070iACV40,AHV40,GSV40..ARL; ACV40,GSV40..ALT,ATEVA,ATX,PRD,SPV,SPVS200906-201110

AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)&BACK MONITOR-WITH

main86730-73010iACV40,GSV40..(GD,GLX,SE)..GCC; ACV40,GSV40..(GD,SE)..GCC; ACV40..GLX,SE200906-201110

AUDIO-AVN,6SPEAKER; AUDIO-AVN,6SPEAKER&BACK MONITOR-WITH

main86730-33020iGSV40..SPVZ200610-200908

AUDIO-AVN UNI 6SPEAKER BLUETOOTH

86760ANTENNA ASSY, TELEPHONE

main86760-YY030iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

86860DANTENNA, NAVIGATION

main86860-YY030iGSV40..PRE200610-200908

WITH(MAYDAY:TELEMATICS)

9016360018

main90163-60018

9017906292

main90179-06292

12 parts on this diagram · 1 diagram in section
