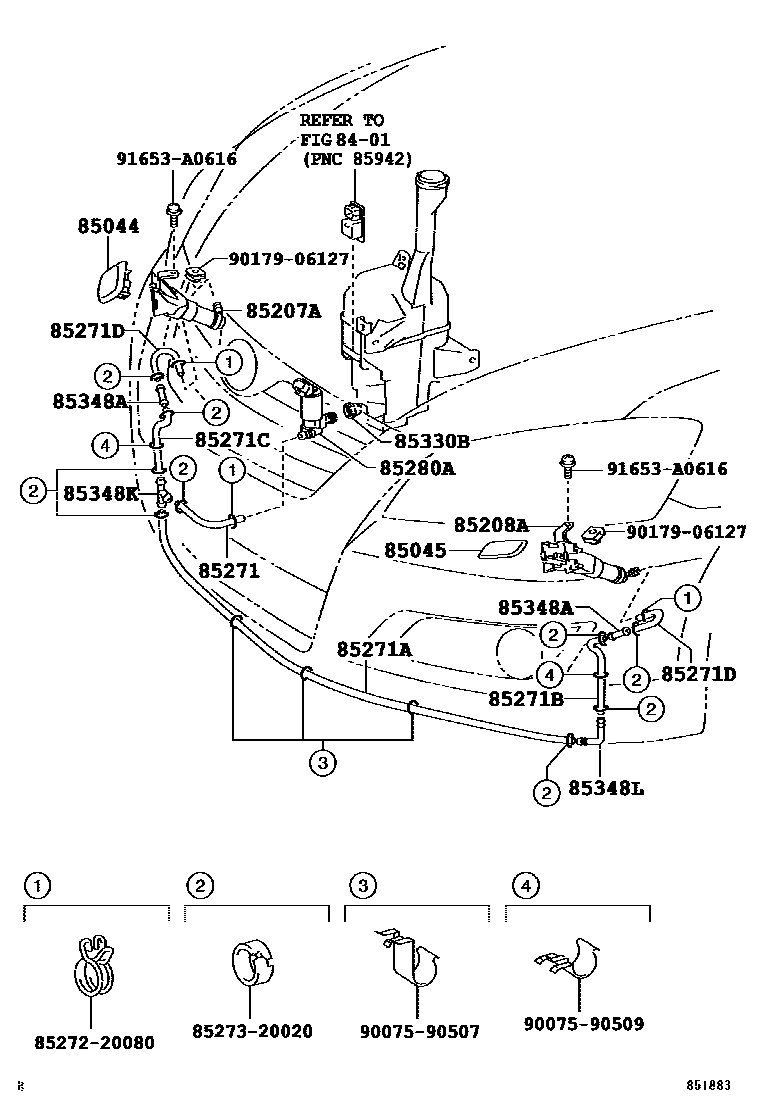

HEADLAMP CLEANER

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85381-06120iGSV40..GD,PRE200610-200908

main85381-06130iGSV40..GD,PRE200908

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85382-06040iGSV40..GD,PRE200610-200908

main85382-06060iGSV40..GD,PRE200908

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-33050iGSV40..GD,PRE200610-200908

main85207-33070iGSV40..GD,PRE200908-201110

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-33050iGSV40..GD,PRE200610-200908

main85208-33070iGSV40..GD,PRE200908-201110

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-42020iGSV40..GD,PRE200908

main85343-95700iGSV40..GD,PRE200610-200908

L=135

85271AHOSE, HEADLAMP CLEANER, NO.2

main85278-33050iGSV40..GD,PRE200610-200908

85271BHOSE, HEADLAMP CLEANER, NO.3

main85276-06030iGSV40..GD,PRE200908

main85276-33050iGSV40..GD,PRE200610-200908

85271CHOSE, HEADLAMP CLEANER, NO.4

main85275-06030iGSV40..GD,PRE200908

main85277-33050iGSV40..GD,PRE200610-200908

85271DHOSE, HEADLAMP CLEANER, NO.5

main85271-14100×2iGSV40..GD,PRE200610-200908

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040iGSV40..GD,PRE200610-200908

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGSV40..GD,PRE200610-200908

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85379-89131×2iGSV40..GD,PRE200610-200908

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85352-12010iGSV40..GD,PRE200610-200908

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85379-22080iGSV40..GD,PRE200610-200908

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007590507

main90075-90507

9007590509

main90075-90509

9017906127

main90179-06127

91653A0616

main91653-A0616

21 parts on this diagram · 2 diagrams in section
