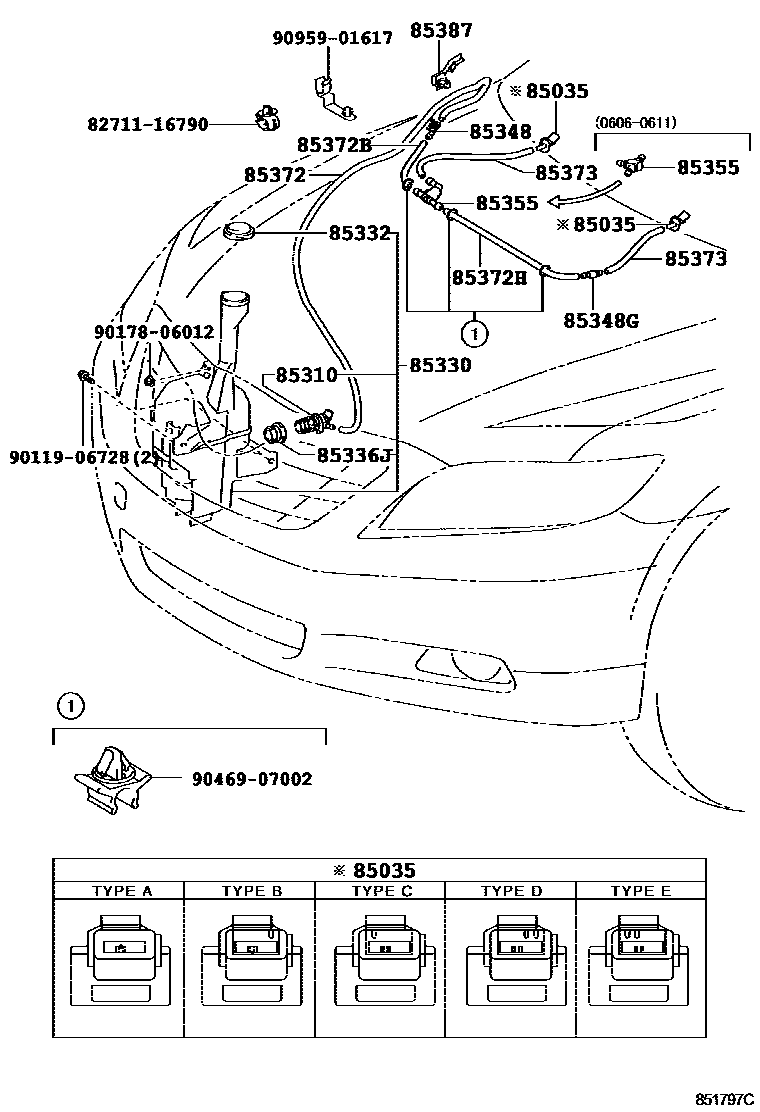

WINDSHIELD WASHER

0001 1 0003 1W(HEADLAMP CLEANER) 0004 1 0006 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-30110×2iACV40,AHV40,GSV40200906

TYPE A:REFER ILLUST.

main85381-30130×2iACV40,AHV40,GSV40200906

TYPE B:REFER ILLUST.

main85381-30140×2iACV40,AHV40,GSV40200906

TYPE C:REFER ILLUST.

main85381-30150×2iGSV40200606-200908

TYPE D:REFER ILLUST.

main85381-30160×2iACV40200611-200906

TYPE E:REFER ILLUST.

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iACV40200606-200906

85330JAR ASSY, WINDSHIELD WASHER

main85310-06170iACV40200606-200906

main85355-33110iGSV40..GD,PRE200610-200908

85332CAP, WINDSHIELD WASHER JAR

main85316-33320iGSV40..GD,PRE200610-200908

main85386-60050iACV40,AHV40;GSV40..ATX,PRD,SPVS,SPVZ,TOU200906

85336JPROTECTOR, WASHER JAR

main85336-60300iACV40,AHV40,GSV40200906

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-20800iACV40200611-200906

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iACV40,GSV40200606-200908

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGSV40200611-200908

main85321-30080iACV40200606-200610

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iACV40,GSV40200902-200908

L=1450(*H,L=100)

main90099-33803iACV40,GSV40200606-200908

L=1530

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iACV40,GSV40200606-200908

L=1800(*H,L=1000)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iACV40,GSV40200606-200908

L=1800(*H,L=1000)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×10iACV40200606-200610

L=1450(*H,L=240)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-33080iACV40200606-200610

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906728

main90119-06728

9017806012

main90178-06012

9046907002

main90469-07002

9095901617

main90959-01617

18 parts on this diagram · 4 diagrams in section
